Huawei EchoLife EG8020P (98030936) ONU 2GE PoE Ports 1 GPON Port

USD

5 5/5.0 Reviews Q/A 4 Sold/Mon
Detail:	Huawei EchoLife EG8020P ONU, 2GE PoE ports, 1 GPON port
Model:	EchoLife EG8020P (98030936)
Condition:	Factory Sealed New
Related:
Warranty:	3-Years Warranty 100% Money-back Free After-Sales Service
Shipping:	Air Shipping to United States , Most Customers Receive during 5-7 Days ? If you finish the payment today, your order will arrive within the estimated delivery time.
Ships to: 0.57	2-7 Days US$
Payment:	Pay by wire transfer. Pay with your paypal. Pay with your Visa credit card. Pay with your Mastercard credit card. Pay with your Discover Card. Pay by Western Union. More

Description
Specification
Reviews
Q&A
Warranty
Download

Overview

The Huawei EchoLife EG8020P is a panel type ONU used in Huawei’s Agile POL Solution. It can be simply and quickly installated on 86-type junction box. It utilizes GPON technology to provide ultra-broadband access for enterprise campuses. It provides one GPON port on the upstream, and also provides 2 GE ports to support PoE functions. The high forwarding performance ensures the user experience with VOIP, Internet, and HD video services.

Quick Specification

Table 1 shows the Quick Specification.

Model	EchoLife EG8020P
Dimensions (H × W × D)	Device: 125mm x 86mm x 30mm Power adapter: 68.5mm x 46.5mm x 33mm
Weight	Device: about 185g Power adapter: about 155g
Operating temperature	-5℃ to 40℃
Operating humidity	5%RH to 95%RH, non-condensing
Power adapter input	100V to 240V AC, 50/60 Hz
UNI	2*GE
NNI	1*GPON
Static power consumption*	4.5W
Maximum power consumption*	6.5

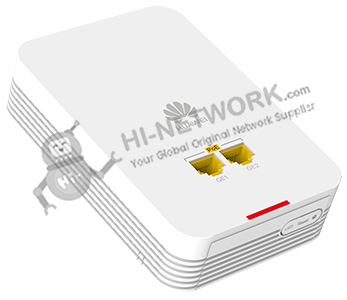

Figure 1 shows the appearance of EchoLife EG8020P.

front-echolife-eg8020p-datasheet

Product Details

Port Parameters

GPON Port

● SC/APC connector

● Class B+

Receiver sensitivity: -27dBm

Overload optical power: -8dBm

● Transmission rate (unit: Gbit/s)

GPON: downstream 2.488, upstream 1.244

● Type B single-homing

● Type B dual-homing (supported in Layer 2 forwarding)

Ethernet Electrical Port

● PoE & PoE+, complying with IEEE 802.3af & IEEE 802.3at

● RJ-45 connector

● Auto ports speed (10/100/1000 Mbit/s)

● Auto-MDI/MDIX

● Configuration of the number of MAC addresses learned on an Ethernet port

● Ethernet port-based VLAN transparent transmission and filtering

Product Function

Automatic Service Provisioning

● Authentication exemption

● XML/OMCI/TR069

Smart O&M

● XML / Web UI

● eSight management

● Rogue ONT detection and self-regulation

● Ring network detection

● PPPoE /DHCP emulation testing

Layer 3 Features

● Default/Static/Policy/Service routes

● VLAN binding

● ALG/UPnP/ARP

● DDNS/DMZ/DNS/NAPT

● PPPoE/Static IP/DHCP

● Port mapping/Port trigger

Layer 2 Management

● DHCP Option82

● PITP

● BPDU transparent transmission

● LLDP/LLDP-MED

Multicast

● IGMP v2/v3 snooping

● Dynamic controllable multicast

● MLDv1/MLDv2 snooping

QoS

● Ethernet port rate limitation

● 802.1p priority

● SP/WRR/SP+WRR

Security

● Filtering based on MAC/IP/URL

● DoS/ARP anti-attacks

● Session number restriction

● Device access control

● Support three authentication methods for PEAP/TTLS/TLS of 802.1x

Humanized design

● Support one button to turn off all LEDs

Get More Information

Do you have any question about the EchoLife EG8020P?

Specific Data Sheet:

EchoLife EG8020P Specification
Dimensions (H × W × D)	Device: 125mm x 86mm x 30mm Power adapter: 68.5mm x 46.5mm x 33mm
Weight	Device: about 185g Power adapter: about 155g
Operating temperature	-5℃ to 40℃
Operating humidity	5%RH to 95%RH, non-condensing
Power adapter input	100V to 240V AC, 50/60 Hz
UNI	2*GE
NNI	1*GPON
Static power consumption*	4.5W
Maximum power consumption*	6.5
Maximum PoE output power	Gross power 30W, number 1 and 2 GE ports support up to 30W.
Surge protection specifications	GE port: common mode 4 kV; differential mode 0.5 kV AC power supply: common mode 6 kV; differential mode 6 kV
Installation mode	Support the 86-type junction box or the standard junction box (D x W x H: 110 mm x 125 mm x 30 mm) mounting.
Compliance certification	CE/CCC/RCM/C-tick
GPON Port	● SC/APC connector ● Class B+ ● Receiver sensitivity: -27 dBm ● Overload optical power: -8 dBm ● GPON transmission rate (unit: Gbit/s): downstream 2.488, upstream 1.244 ● Type B single-homing ● Type B dual-homing (supported in Layer 2 forwarding)
Ethernet Electrical Port	● PoE & PoE+, complying with IEEE 802.3af and IEEE 802.3at ● RJ-45 connector ● Auto ports speed (10, 100, 1000 Mbit/s) ● Auto-MDI/MDIX ● Configuration of the number of MAC addresses learned on an Ethernet port ● Ethernet port-based VLAN transparent transmission and filtering
