Part Number

02312YCQ

Description

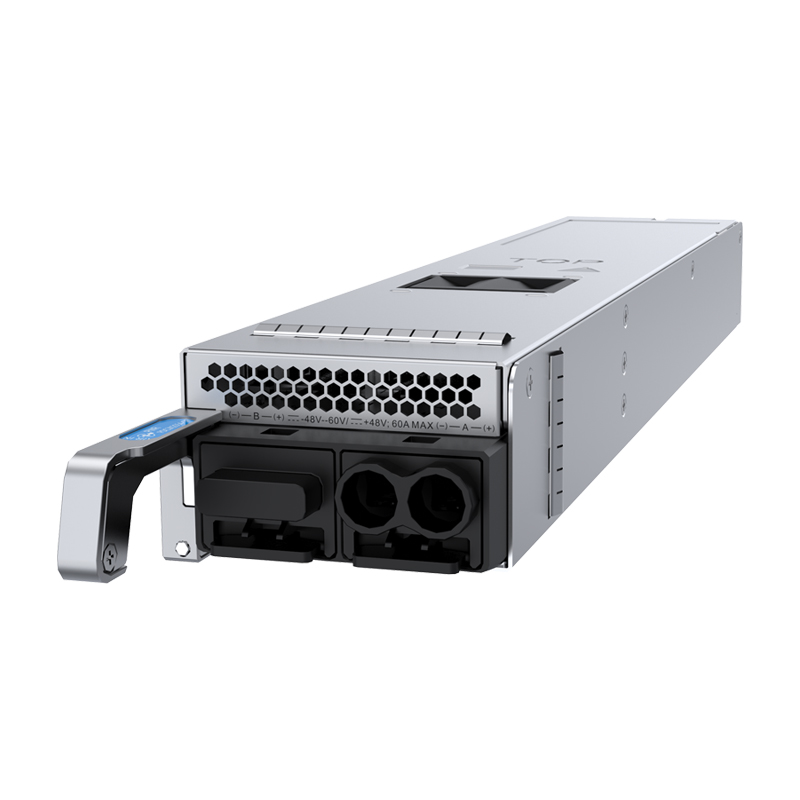

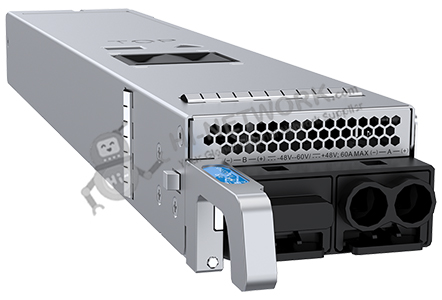

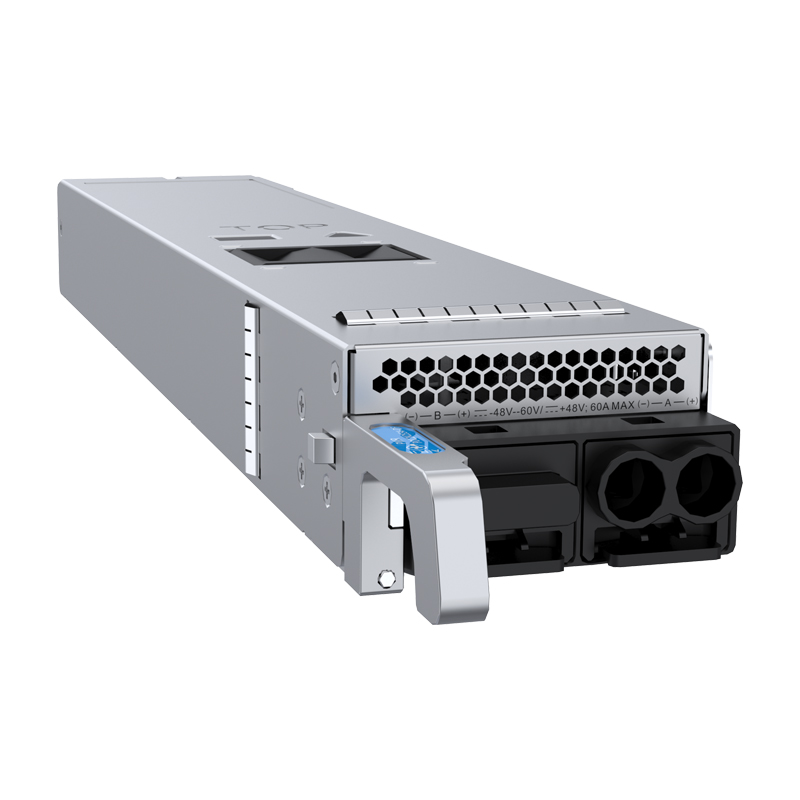

2200 W DC Power Module (Front to Back, Power panel side intake)

Dimensions without packaging (H x W x D) [mm(in.)]

39.6 mm x 66 mm x 350 mm (1.56 in. x 2.60 in. x 13.78 in.)

Weight without packaging [kg(lb)]

1.5 (3.31)

Number of inputs

1 or 2

Rated input voltage [V]

-48 V DC/-60 V DC/48 V DC

Rated output power [W]

2200 W

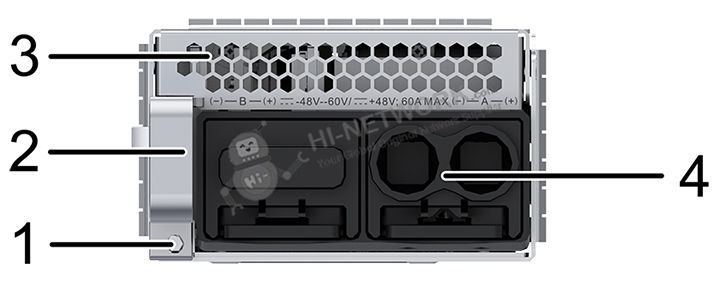

(2)

Handle

(4)

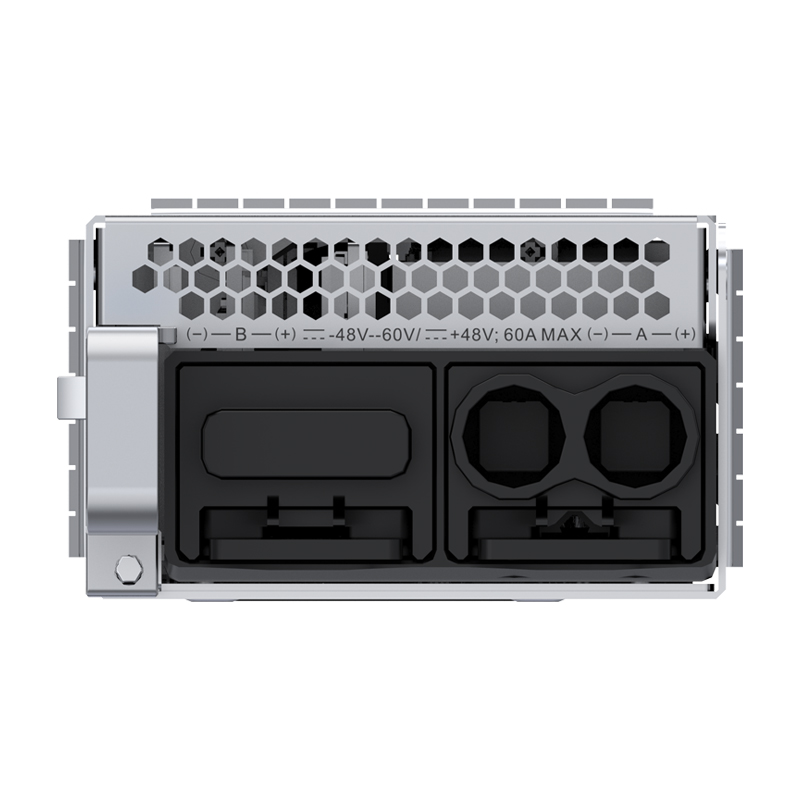

Power socket (two inputs A and B)

-

Running status indicator

Green

Steady on

The power module is working properly.

Green

Fast blinking (4 Hz)

Online loading

Green

Slow blinking (1 Hz)

The power module is powered on but not inserted into the system.

Red

Steady on

Fan faults, power overtemperature protection, power output overcurrent protection, power output short-circuit protection, power output overvoltage protection, and power input undervoltage protection

-

Steady off

There is no power input, the auxiliary power source does not work.

Input undervoltage protection

In this protection state, the power module is turned off and stops supplying power. When the system recovers from input undervoltage, the power module can automatically resume power supply.

Input overcurrent protection

In this protection state, the power module is turned off and stops supplying power. When the system recovers from input overcurrent, the power module cannot automatically resume power supply and needs to be replaced.

Output overvoltage protection

● If output overvoltage is caused by the power module itself, the power module is turned off and stops supplying power. The power module cannot automatically resume power supply.
● If output overvoltage is caused by increase of the input voltage received from the external power source, the power module is turned off and stops supplying power. When the system recovers from output overvoltage, the power module can automatically resume power supply.

Output overcurrent protection

In this protection state, the output current is limited to a certain value. When the system recovers from output overcurrent, the power module can automatically resume power supply.

Output short-circuit protection

In this protection state, the power module supplies power intermittently, and the output current is limited within a range. When the system recovers from output short-circuit, the power module can automatically resume power supply.

Overtemperature protection

When the temperature of the power module exceeds a specified threshold, the power module stops supplying power. When the temperature falls into the normal range, the power module automatically resumes power supply.
