Model

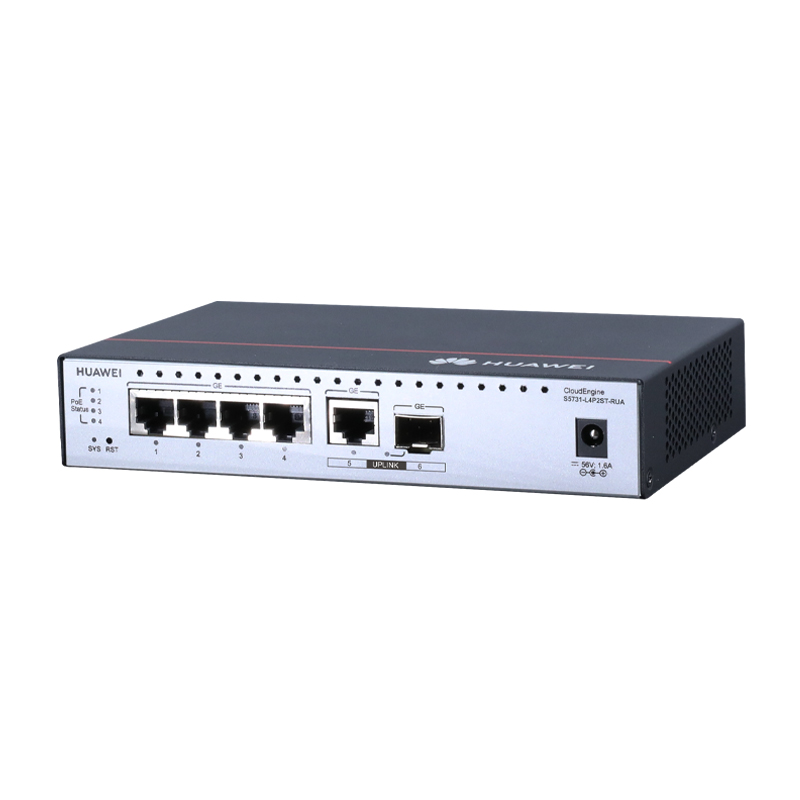

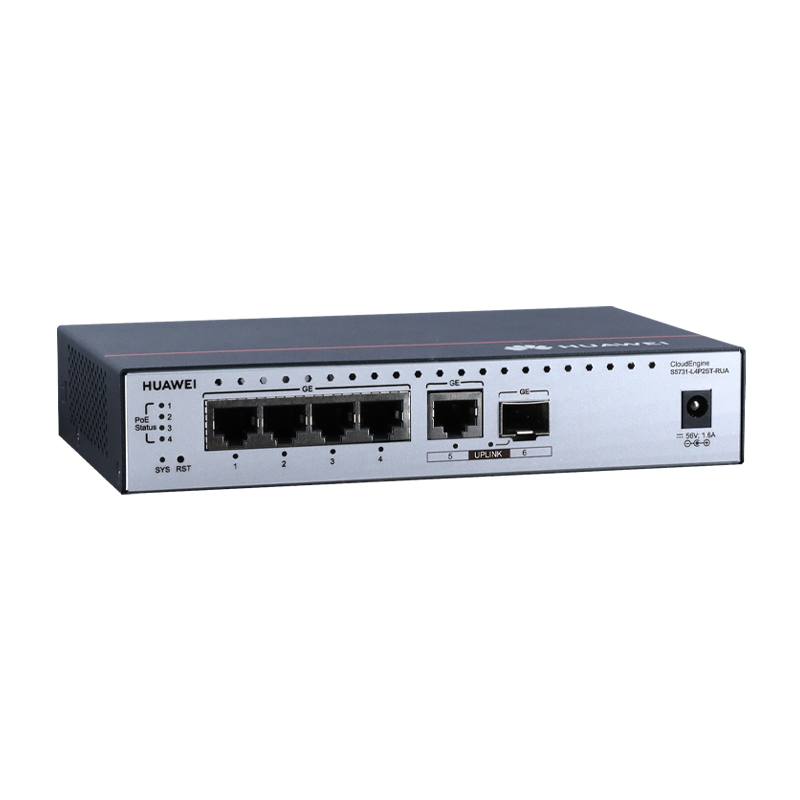

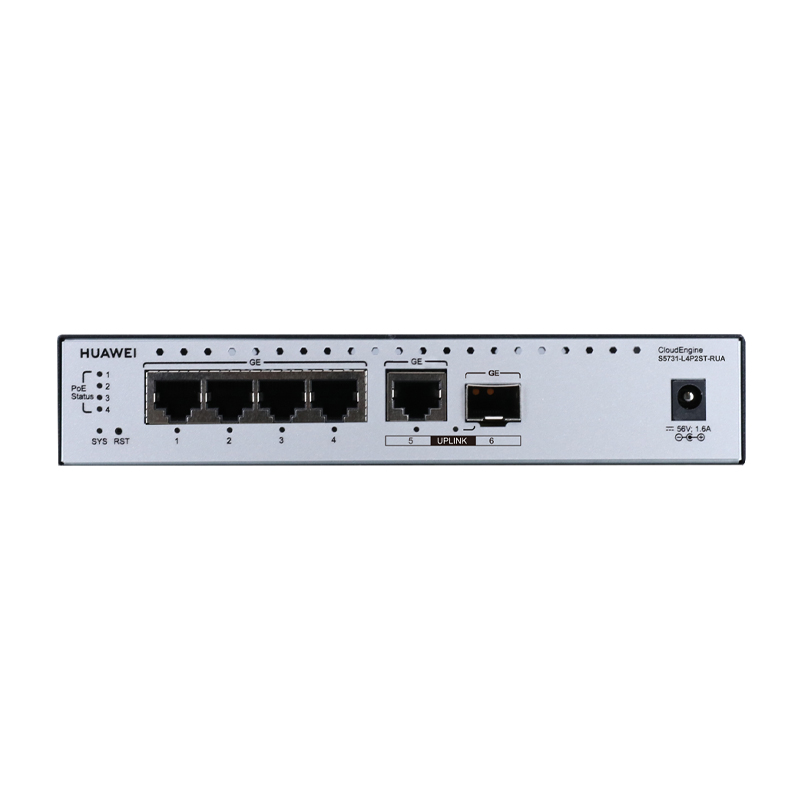

S5731-L4P2ST-RUA

Part Number

98011774

Description

S5731-L4P2ST-RUA (4*10/100/1000BASE-T ports, PoE++, 1*GE SFP port, 1*10/100/1000BASE-T port, AC power, power adapter)

Dimensions without packaging (H x W x D) [mm(in.)]

Basic dimensions (excluding the parts protruding from the body): 38.0 mm x 185.0 mm x 115.0 mm (1.5 in. x 7.28 in. x 4.53 in.)

Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 38.0 mm x 185.0 mm x 115.0 mm (1.5 in. x 7.28 in. x 4.53 in.)

Dimensions with packaging (H x W x D) [mm(in.)]

82.0 mm x 350.0 mm x 222.0 mm (3.23 in. x 13.78 in. x 8.74 in.)

Chassis height [U]

0.855 U

Weight without packaging [kg(lb)]

1.14 kg (2.51 lb)

Weight with packaging [kg(lb)]

1.46 kg (3.22 lb)

Typical power consumption [W]

6.80 W (device)

7.68 W (device + power adapter)

Typical heat dissipation [BTU/hour]

23.20 (device)

26.21 (device + power adapter)

Maximum power consumption [W]

Without PoE: 7.00 W (device)/7.88 W (device + power adapter)

Full PoE load: 88.0 W (PoE: 77 W)

Maximum heat dissipation [BTU/hour]

Without PoE: 23.88 (device)/26.89 (device + power adapter)

Full PoE load: 300.27

Static power consumption [W]

4.68 W

MTBF [years]

78.74 years

MTTR [hours]

2 hours

Availability

> 0.99999

Noise at normal temperature (acoustic power) [dB(A)]

Noise-free (no fans): < 30

Noise at normal temperature (acoustic pressure) [dB(A)]

Noise-free (no fans): < 20

Number of card slots

0

Number of power slots

0

Number of fans modules

0

Redundant power supply

Not supported

Long-term operating temperature [°C(°F)]

-5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.)

Restriction on the operating temperature variation rate [°C(°F)]

When the altitude is 1800-5000 m (5905.44-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (721.78 ft.).

The device cannot start when the temperature is lower than 0°C (32°F).

The operating temperature of a device ranges from -5°C to +45°C (23°F to 113°F) when the device uses the following optical modules:

- GE optical modules with a transmission distance of less than or equal to 10 km

Storage temperature [°C(°F)]

–40°C to +70°C (–40°F to +158°F)

Long-term operating relative humidity [RH]

5% RH to 95% RH (non-condensing)

Long-term operating altitude [m(ft.)]

0–5000 m (0–16404 ft.)

Storage altitude [m(ft.)]

0-5000 m (0-16404 ft.)

Power supply mode

Power adapter

Rated input voltage [V]

Power adapter input: 100–240 V AC; 50/60 Hz

Power adapter output: 56 V DC

Input voltage range [V]

Power adapter input: 90–290 V AC; 47–63 Hz

Maximum input current [A]

1.6 A

Memory

--

Flash memory

--

Console port

Not supported

Eth Management port

Not supported

USB

Not supported

RTC

Not supported

RPS input

Not supported

Service port surge protection [kV]

Common mode: ±6 kV

Power supply surge protection [kV]

Power adapter: ±6 kV in differential mode and ±6 kV in common mode

Ingress protection level (dustproof/waterproof)

IP20

Types of fans

None

Heat dissipation mode

Natural heat dissipation

Airflow direction

-

PoE

Supported

Certification

EMC certification

Safety certification

Manufacturing certification
