Huawei CloudEngine Switch S5731-H48T4XC (02352QPT/-003/-007)

USD

4.9 4.9/5.0 Reviews Q/A 10 sold/Mon
Detail:	S5731-H48T4XC (4810/100/1000BASE-T ports, 410GE SFP+ ports, 1*expansion slot, without power module)
Model:	S5731-H48T4XC (02352QPT/-003/-007)
Condition:	Factory Sealed New
Related:	Huawei CloudEngine Switch S5731-H48P4XC (02352SVD/-001/-003) Huawei CloudEngine Switch S5731-H24P4XC (02352QPV/-001/-003) Huawei CloudEngine Switch S5731-H24T4XC (02352QPP/-001/005)
Warranty:	3 Years-Warranty 100% Money-back Free After-Sales Service
Shipping:	Air Shipping to United States , Most Customers Receive during 5-7 Days ? If you finish the payment today, your order will arrive within the estimated delivery time.
Ships to: 16.0	2-7 Days US$
Payment:	Pay by wire transfer. Pay with your paypal. Pay with your Visa credit card. Pay with your Mastercard credit card. Pay with your Discover Card. Pay by Western Union. More

Description
Specification
Reviews
Q&A
Warranty
Download

Huawei CloudEngine Switch S5731-H48T4XC (02352QPT/-003/-007)

The CloudEngine S5731-H series switches are the next-generation intelligent gigabit fixed switches developed by Huawei. The CloudEngine S5731-H builds on Huawei's unified Versatile Routing Platform (VRP) and boasts various IDN features.

Quick Specification:

Model	S5731-H48T4XC
Part Number	02352QPT/02352QPT-003/02352QPT-007
Memory (RAM)	4 GB
Flash memory	1 GB in total. To view the available flash memory size, run the display version command.
PoE	Not supported
Dimensions (H x W x D)	Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.5 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 43.6 mm x 442.0 mm x 448.0 mm (1.72 in. x 17.4 in. x 17.7 in.)
Weight (with packaging)	8.55 kg (18.85 lb)

Difference between Part Number:

Model	S5731-H48T4XC
Part Number	02352QPT	02352QPT-003	02352QPT-007
Heat dissipation mode	Heat dissipation with fan, intelligent fan speed adjustment	Heat dissipation with fan, intelligent fan speed adjustment	Air cooling for heat dissipation, intelligent fan speed adjustment
Long-term operating temperature [°C(°F)]	-5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.)	-5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.)	–5°C to +45°C (23°F to 113°F) at an altitude of 0 to 1800 m (0 to 5905.44 ft.)
Long-term operating relative humidity [RH]	5% to 95%, noncondensing	5% to 95%, noncondensing	5% RH to 95% RH (non-condensing)

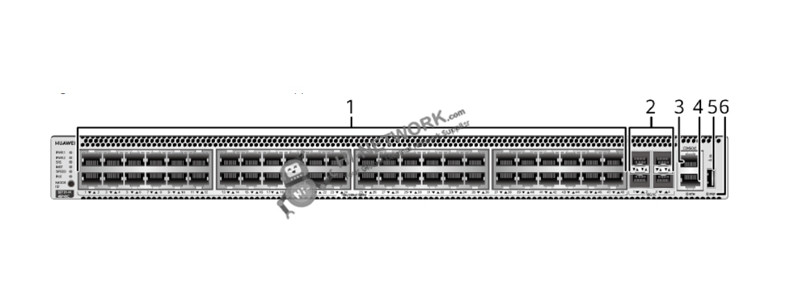

The Front Panel:

s5731-h48t4xc-front-datasheet

①	Forty-eight 10/100/1000BASE-T ports
②	Four 10GE SFP+ ports
③	One console port
④	One ETH management port
⑤	One USB port
⑥	One PNP button

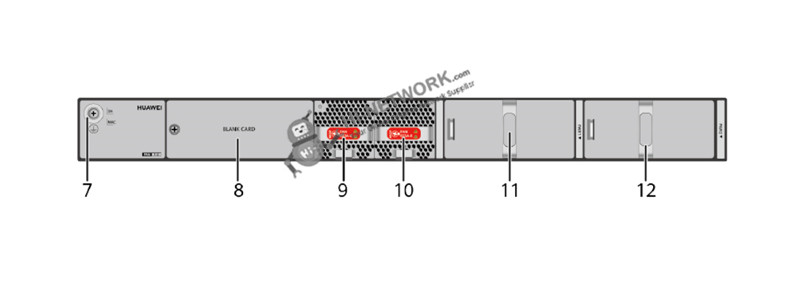

The Back Panel:

s5731-h48t4xc-back-datasheet

⑦	Ground screw
⑧	Rear card slot
⑨	Fan module slot 1
⑩	Fan module slot 2
11	Power module slot 1
12	Power module slot 2

The Accessories for S5731-H48T4XC

Recommended elements for the S5731-H48T4XC:

Models	Descriptions
PAC600S12-CB	600W AC Power Module(Back to Front, Power panel side exhaust)
eSFP-GE-SX-MM850	Optical Transceiver,eSFP,GE,Multi-mode Module (850nm,0.55km,LC)
S-SFP-GE-LH40-SM1550	Optical Transceiver,eSFP,GE,Single-mode Module (1550nm,40km,LC)
SFP-GE-LX-SM1310	Optical Transceiver,eSFP,GE,Single-mode Module (1310nm,10km,LC)
S-SFP-GE-LH40-SM1310	Optical Transceiver,eSFP,GE,Single-mode Module (1310nm,40km,LC)
S-SFP-GE-LH80-SM1550	Optical Transceiver,eSFP,GE,Single-mode Module (1550nm,80km,LC)
SFP-GE-ZBXU1	Optical Transceiver,eSFP,GE,BiDi Single-mode Module (1490nm(Tx)/1570nm(Rx),80km,LC)
LE2MGSC40ED0	Optical Transceiver,eSFP,GE,BIDI Single-mode Module (TX1490/RX1310,40km,LC)
SFP-GE-BXU1-SC	1000Base,BIDI Optical Transceiver,SFP,GE,Single-mode Module (TX1490nm/RX1310nm,10km,SC)
SFP-10G-iLR	Optical Transceiver,SFP+,10G,Single-mode Module (1310nm,1.4km,LC)
SFP-10G-USR	10GBase-USR Optical Transceiver,SFP+,10G,Multi-mode Module (850nm,0.1km,LC)
SFP-1000BaseT	Electrical Transceiver,SFP,GE,Electrical Interface Module (100m,RJ45)
OMXD30000	Optical Transceiver,SFP+,10G,Multi-mode Module (850nm,0.3km,LC)
OSX010000	Optical Transceiver,SFP+,10G,Single-mode Module (1310nm,10km,LC)

Compare to Similar Items:

Models	S5731-H24P4XC	S5731-H24T4XC	S5731-H48P4XC	S5731-H48T4XC
Fixed port	24 x 10/100/1000Base-T (PoE+) ports, 4 x 10GE SFP+ ports	24 x 10/100/1000Base-T ports, 4 x 10GE SFP+ ports	48 x 10/100/1000Base-T (PoE+) ports, 4 x 10GE SFP+ ports	48 x 10/100/1000Base-T ports, 4 x 10GE SFP+ ports
Dimensions (H x W x D)	43.6 mm x 442 mm x 420mm	43.6 mm x 442 mm x 420mm	43.6 mm x 442 mm x 420mm	43.6 mm x 442 mm x 420mm
Chassis height	1 U	1 U	1 U	1 U
Chassis weight (including packaging)	8.6 kg	8.4 kg	8.8 kg	8.55 kg
Extended slot	One extended slot, support 2 x 40GE, 8 x 10GE Base-T, 2 x 25GE SFP28 or 8 x 10GE SFP+ cards	One extended slot, support 2 x 40GE, 8 x 10GE Base-T, 2 x 25GE SFP28 or 8 x 10GE SFP+ cards	One extended slot, support 2 x 40GE, 8 x 10GE Base-T, 2 x 25GE SFP28 or 8 x 10GE SFP+ cards	One extended slot, support 2 x 40GE, 8 x 10GE Base-T, 2 x 25GE SFP28 or 8 x 10GE SFP+ cards
Power supply type	1000 W PoE AC (pluggable)	• 600 W AC (pluggable) • 150 W AC (pluggable) • 1000 W DC (pluggable)	1000 W PoE AC (pluggable)	• 600 W AC (pluggable) • 150 W AC (pluggable) • 1000 W DC (pluggable)
Rated voltage range	AC input (1000 W AC PoE): 100 V AC to 240 V AC, 50/60 Hz	• AC input (600 W AC ): 100 V AC to 240 V AC, 50/60 Hz • AC input (150 W AC ): 100 V AC to 240 V AC, 50/60 Hz • DC input (1000 W DC): -48 VDC to -60 V DC	AC input (1000 W AC PoE): 100 V AC to 240 V AC, 50/60 Hz	• AC input (600 W AC ): 100 V AC to 240 V AC, 50/60 Hz • AC input (150 W AC ): 100 V AC to 240 V AC, 50/60 Hz • DC input (1000 W DC): -48 VDC to -60 V DC
Maximum power consumption	• 121 W (without PD) • 977 W (with PD, PD power consumption of 720 W)	114 W	• 132 W (without PD) • 1750 W (with PD, PD power consumption of 1440 W)	124 W

Get More Information

Do you have any question about the S5731-H48T4XC 02352QPT/02352QPT-003/02352QPT-007?

Specific Data Sheet:

Part Number	02352QPT/02352QPT-003/02352QPT-007
Model	S5731-H48T4XC
Memory (RAM)	4 GB
Flash	1 GB in total. To view the available flash memory size, run the display version command.
Mean time between failures (MTBF)	55.31 years
Mean time to repair (MTTR)	2 hours
Availability	> 0.99999
Service port surge protection	Common mode: ±6 kV
Power supply surge protection	Using AC power modules: ±6 kV in differential mode, ±6 kV in common mode Using DC power modules: ±2 kV in differential mode, ±4 kV in common mode
Dimensions (H x W x D)	Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.5 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 43.6 mm x 442.0 mm x 448.0 mm (1.72 in. x 17.4 in. x 17.7 in.)
Weight (with packaging)	8.55 kg (18.85 lb)
Stack ports	10GE SFP+ ports on the front panel, or ports on the rear card
RTC	Supported
RPS	Not supported
PoE	Not supported
Rated voltage range	AC input: 100 V AC to 130 V AC, 200 V AC to 240 V AC, 50/60 Hz High-Voltage DC input: 240 V DC DC input: -48 V DC to -60 V DC
Maximum voltage range	AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz High-Voltage DC input: 190 V DC to 290 V DC DC input: -38.4 V DC to -72 V DC
Maximum power consumption (100% throughput, full speed of fans)	124 W (without card)
Typical power consumption (30% of traffic load, tested according to ATIS standard)	101 W (without card)
Operating temperature	-5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.)
Storage temperature	-40°C to +70°C (-40°F to +158°F)
Noise under normal temperature (27°C, sound power)	< 57.5 dB(A)
Relative humidity	5% to 95%, noncondensing
Operating altitude	0-5000 m (0-16404 ft.)
Certification	EMC certification Safety certification Manufacturing certification
