Genuine New SFP-10G-CU3M (02310MUP) Huawei 3m 10ft 10G SFP+ Passive Direct Attach Copper Twinax Cable

USD

4.6 4.6/5.0 Reviews Q/A 2 sold/Mon
Detail:	SFP+, 10G, High Speed Direct-attach Cables, 3m, SFP+20M, CC2P0.254B(S), SFP+20M, Used indoor
Model:	SFP-10G-CU3M (02310MUP)
Condition:	Factory Sealed New
Related:	Genuine New SFP-10G-CU1M (02310MUN) Huawei 1m 3ft 10G SFP+ Passive Direct Attach Copper Twinax Cable OEM SFP-10G-CU5M (02310QPR) Huawei Compatible 5m 16ft 10G SFP+ Passive Direct Attach Copper Twinax Cable
Warranty:	3 Year-Warranty 100% Money-back Free After-Sales Service
Shipping:	Air Shipping to United States , Most Customers Receive during 5-7 Days ? If you finish the payment today, your order will arrive within the estimated delivery time.
Ships to: 1	2-7 Days US$
Payment:	Pay by wire transfer. Pay with your paypal. Pay with your Visa credit card. Pay with your Mastercard credit card. Pay with your Discover Card. Pay by Western Union. More

Description
Specification
Reviews
Q&A
Warranty
Download

Genuine New SFP-10G-CU3M (02310MUP) Huawei 3m 10ft 10G SFP+ Passive Direct Attach Copper Twinax Cable

The SFP+ DAC copper cable is programmed to be compatible with a wide range of HW network equipment for in-rack connections such as 10 Gigabit Ethernet (10 GbE) Switches, Routers, Network Interface Cards (NICs) and Network Storage Systems. It’s proven to be a cost-effective alternative to high-cost HW SFP-10G-CU3M 10G SFP+ 3m direct attach the copper cable.

Quick Specification

Table 1 show the quick specification

Model	SFP-10G-CU3M
Part Number	02310MUP
Supply Voltage	3.3V
Cable Length	3 m
Cable impedance	100 Ω
Cable Type	Twinax
Wire Gauge	30AWG

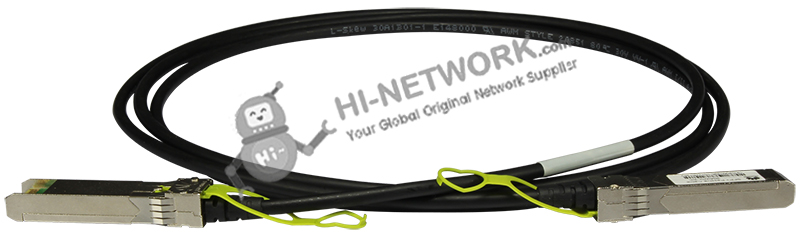

Figure 1 shows the appearance of SFP-10G-CU3M.

front-sfp-10g-cu3m-datasheet

Product Details

SFP-10G-CU3M provides these features:

• lower cost than SFP+ optical transceiver and active optical cable (AOC)

• Support for multi-gigabit data rates up to 10.5Gbps

• Support for 1x, 2x, 4x and 8x Fibre Channel data rates

• Hot-pluggable SFP 20PIN footprint

• I/O Connector designed for high-speed differential signal applications

• Improved Pluggable Form Factor (IPF) compliant for enhanced EMI/EMC performance

• Single 3.3V power supply

• Compatible to SFP+ MSA

• Operating temperature range: 0 to 70°C

• RoHS Compliant and Lead-Free

Get More Information

Do you have any question about the SFP-10G-CU3M (02310MUP)?

Specific Data Sheet:

SFP-10G-CU3M Specification
Model	SFP-10G-CU3M
Form Factor	SFP+ DAC Cable
Data Rate	10.5Gb/s
Passive or actively equalized	Passive
Supply Voltage	3.3V
Cable Length	3 m
Cable impedance	100 Ω
Cable Type	Twinax
Wire Gauge	30AWG
Minimum cable bend radius	25 mm
Cable Jacket Type	PVC
Connector	SFP+/SFP+
Digital Diagnostic Monitoring	N/A
Environment	Operating: 0°C to 70°C Storage: -40°C to 85°C
Application	Storage Area Networks (SAN) Network Attached Storage The switched fabric I/O High-density connections between networking equipment Data center cabling infrastructure
Compliance	SFF-8472, SFF-8431 IEC/EN 61000-4-2 MIL-STD -883E, RoHS
