Genuine New CXP-100G-SR12 Cisco 100 Gigabit Optical Modules

USD

2060 ~~$9190~~ (77.6% OFF)

4.8 4.8/5.0 Reviews Q/A 3 Sold/Mon
Detail:	CXP form factor, 100GBASE-SR10 compliant
Model:	CXP-100G-SR12
Condition:	Factory Sealed New Cisco; In stock
Related:
Warranty:	3 Years-Warranty 100% Money-back Free After-Sales Service
Shipping:	Air Shipping to United States , Most Customers Receive during 5-7 Days ? If you finish the payment today, your order will arrive within the estimated delivery time.
Ships to: 0.2	2-7 Days US$
Payment:	Pay by wire transfer. Pay with your paypal. Pay with your Visa credit card. Pay with your Mastercard credit card. Pay with your Discover Card. Pay by Western Union. More

Description
Specification
Reviews
Q&A
Warranty
Download

Genuine New CXP-100G-SR12 Cisco 100 Gigabit Optical Modules

(Note: Cisco discount and Stock always changed, we will try most effort to follow it but can not ensure every web was changed accordingly. So Our Products Service will contact you after order if meet such special condition.)

The Cisco® CXP 100GBASE modules offer customers a wide variety of high-density 100Gbps connectivity solutions for short-reach data center networking, high-performance computing networks, enterprise core aggregation, and service provider transport applications.

Quick Specification

Product Code	CXP-100G-SR12
Description	100GBASE-SR10 CXP Module for MMF
Dimensions	13.3 x 24 x 62 mm (0.52 x 0.94 x 2.44 in)
Wavelength (nm)	850
Cable Type	MMF
Core Size (Microns)	50.0 50.0
Modal Bandwidth (MHz km)	2000 (OM3) 4700 (OM4)
Cable Distance	100m 150m

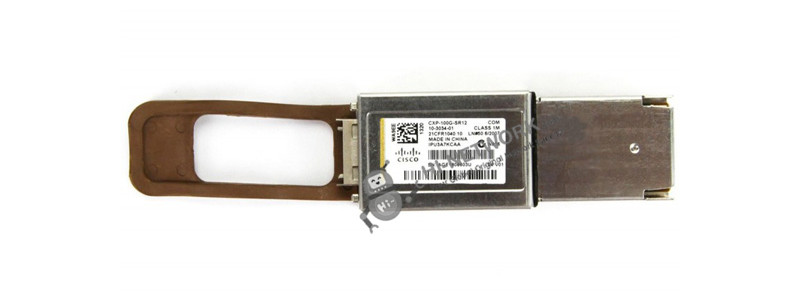

The Front Panel:

cxp-100g-sr12-datasheet

Compare to Similar Items

Parameters	CXP-100G-SR10=	CXP-100G-SR12
Description	100GBASE-SR10 CXP Module for MMF compliant to 10GBASE-SR	100GBASE-SR10 CXP Module for MMF
Dimensions	13.3 x 24 x 62 mm (0.52 x 0.94 x 2.44 in)	13.3 x 24 x 62 mm (0.52 x 0.94 x 2.44 in)
Type	100GBASE-SR10 10GBASE-SR	100GBASE-SR10
Transmit Power (dBm)	Max:-1.0 per lane Min:-7.6 per lane	Max:2.5 per lane Min:-7.6 per lane
Receive Power (dBm)	Max:2.4 per lane Min:-9.5 per lane	Max:2.4 per lane Min:-9.5 per lane
Transmit and Receive Center Wavelength Range (nm)	12 lanes: 840 to 860 nm	12 lanes: 840 to 860 nm

Get More Information

Do you have any question about the CXP-100G-SR12?

Specific Data Sheet:

Description	100GBASE-SR10 CXP Module for MMF
Dimensions	13.3 x 24 x 62 mm (0.52 x 0.94 x 2.44 in)
CXP Port Cabling Specifications
Wavelength (nm)	850
Cable Type	MMF
Core Size (Microns)	50.0 50.0
Modal Bandwidth (MHzkm)**	2000 (OM3) 4700 (OM4)
Cable Distance*	100m 150m**
* Minimum cabling distance for -LR4 modules is 2m, according to the IEEE 802.3ba. Considered an engineered link with maximum 1dB allocated to connectors and splice loss. * Specified at transmission wavelength.
Optical Transmit and Receive Specifications
Type	100GBASE-SR10
Transmit Power (dBm)*	Max:2.5 per lane Min:-7.6 per lane
Receive Power (dBm)*	Max:2.4 per lane Min:-9.5 per lane
Transmit and Receive Center Wavelength Range (nm)	12 lanes: 840 to 860 nm
* Transmitter and receiver power are in averages, unless specified.
Environmental Conditions and Power Requirements
Storage temperature	-40 to 185°F (-40 to 85° C)
CXP operating temperature	0 to 70°C (32 to 158°F)
CXP power consumption	At 70°C: <3.5W maximum
