| Detail: | Cisco Firepower 2140 NGFW Appliance, 1RU, 1 x Network Module Bays |
| Model: | FPR2140-NGFW-K9 |
| Condition: | Sealed New |
| Related: | |
| Warranty: |
1 Year-Warranty
100% Money-back
Free After-Sales Service
|
| Shipping: |
Air Shipping to
United States
, Most Customers Receive during 5-7 Days
?
If you finish the payment today,
your order will arrive within the estimated delivery time. |
| Ships to:
22
|
2-7 Days
US$
|
| Payment: |
More
|
(Note: Cisco discount and Stock always changed, we will try most effort to follow it but can not ensure every web was changed accordingly. So Our Products Service will contact you after order if meet such special condition.)
The Cisco Firepower 2100 Series is a family of four threat-focused NGFW security platforms that deliver business resiliency through superior threat defense. It offers exceptional sustained performance when advanced threat functions are enabled. These platforms uniquely incorporate an innovative dual multicore CPU architecture that optimizes firewall, cryptographic, and threat inspection functions simultaneously. The series' firewall throughput range addresses use cases from the Internet edge to the data center. Network Equipment Building Standards (NEBS)- compliance is supported by the Cisco Firepower 2100 Series platform. The FPR2130-ASA- K9 stands for Cisco Firepower 2130 ASA Appliance, 1RU, 1 x Network Module Bays.
Product Number | FPR2140-NGFW-K9 |
Product Description | Cisco Firepower 2140 NGFW Appliance, 1RU, 1 x Network Module Bays |
Dimensions (H x W x D) | 1.73 x 16.90 x 19.76 in. (4.4 x 42.9 x 50.2 cm) |
Form factor (rack units) | 1RU |
I/O module slots | 1 NM slot |
Integrated I/O | 12 x 10M/100M/1GBASE-T Ethernet interfaces (RJ-45), 4 x 10 Gigabit (SFP+) Ethernet interfaces |
Network modules | (FPR-NM-8X10G) 8 x 10 Gigabit Ethernet Enhanced Small Form-Factor Pluggable (SFP+) network module |
Maximum number of interfaces | Up to 24 total Ethernet ports (12x1G RJ-45, 4x10G SFP+, and network module with 8x10G SFP+) |
Integrated network management ports | 1 x 10M/100M/1GBASE-T Ethernet port (RJ-45) |
Serial port | 1 x RJ-45 console |
USB | 1 x USB 2.0 Type-A (500mA) |
Storage | 1x 200 GB, 1x spare slot (for MSP) |

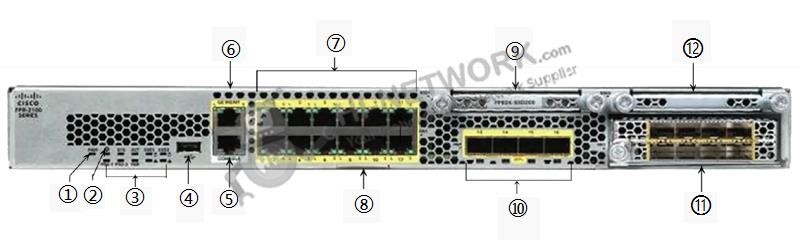

Note:
(1) | Power LED |
(2) | Locator beacon |
(3) | System LEDs |
(4) | Type A USB 2.0 port |
(5) | RJ-45 console port |
(6) | Gigabit Ethernet management port: l Firepower Threat Defense—Management 0 (also referred to as Management 1/1 and Diagnostic 1/1) l ASA—Management 1/1 |
(7) | 12 RJ-45 1G/100M/10M auto duplex/auto MDI-X Base-T ports Ethernet 1/1 through 1/12 labeled top to bottom, left to right |
(8) | Pullout label card with chassis serial number |
(9) | SSD 1 |
(10) | 4 fixed SFP+ (1G/10G) ports Fiber ports 1/13 through 1/16 labeled left to right |
(11) | Network Module (network module slot 1) |
(12) | SSD 2 |

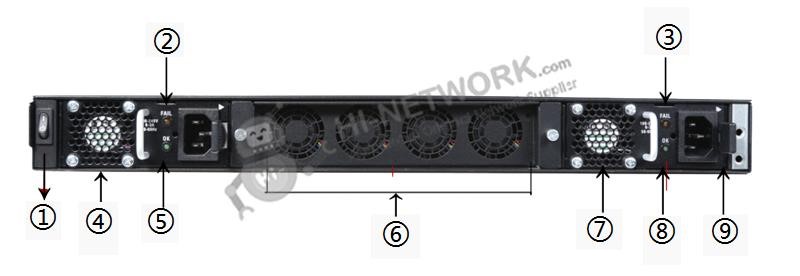

Note:
(1) | Power on/off switch |
(2) | Power supply module 1 FAIL LED |
(3) | Power supply module 2 FAIL LED |
(4) | Power supply module 1 |
(5) | Power supply module 1 OK LED |
(6) | Fan tray |
(7) | Power supply module 2 |
(8) | Power supply module 2 OK LED |
(9) | 2-post grounding lug |
Product Number | FPR2140-NGFW-K9 | |
Product Description | Cisco Firepower 2140 NGFW Appliance, 1RU, 1 x Network Module Bays | Cisco Firepower 2120 NGFW Appliance, 1RU |
Dimensions (H x W x D) | 1.73 x 16.90 x 19.76 in. (4.4 x 42.9 x 50.2 cm) | 1.73 x 16.90 x 19.76 in. (4.4 x 42.9 x 50.2 cm) |
Form factor (rack units) | 1RU | 1RU |
I/O module slots | 1 NM slot | 0 |
Integrated I/O | 12 x 10M/100M/1GBASE-T Ethernet interfaces (RJ- 45), 4 x 10 Gigabit (SFP+) Ethernet interfaces | 12 x 10M/100M/1GBASE-T Ethernet interfaces (RJ- 45), 4 x 1 Gigabit (SFP) Ethernet interfaces |
Network modules | (FPR-NM-8X10G) 8 x 10 Gigabit Ethernet Enhanced Small Form-Factor Pluggable (SFP+) network module | None |
Maximum number of interfaces | Up to 24 total Ethernet ports (12x1G RJ-45, 4x10G SFP+, and network module with 8x10G SFP+) | Up to 16 total Ethernet ports (12x1G RJ-45, 4x1G SFP) |
Storage | 1x 200 GB, 1x spare slot (for MSP) | 1x 100 GB, 1x spare slot (for MSP) |
Do you have any questions about the FPR2140-NGFW-K9?
Contact us now via [email protected].
FPR2140-NGFW-K9 Specification | ||
Product Number | FPR2140-NGFW-K9 | |
Product Description | Cisco Firepower 2140 NGFW Appliance, 1RU, 1 x Network Module Bays | |
Hardware Specifications | ||
Dimensions (H x W x D) | 1.73 x 16.90 x 19.76 in. (4.4 x 42.9 x 50.2 cm) | |
Form factor (rack units) | 1RU | |
I/O module slots | 1 NM slot | |
Integrated I/O | 12 x 10M/100M/1GBASE-T Ethernet interfaces (RJ-45), 4 x 10 Gigabit (SFP+) Ethernet interfaces | |
Network modules | (FPR-NM-8X10G) 8 x 10 Gigabit Ethernet Enhanced Small Form-Factor Pluggable (SFP+) network module | |
Maximum number of interfaces | Up to 24 total Ethernet ports (12x1G RJ-45, 4x10G SFP+, and network module with 8x10G SFP+) | |
Integrated network management ports | 1 x 10M/100M/1GBASE-T Ethernet port (RJ-45) | |
Serial port | 1 x RJ-45 console | |
USB | 1 x USB 2.0 Type-A (500mA) | |
Storage | 1x 200 GB, 1x spare slot (for MSP) | |
Power supplies | Configuration | Dual 400W AC. Single/dual 350W DC optional |
AC input voltage | 100 to 240V AC | |
AC maximum input current | < 6A at 100V | |
AC maximum output power | 400W | |
AC frequency | 50 to 60 Hz | |
AC efficiency | >89% at 50% load | |
DC input voltage | -48V to -60VDC | |
DC maximum input current | < 12.5A at -48V | |
DC maximum output power | 350W | |
DC efficiency | >88% at 50% load | |
Redundancy | 1+1 AC or DC with dual supplies | |
Fans | 1 hot-swappable fan module (with 4 fans) | |
Noise | 56 dBA @ 25C 77 dBA at highest system performance. | |
Rack mountable | Yes. Mount rails included (4-post EIA-310-D rack) | |
Weight | 21 lb (9.53 kg) 2 x power supplies, 1 x NM, 1 x fan module, 2x SSDs | |
Temperature: operating | 32 to 104°F (0 to 40°C) | |
Temperature: nonoperating | -4 to 149°F (-20 to 65°C) | |
Humidity: operating | 10 to 85% noncondensing | |
Humidity: nonoperating | 5 to 95% noncondensing | |
Altitude: operating | 10,000 ft (max) | |
Altitude: nonoperating | 40,000 ft (max) | |
