Cisco CP-PWR-INJ Cisco Unified IP Phone Power Injector for 6900 7900 VoIP

USD

29.5 ~~$150~~ (80.3% OFF)

4.7 4.7/5.0 Reviews Q/A 3 sold/Mon
Detail:	Cisco Power injector CP-PWR-INJ For Cisco Unified IP Phones
Model:	CP-PWR-INJ
Condition:	New; In Stock
Related:	Used CISCO CP-7911G IP Phone End of Life Replaced By CP-7821-K9 Used CISCO CP-7941G IP Phone End of Life Replaced By CP-7841-K9 CP-7961G Cisco EOS EOL VoIP 6 Line IP Phone
Warranty:	1 Year-Warranty 100% Money-back Free After-Sales Service
Shipping:	Air Shipping to United States , Most Customers Receive during 5-7 Days ? If you finish the payment today, your order will arrive within the estimated delivery time.
Ships to: 1.2	2-7 Days US$
Payment:	Pay by wire transfer. Pay with your paypal. Pay with your Visa credit card. Pay with your Mastercard credit card. Pay with your Discover Card. Pay by Western Union. More

Description
Specification
Reviews
Q&A
Warranty
Download

Cisco CP-PWR-INJ Cisco Unified IP Phone Power Injector for 6900 7900 VoIP

(Note: Cisco discount and Stock always changed, we will try most effort to follow it but can not ensure every web was changed accordingly. So Our Products Service will contact you after order if meet such special condition.)

The Cisco® Unified IP Phone Power Injector increases the deployment flexibility of Cisco Unified IP phones by providing an alternative powering option to local power, multiport power patch panels, and inline-power-capable switches.

Quick Specification

Table 1 shows the Quick Specification.

General
Device Type	PoE injector - external
Power Device
Input Voltage Range	AC 90 - 264 V
Frequency Required	47 - 63 Hz
Output Voltage	-48 V
Power Capacity	15.5 Watt
Expansion / Connectivity
Interfaces	2 x Gigabit LAN - RJ-45
Miscellaneous
Compliant Standards	FCC Class B certified, VCCI Class B ITE, CISPR 22 Class B, CISPR 24, EN 60950, EN 61000-3-2, IEC 60950, EN 61000-3-3, EN55024, UL 60950, EN50082-1, CSA 22.2 No. 60950, EN55022 Class B, ICES-003 Class B, EN 61000-6-1, FCC CFR47 Part 15
Environmental Parameters
Min Operating Temperature	32 °F
Max Operating Temperature	104 °F
Humidity Range Operating	10 - 95%
Dimensions & Weight
Dimensions (H x W x D)	1.6 x 4.6 x 5.45 in. (4.1 x 11.8 x 13.8 cm)
Weight	10.58 oz
Compatibility Information
Designed For	Cisco IP Phone 7902G, 7905, 7905G, 7906G, 7910, 7910+SW, 7910G, 7910G+SW, 7911G, 7914, 7920, 7935, 7940, 7940G, 7941G-GE, 7960, 7960G, 7961G, 7961G-GE, 7970G, 7971G-GE, 7985G, 7985G NTSC, 7985G PAL ¦ Cisco Unified IP Phone 7912G, 7941G

Figure 1 shows the appearance of Cisco Unified IP Phone Power Injector (Front, Back, and Stacked Views).

front-cp-pwr-inj-datasheet

Product Details

The Cisco Unified IP Phone Power Injector offers several features, including:

• A desktop and desk-area single-port midspan injector with integrated power

• 802.3af/IEEE Power over Ethernet (PoE) support

• Gigabit Ethernet support

• Full enterprise-level compliance

• Designed and tested for use with Cisco Unified IP Phones

Temperature

Table 2 gives temperature ratings for the Cisco Unified IP Phone Power Injector.

Temperature Variable	Description
Operating temperature	32 to 104°F (0 to 40°C)
Relative humidity	10 to 95% (noncondensing)
Storage temperature	14 to 140°F (-10 to 60°C)

Certifications

Table 3 gives certifications for the Cisco Unified IP Phone Power Injector.

Certification	Description
Regulatory compliance	• CE marking
Safety	• Underwriters Laboratories (UL) 60950 • Canadian Standards Association (CSA) C22.2 No. 60950 • IEC 60950 • EN 60950 • AS/NZS 60950
Electromagnetic compatibility (EMC)	• Federal Communications Commission (FCC) Part 15 (CFR 47) Class B • ICES-003 Class B • EN55022 Class B • CISPR22 Class B • AS/NZ 3548 Class B • VCCI Class B • EN55024 • EN 50082-1 • EN 61000-3-2 • EN 61000-3-3 • CISPR24 • EN61000-6-1

Ordering Information

Table 4 gives ordering information for the Cisco Unified IP Phone Power Injector.

Part Number	Description
CP-PWR-INJ	Cisco Unified IP Phone Power Injector
CP-PWR-INJ=	Cisco Unified IP Phone Power Injector, spare

Get More Information

Do you have any question about the Cisco CP-PWR-INJ?

Specific Data Sheet:

CP-PWR-INJ Specification
Dimensions (H x W x D)	1.6 x 4.6 x 5.45 in. (4.1 x 11.8 x 13.8 cm)
Weight	.66 lb (.30 kg)
Phone casing composition	Polycarbonate acrylonitrile butadiene styerene (ABS) plastic in textured dark gray color
Power requirements	Power is integrated (see Table 5 for country-specific power cords used for connection to AC wall outlet)
Part number	CP-PWR-INJ

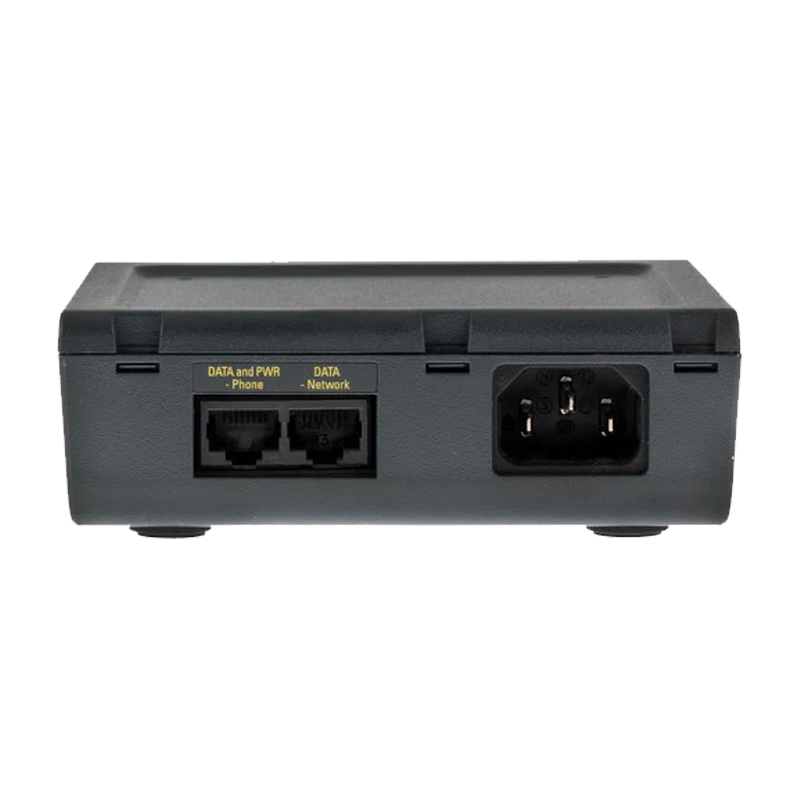

LAN connection	• Maximum Ethernet cable length: 100 m from switch to device • Type: RJ-45 • Label: DATA -Network
Device connection	• Maximum Ethernet cable length: 100 m from switch to device • Type: RJ-45 • Label: DATA and PWR -PHONE
LEDs	Two-"Power" and "Status"
Stackable	Yes-Two injectors can be stacked
Wired pairs used	Injects power into two unused pairs in the Ethernet cable: 4 and 5 (negative) and 7 and 8 (positive)
Electrical	Input: • AC input voltage range: 90 to 264 VAC • AC input current: 0.5A (RMS) @ 90 VAC at maximum load • AC input frequency: 47 to 63 Hz • Maximum inrush current: 20A @ 115 VAC, 60 Hz, Cold Start, 25°C 40A @ 230 VAC, 50 Hz, Cold Start, 25°C Output: • DC output voltage: 48 VDC nominal • Maximum output power: 15.5W @ 48 VDC Performance efficiency: • 53% minimum at 30-49% of maximum load and 120 VAC, 60 Hz • 75% minimum at 50-100% of maximum load and 120 VAC, 60 Hz
