Description

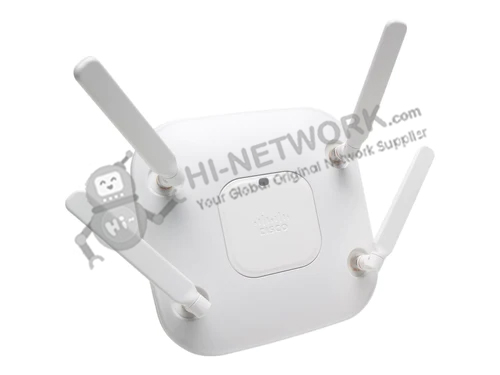

802.11ac CAP w/CleanAir; 3x4:3SS; Ext Ant; R Reg Domain

Frequency band and 20-MHz operating channels

R (R regulatory domain):

● 2.412 to 2.472 GHz; 13 channels

● 5.180 to 5.320 GHz; 8 channels

● 5,660 to 5,805 GHz; 7 channels

Software

Cisco Unified Wireless Network Software Release 7.6MR2 or later

Supported wireless LAN controllers

● Cisco 2500 Series Wireless Controllers, Cisco Wireless Controller Module for ISR G2, Cisco Wireless Services Module 2 (WiSM2) for Catalyst® 6500 Series Switches, Cisco 5500 Series Wireless Controllers, Cisco Flex® 7500 Series Wireless Controllers, Cisco 8500 Series Wireless Controllers, Cisco Virtual Wireless Controller

● Cisco 5760 Wireless LAN Controller, Cisco Catalyst 3850 Series Switches, Cisco Catalyst 3650 Series Switches

802.11n version 2.0 (and related) capabilities

● 3x4 MIMO with three spatial streams

● Maximal ratio combining (MRC)

● 802.11n and 802.11a/g beamforming

● 20- and 40-MHz channels

● PHY data rates up to 450 Mbps (40 MHz with 5 GHz)

● Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)

● 802.11 dynamic frequency selection (DFS)

● Cyclic shift diversity (CSD) support

802.11ac Wave 1 capabilities

● 3x4 MIMO with three spatial streams

● MRC

● 802.11ac beamforming

● 20-, 40-, and 80-MHz channels

● PHY data rates up to 1.3 Gbps (80 MHz in 5 GHz)

● Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)

● 802.11 DFS

● CSD support

Integrated antenna

● 2.4 GHz, gain 4 dBi, internal omni, horizontal beamwidth 360°

● 5 GHz, gain 4 dBi, internal omni, horizontal beamwidth 360°

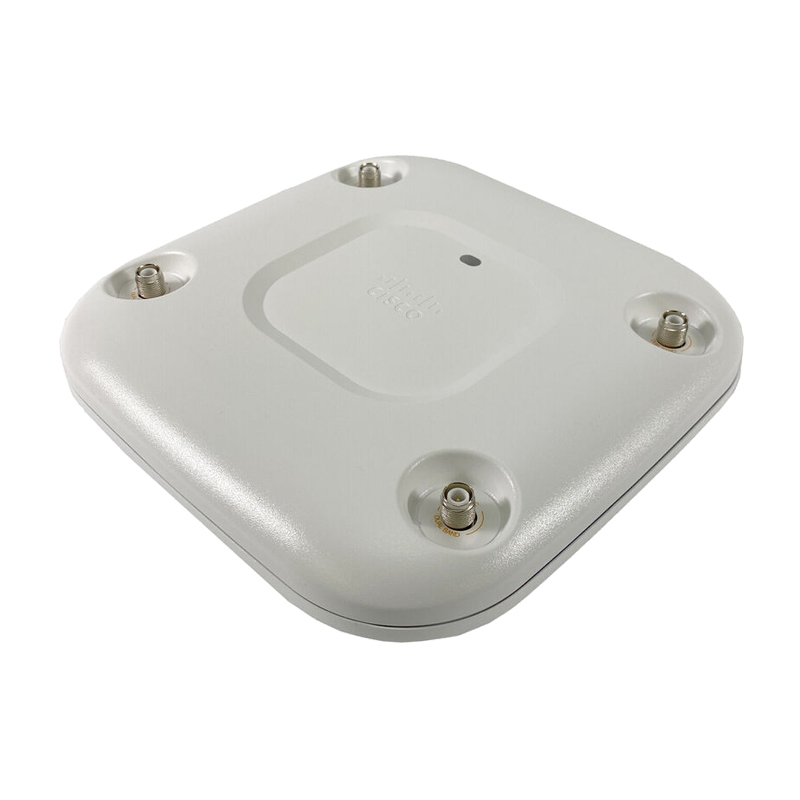

External antenna (sold separately)

● Certified for use with antenna gains up to 6 dBi (2.4 GHz and 5 GHz)

● Cisco offers the industry's broadest selection ofantennas, delivering optimal coverage for a variety of deployment scenarios

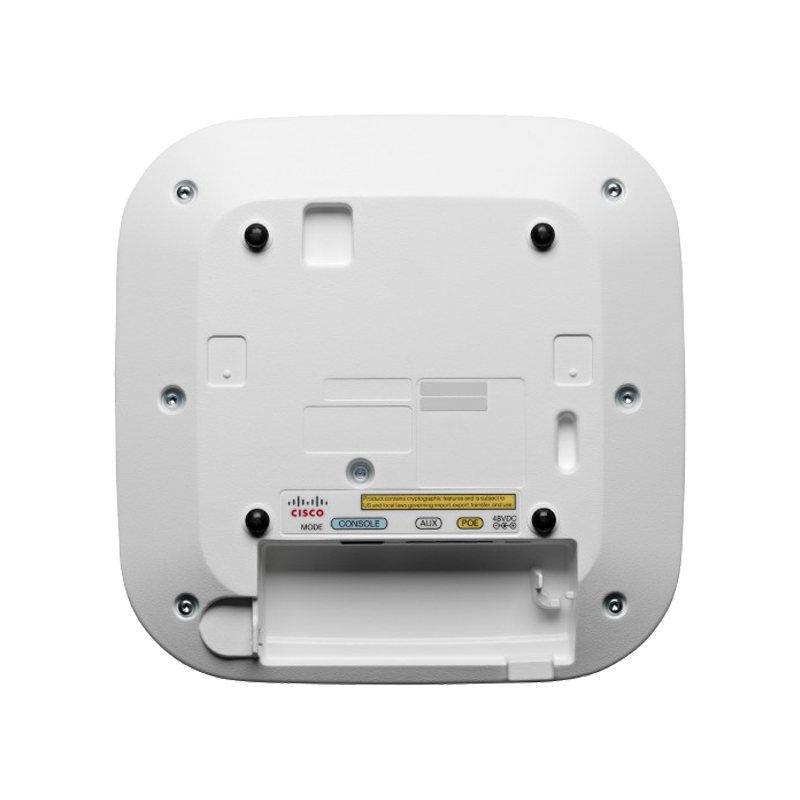

Interfaces

● 2x10/100/1000BASE-T autosensing (RJ-45)

● Management console port (RJ-45)

Indicators

● Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors

Dimensions (W x L x H)

● Access point (without mounting bracket): 8.69 x 8.69 x 1.99 in. (22.1 x 22.1 x 5.1 cm)

Weight

● 2.2 lb (1.0 kg)

Environmental

● Nonoperating (storage) temperature: −22° to 158°F (-30° to 70°C)

● Nonoperating (storage) altitude test: 25˚C, 15,000 ft.

● Operating temperature: −4° to 122°F (-20° to 50°C)

● Operating humidity: 10% to 90% (noncondensing)

● Operating altitude test: 40˚C, 9843 ft.

System memory

● 512 MB DRAM

● 64 MB flash

Input power requirements

● AP2700: 44 to 57 VDC

● Power supply and power injector: 100 to 240 VAC; 50 to 60 Hz

Power draw

● AP2700: 15W

Note: When deployed using a Power over Ethernet (PoE) specification, the power drawn from the power sourcing equipment will be higher by some amount dependent on the length of the interconnecting cable.

Powering options

● 802.3at PoE+

● Enhanced PoE

● Cisco AP2700 power injectors (AIR-PWRINJ4=)

● Cisco AP2700 local power supply (AIR-PWR-C= or AIR-PWR-D=)

Note: If 802.3af PoE is the source of power, the access point will dynamically shift from 3x4 to 3x3 and come up under PoE.

Warranty

Limited lifetime hardware warranty
