Description

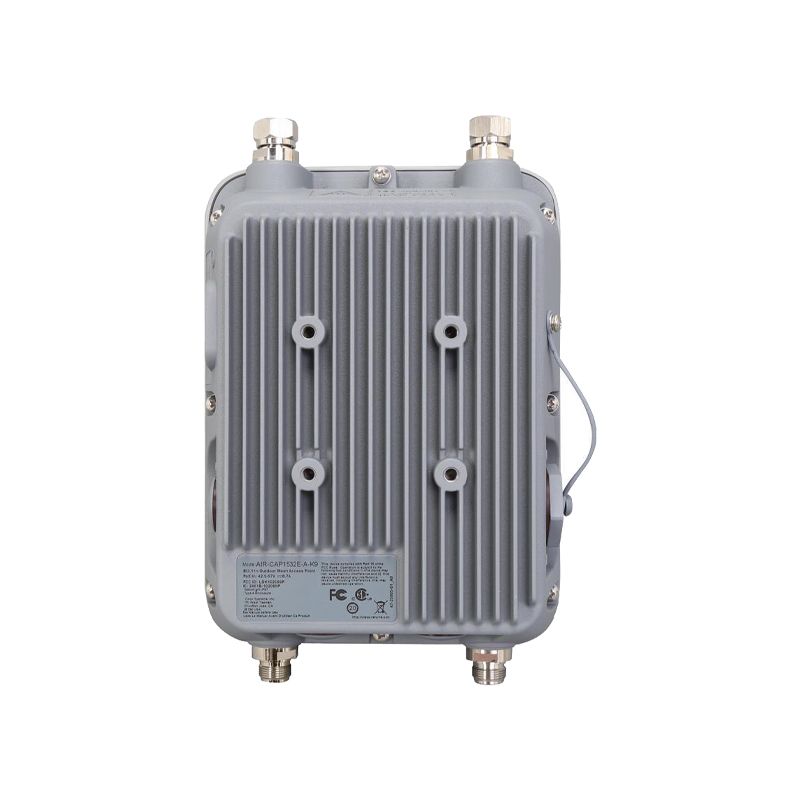

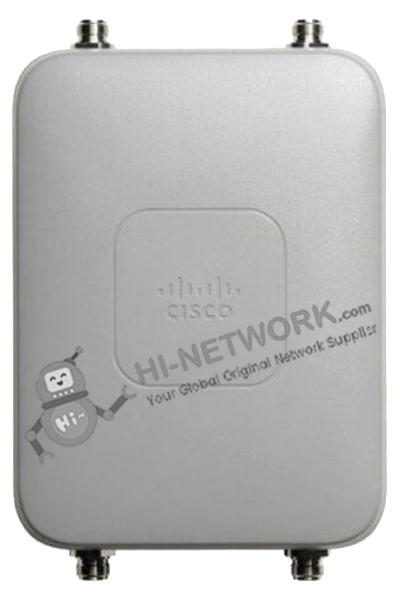

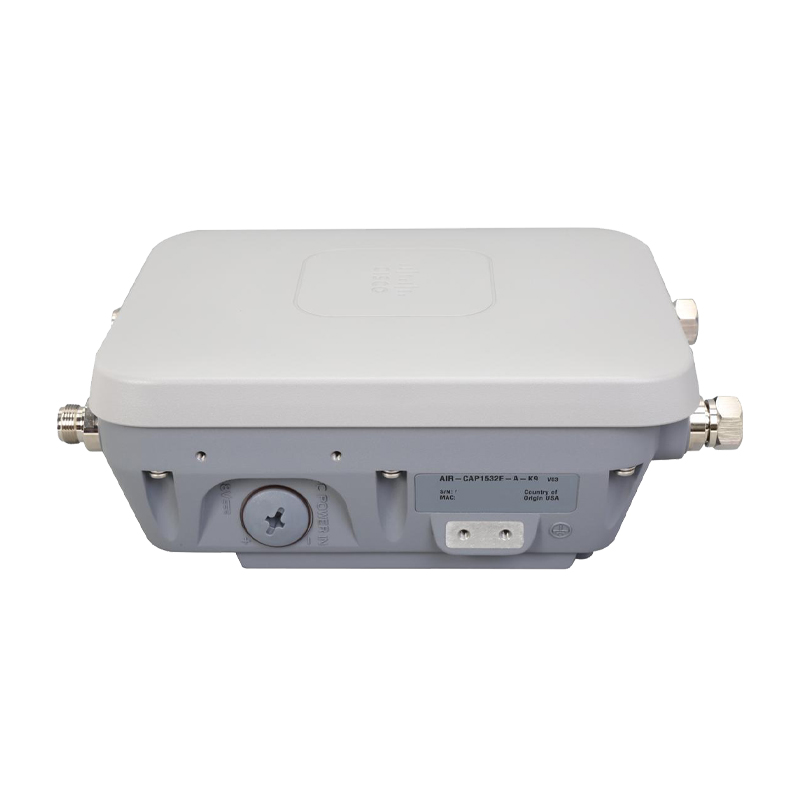

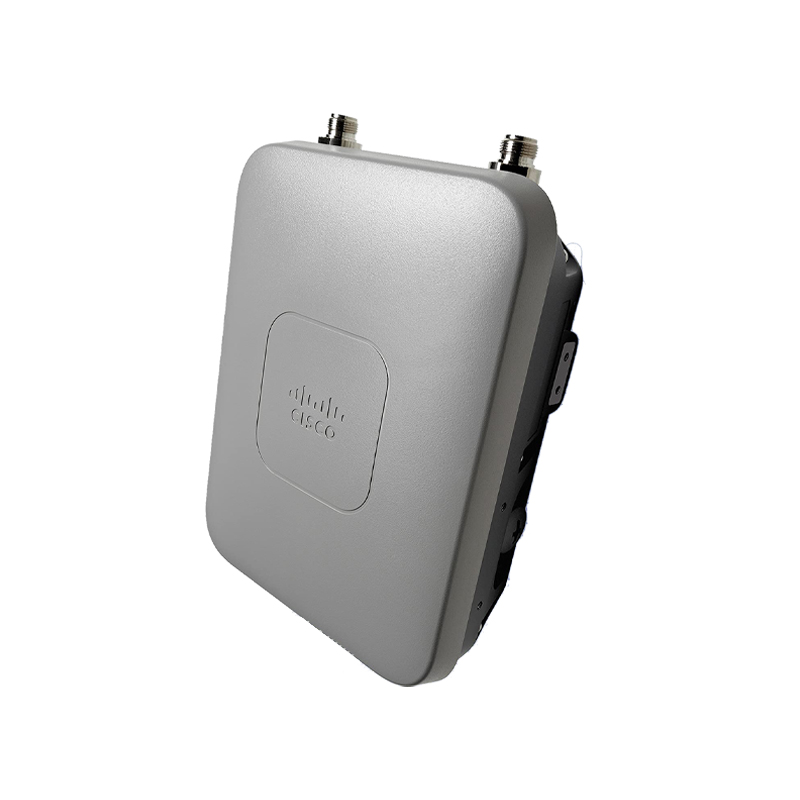

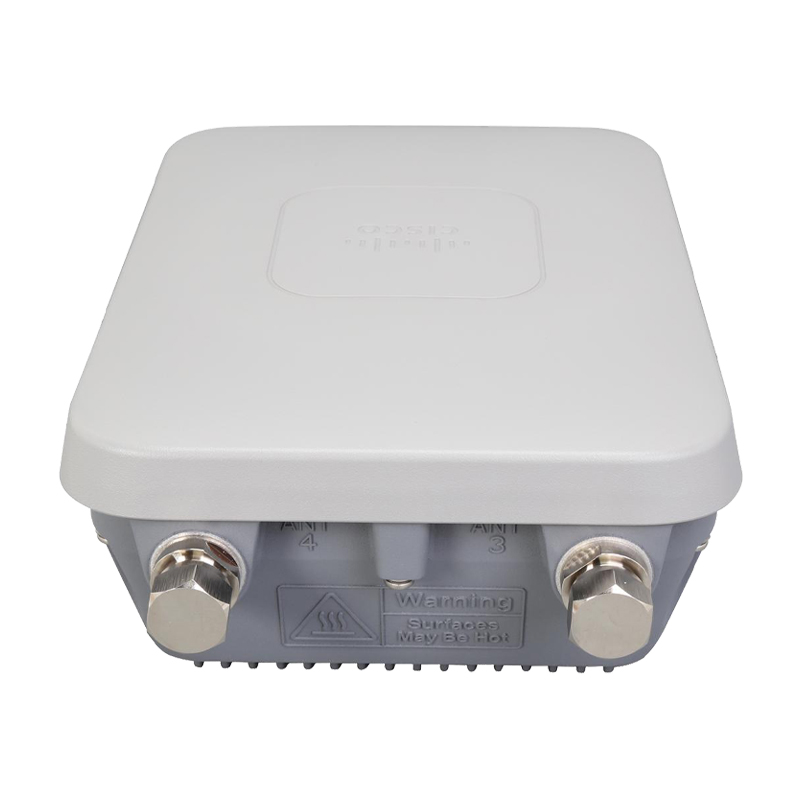

802.11n Low-Profile Outdoor AP, External Antenna, H Regulatory Domain

Regulatory Domain

H (H regulatory domain):

● 2. 412 to 2.472 GHz; 13 channels

● 5.745 to 5.825 GHz; 5 channels

802.11n (and related) capabilities

● 2x2 MIMO with 2 spatial streams (2.4 GHz) and 2x2 MIMO with 2 spatial streams (5 GHz)

● 20-MHz (2.4 and 5 GHz) and 40-MHz (5 GHz only) channels

● PHY data rates up to 300 Mbps

● Packet aggregation: A-MPDU (Tx/Rx)

● 802.11 dynamic frequency selection (DFS)

● Cyclic shift diversity (CSD) support

Maximum Equivalent Isotropically Radiated Power (EIRP)

Tx power plus external antenna gain.

Note: The maximum EIRP will vary by channel and according to individual country regulations. Refer to the product documentation for specific details.

3G/LTE/WiMAX Co‑Location

3G/LTE/WiMAX signal rejection: 33-45 dB. Refer to product documentation for specific details.

Interfaces

● WAN port: 10/100/1000BASE-T Ethernet, autosensing (RJ-45)

● LAN port: 10/100/1000BASE-T Ethernet, autosensing (RJ-45)

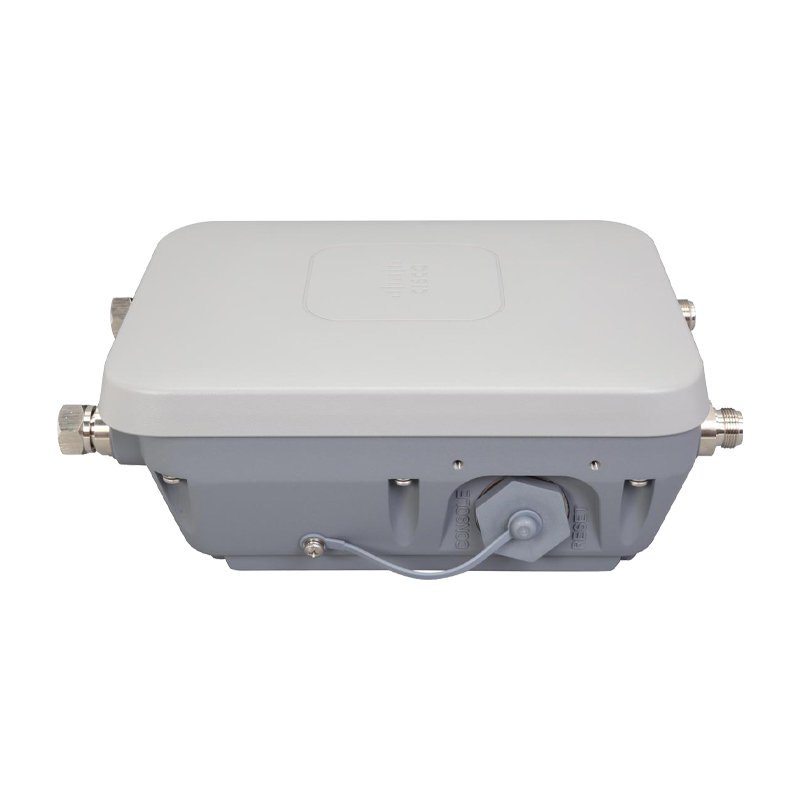

● Management console port (RJ-45) with Reset button

● DC power input

● Multicolor LED

Dimensions (W x L x H)

10 x 7 x 4 in. (26 x 17 x 10 cm) Volume: 186 cubic in. (3.0 liters)

Weight

5.5 lb (2.5 kg)

Environmental

Operating temperature: -30° to 65°C (-22° to 149°F) ambient; -30° to 55°C (-22° to 131°F) with solar loading (1200 W/m2)

Storage temperature: -50° to 85°C (-58° to 185°F)

Operating altitude: 10,000 ft (3048 m)

Humidity: 0 - 100%, condensing

Wind resistance:

● Up to 100 mph sustained winds

● Up to 140 mph wind gusts

Antenna Gain

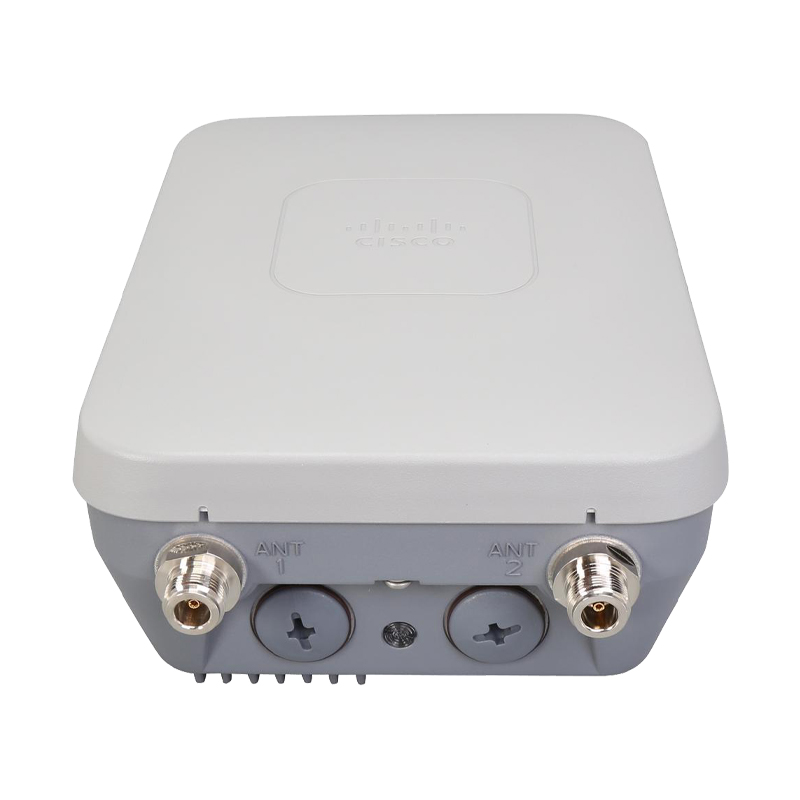

● External dual-band omnidirectional antennas

◦ AIR-ANT2547VG-N (4dBi, 2.4 GHz; 7 dBi, 5 GHz)

● External dual-band directional antennas

◦ AIR-ANT2588P3M-N= (8 dBi, 2.4 and 5 GHz)

● External single-band antennas

◦ 2.4 GHz

◦ AIR-ANT2450V-N (5 dBi, omni)

◦ AIR-ANT2480V-N (8 dBi, omni)

◦ AIR-ANT2413P2M-N= (13 dBi, dual polarized patch)

◦ 5 GHz

◦ AIR-ANT5180V-N (8 dBi, omni)

◦ AIR-ANT5114P2M-N= (14 dBi, dual polarized patch)

Power consumption

< 25 W

Powering options

● 24 to 57 VDC

● Power over Ethernet (PoE) (802.3at or Cisco Universal PoE [UPoE])

Compliance

Safety

● UL 60950, 2nd Edition

● CAN/CSA-C22.2 No. 60950, 2nd Edition

● IEC 60950, 2nd Edition

● EN 60950, 2nd Edition

Immunity

● <= 5 mJ for 6kV/3kA @ 8/20 ms waveform

● ANSI/IEEE C62.41

● EN61000-4-5 Level 4 AC Surge Immunity

● EN61000-4-4 Level 4 Electrical Fast Transient Burst Immunity

● EN61000-4-3 Level 4 EMC Field Immunity

● EN61000-4-2 Level 2 ESD Immunity

● EN60950 Overvoltage Category IV

Radio approvals

● FCC Part 15.247, 15.407

● FCC Bulletin OET-65C

● RSS-210

● RSS-102

● AS/NZS 4268.2003

● ARIB-STD 66 (Japan)

● ARIB-STD T71 (Japan)

● EN 300 328

● EN 301 893

EMI and susceptibility

● FCC part 15.107, 15.109

● ICES-003

● EN 301 489-1, -17

Security

● Wireless bridging/mesh

◦ X.509 digital certificates

◦ MAC address authentication

◦ Advanced Encryption Standard (AES), Temporal Key Integrity Protocol (TKIP)

● Wireless access

◦ 802.11i, Wi-Fi Protected Access (WPA2), WPA

◦ 802.1X authentication, including Extensible Authentication Protocol (EAP) and Protected EAP (EAP-PEAP), EAP Transport Layer Security (EAP-TLS), EAP-Tunneled TLS (EAP-TTLS), EAP-Subscriber Identity Module -d (EAP-SIM), and Cisco LEAP

◦ VPN pass-through

◦ IP Security (IPsec)

◦ Layer 2 Tunneling Protocol (L2TP)

● MAC address filtering

Warranty

1 year
