Cisco AIR-AP3802P-R-K9C Aironet 3802p AP 802.11ac External AntennaRRegulatory Domain Configurable

(Note: Cisco discount and Stock always changed, we will try most effort to follow it but can not ensure every web was changed accordingly. So Our Products Service will contact you after order if meet such special condition.)

AIR-AP3802P-R-K9C is one of the Cisco 3800 Series Access Points. The Cisco Aironet 3800 Wi-Fi access points are designed for large enterprise organizations that rely on Wi-Fi to engage with customers. The 3800 series provides multiple gigabit uplink speeds of 2.5 Gbps and 5 Gbps in addition to 100-Mbps and 1-Gbps speeds. It also delivers new 802.11ac Wave 2 standard. Cisco Aironet 3800 Series Wi-Fi access points are highly versatile and deliver the most functionality of any access points in the industry. AIR-AP3802P-R-K9C is designed for indoor, challenging environments, with external antennas. Besides, it providesRregulatory domain, and Dual-band controller-based 802.11a/g/n/ac, configurable.

Quick Specification

Table 1 shows the quick specification of AIR-AP3802P-R-K9C.

Model	AIR-AP3802P-R-K9C
Description	802.11ac Wave 2 AP w/CleanAir, 4x4:3, Mod, External Antenna, mGig, R Regulatory Domain, Configurable
Frequency band and 20-MHz operating channels	R (R regulatory domain): ● 2.412 to 2.472 GHz; 13 channels ● 5.180 to 5.320 GHz; 8 channels ● 5.660 to 5.700 GHz; 3 channels ● 5.745 to 5.805 GHZ; 4 channels
Antenna	External Antenna
Permit Antenna Gains	Up to 13 dBi
Features	● 4x4 MU-MIMO with three spatial streams ● MRC ● 802.11ac beamforming ● 20-, 40-, 80, 160-MHz channels ● PHY data rates up to 5.2 Gbps ● Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) ● 802.11 DFS ● CSD support
Interfaces	● 2 Ethernet ports ● 100/1000/2500/5000 Multigigabit Ethernet (RJ-45) – IEEE 802.3bz ◦ CAT 5e cabling ◦ Higher-quality 10GBASE-T (CAT 6/6a) cabling ● 100/1000BASE-T autosensing (RJ-45 - AUX port) ● Management console port (RJ-45)
System memory	● 1024 MB DRAM ● 256 MB flash
Dimensions (W x L x H)	8.66 x 8.68 x 2.62 in. (22 x 22 x 6.7 cm)
Weight	4.6 lb (2.09 kg)

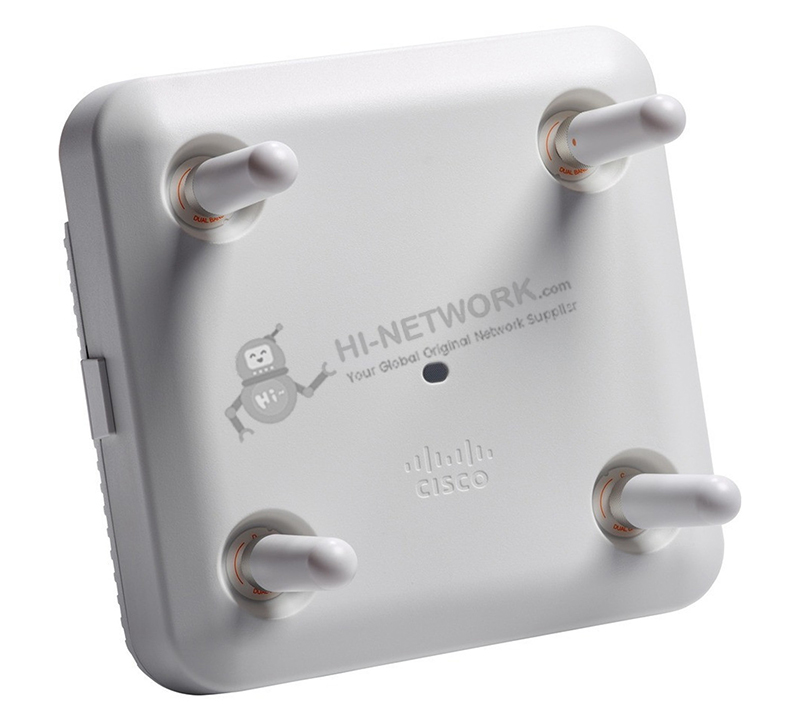

Figure 1 shows the appearance of AIR-AP3802P-R-K9C.

front-air-ap3802p-r-k9c-datasheet

Product Details

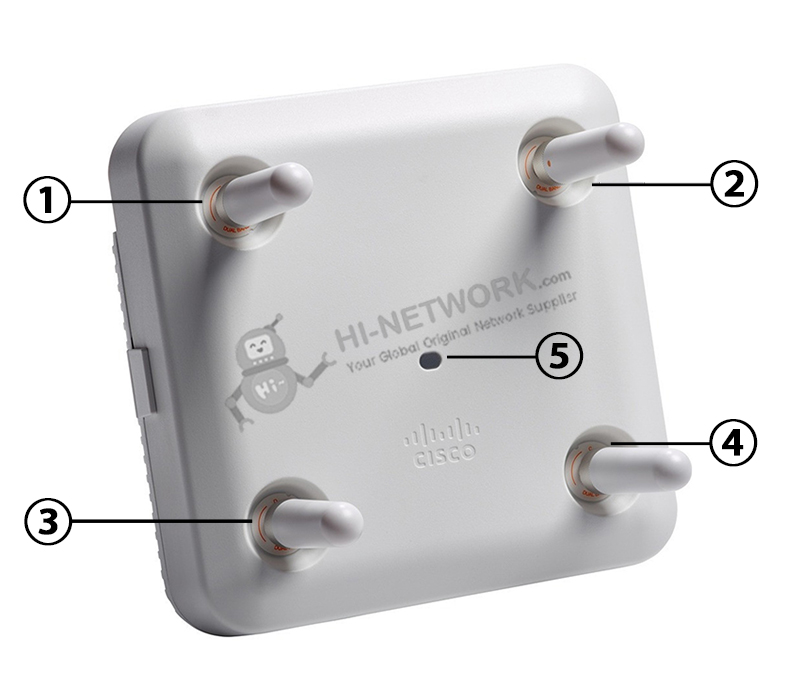

Figure 2 shows the face of AIR-AP3802P Model.

face-air-ap3802p-r-k9c-datasheet

Note:

(1)	Dual-band antenna connector A with antenna	(4)	Dual-band antenna connector C with antenna
(2)	Dual-band antenna connector B with antenna	(5)	Status LED
(3)	Dual-band antenna connector D with antenna

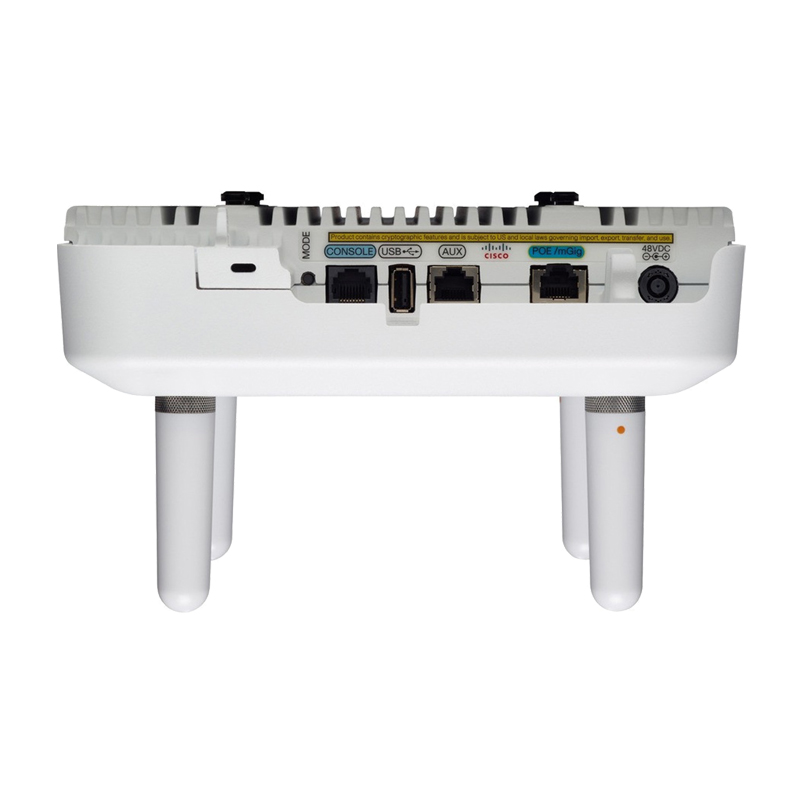

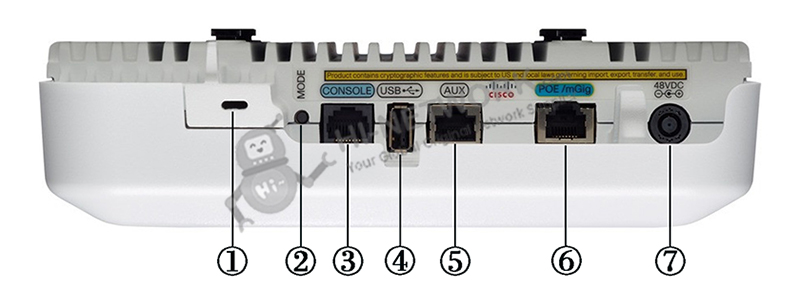

Figure 3 shows ports and connections on the head of the AP.

ports-air-ap3802p-r-k9c-datasheet

Note:

(1)	Kensington lock slot	(5)	AUX / Gigabit Ethernet port
(2)	Mode button	(6)	PoE / mGig port
(3)	Console port	(7)	48 VDC power port
(4)	USB port

Compare to Similar Items

Table 2 shows the comparison between two APs.

Model	AIR-AP3802P-R-K9C	AIR-AP3802P-R-K9
Description	802.11ac Wave 2 AP w/CleanAir, 4x4:3, Mod, External Antenna, mGig, R Regulatory Domain, Configurable	802.11ac Wave 2 AP w/CleanAir, 4x4:3, Mod, External Antenna, mGig, R Regulatory Domain
Antenna	External Antenna	External Antenna
Permit Antenna Gains	Up to 13 dBi	Up to 13 dBi
Interfaces	● 2 Ethernet ports ● 100/1000/2500/5000 Multigigabit Ethernet (RJ-45) ● CAT 5e cabling ● Higher-quality 10GBASE-T (CAT 6/6a) cabling ● 100/1000BASE-T autosensing (RJ-45 - AUX port) ● Management console port (RJ-45)	● 2 Ethernet ports ● 100/1000/2500/5000 Multigigabit Ethernet (RJ-45) ● CAT 5e cabling ● Higher-quality 10GBASE-T (CAT 6/6a) cabling ● 100/1000BASE-T autosensing (RJ-45 - AUX port) ● Management console port (RJ-45)
Regulatory Domain	R (R regulatory domain): ● 2.412 to 2.472 GHz; 13 channels ● 5.180 to 5.320 GHz; 8 channels ● 5.660 to 5.700 GHz; 3 channels ● 5.745 to 5.805 GHZ; 4 channels	R (R regulatory domain): ● 2.412 to 2.472 GHz; 13 channels ● 5.180 to 5.320 GHz; 8 channels ● 5.660 to 5.700 GHz; 3 channels ● 5.745 to 5.805 GHZ; 4 channels
