Cisco AIR-AP3802I-K-K9 Aironet 3802i Access Point 802.11ac Internal Antenna K Regulatory Domain

(Note: Cisco discount and Stock always changed, we will try most effort to follow it but can not ensure every web was changed accordingly. So Our Products Service will contact you after order if meet such special condition.)

AIR-AP3802I-K-K9 is one of the Cisco 3800 Series Access Points. The Cisco Aironet 3800 Wi-Fi access points are designed for large enterprise organizations that rely on Wi-Fi to engage with customers. The 3800 series provides multiple gigabit uplink speeds of 2.5 Gbps and 5 Gbps in addition to 100-Mbps and 1-Gbps speeds. It also delivers new 802.11ac Wave 2 standard. Cisco Aironet 3800 Series Wi-Fi access points are highly versatile and deliver the most functionality of any access points in the industry. AIR-AP3802I-K-K9 is designed for indoor, challenging environments, with internal antennas. Besides, it provides K regulatory domain.

Quick Specification

Table 1 shows the quick specification of AIR-AP3802I-K-K9.

Model	AIR-AP3802I-K-K9
Description	802.11ac Wave 2 AP w/CleanAir, 4x4:3, Mod, Internal Antenna, mGig, K Regulatory Domain
Frequency band and 20-MHz operating channels	K (K regulatory domain): ● 2.412 to 2.472 GHz; 13 channels ● 5.180 to 5.320 GHz; 8 channels ● 5.500 to 5.620 GHz; 7 channels ● 5.745 to 5.805 GHz; 4 channels
Antenna	Internal Antenna
Features	● 4x4 MU-MIMO with three spatial streams ● MRC ● 802.11ac beamforming ● 20-, 40-, 80, 160-MHz channels ● PHY data rates up to 5.2 Gbps ● Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) ● 802.11 DFS ● CSD support
Interfaces	● 2 Ethernet ports ● 100/1000/2500/5000 Multigigabit Ethernet (RJ-45) – IEEE 802.3bz ◦ CAT 5e cabling ◦ Higher-quality 10GBASE-T (CAT 6/6a) cabling ● 100/1000BASE-T autosensing (RJ-45 - AUX port) ● Management console port (RJ-45)
System memory	● 1024 MB DRAM ● 256 MB flash
Dimensions (W x L x H)	8.66 x 8.68 x 2.46 in. (22 x 22 x 6.25 cm)
Weight	4.6 lb (2.09 kg)

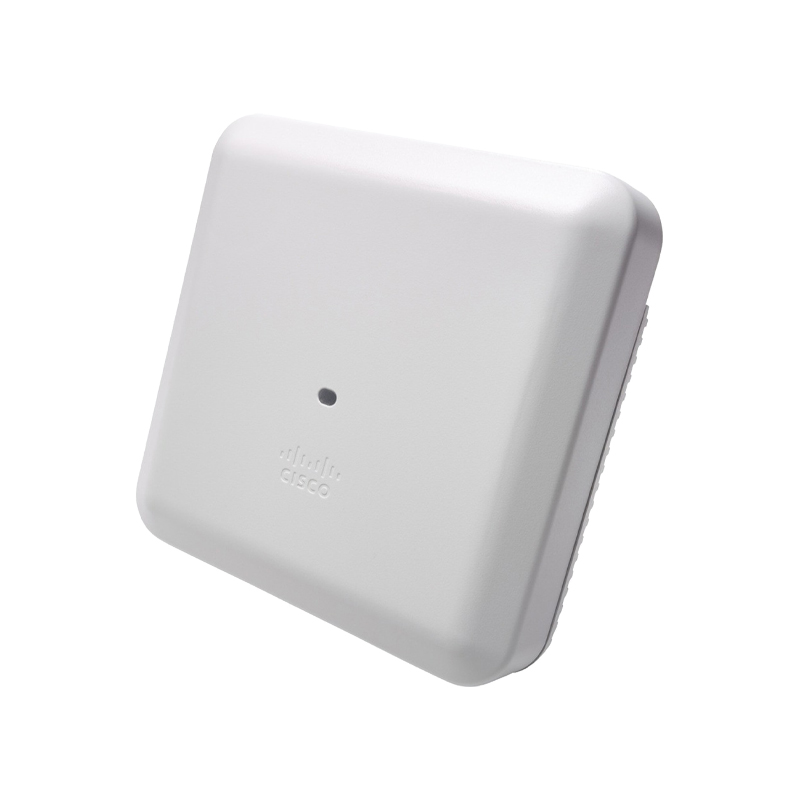

Figure 1 shows the appearance of AIR-AP3802I-K-K9.

front-air-ap3802i-k-k9-datasheet

Product Details

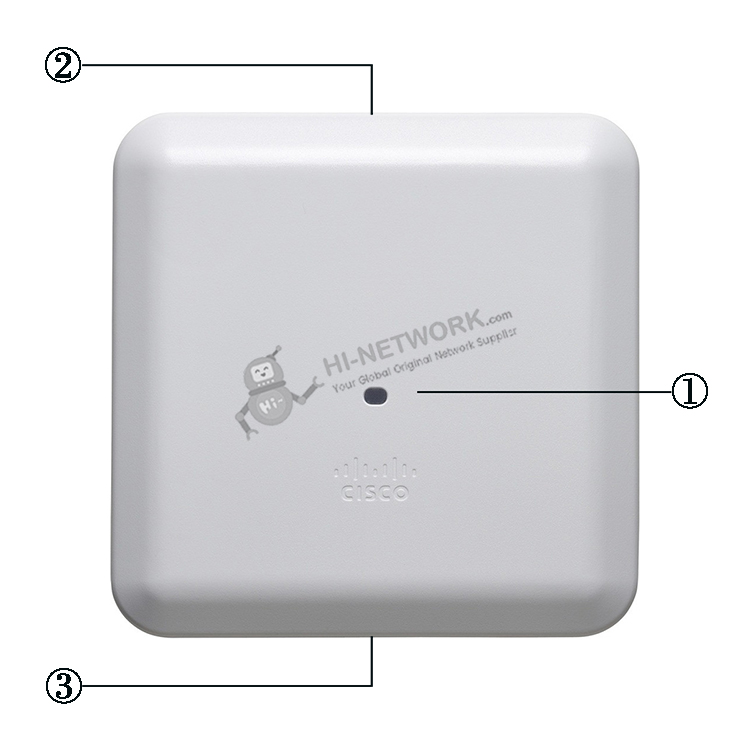

Figure 2 shows the face of AIR-AP3802I Model.

face-air-ap3802i-k-k9-datasheet

Note:

(1)	Status LED
(2)	Location of the ports and connectors on the head of the AP
(3)	Location of the module connector port on the base of the AP

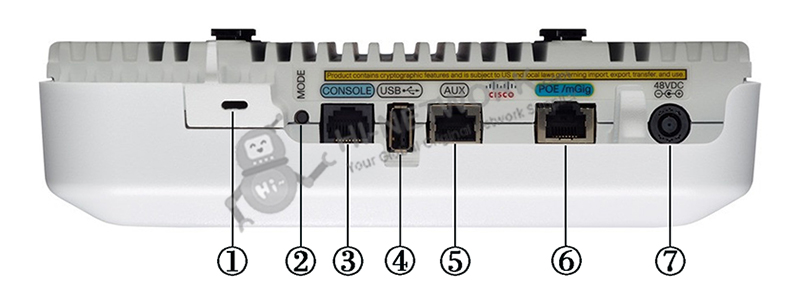

Figure 3 shows ports and connections on the head of the AP.

ports-air-ap3802i-k-k9-datasheet

Note:

(1)	Kensington lock slot	(5)	AUX / Gigabit Ethernet port
(2)	Mode button	(6)	PoE / mGig port
(3)	Console port	(7)	48 VDC power port
(4)	USB port

Compare to Similar Items

Table 2 shows the comparison between two APs.

Model	AIR-AP3802I-K-K9	AIR-AP3802I-N-K9
Antenna	Internal Antenna	Internal Antenna
Interfaces	● 2 Ethernet ports ● 100/1000/2500/5000 Multigigabit Ethernet (RJ-45) ● CAT 5e cabling ● Higher-quality 10GBASE-T (CAT 6/6a) cabling ● 100/1000BASE-T autosensing (RJ-45 - AUX port) ● Management console port (RJ-45)	● 2 Ethernet ports ● 100/1000/2500/5000 Multigigabit Ethernet (RJ-45) ● CAT 5e cabling ● Higher-quality 10GBASE-T (CAT 6/6a) cabling ● 100/1000BASE-T autosensing (RJ-45 - AUX port) ● Management console port (RJ-45)
Regulatory Domain	K (K regulatory domain): ● 2.412 to 2.472 GHz; 13 channels ● 5.180 to 5.320 GHz; 8 channels ● 5.500 to 5.620 GHz; 7 channels ● 5.745 to 5.805 GHz; 4 channels	N (N regulatory domain): ● 2.412 to 2.462 GHz; 11 channels ● 5.180 to 5.320 GHz; 8 channels ● 5.745 to 5.825 GHz; 5 channels

Get More Information

Do you have any question about AIR-AP3802I-K-K9?

Specific Data Sheet:

AIR-AP3802I-K-K9 Specification
Description	802.11ac Wave 2 AP w/CleanAir, 4x4:3, Mod, Internal Antenna, mGig, K Regulatory Domain
Frequency band and 20-MHz operating channels	K (K regulatory domain): ● 2.412 to 2.472 GHz; 13 channels ● 5.180 to 5.320 GHz; 8 channels ● 5.500 to 5.620 GHz; 7 channels ● 5.745 to 5.805 GHz; 4 channels
Software	● Cisco Unified Wireless Network Software Release 8.2.111.0 or later ● Cisco IOS ® XE Software Release 16.3
Supported Wireless LAN Controllers	AireOS Wireless Controllers ● Cisco 2500 Series Wireless Controllers, Cisco 3500 Series Wireless Controllers, Cisco Wireless Controller Module for ISR G2, Cisco Wireless Services Module 2 (WiSM2) for Catalyst ® 6500 Series Switches, Cisco 5500 Series Wireless Controllers, Cisco Flex ® 7500 Series Wireless Controllers, Cisco 8500 Series Wireless Controllers, Cisco 9800 Series Wireless Controllers, Cisco Virtual Wireless Controller ● Cisco Catalyst 3850 Series and 3650 Series Switches ● Cisco Mobility Express
802.11n version 2.0 (and related) capabilities	● 4x4 MIMO with three spatial streams ● Maximal Ratio Combining (MRC) ● 802.11n and 802.11a/g beamforming ● 20- and 40-MHz channels ● PHY data rates up to 450 Mbps (40 MHz with 5 GHz) ● Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) ● 802.11 Dynamic Frequency Selection (DFS) ● Cyclic Shift Diversity (CSD) support
802.11ac Wave 1 capabilities	● 4x4 MIMO with three spatial streams ● MRC ● 802.11ac beamforming ● 20-, 40-, and 80-MHz channels ● PHY data rates up to 1.3 Gbps (80 MHz in 5 GHz) ● Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) ● 802.11 DFS ● CSD support
802.11ac Wave 2 capabilities	● 4x4 MU-MIMO with three spatial streams ● MRC ● 802.11ac beamforming ● 20-, 40-, 80, 160-MHz channels ● PHY data rates up to 5.2 Gbps ● Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) ● 802.11 DFS ● CSD support
Wi-Fi Alliance Certified	● Wi-Fi Certified a, b, g, n, ac ● Wi-Fi Vantage ● WMM ● Passpoint
Integrated Antenna	Flexible radio (either 2.4 GHz or 5 GHz) ● 2.4 GHz, gain 4 dBi, internal antenna, omnidirectional in azimuth ● 5 GHz, gain 6 dBi, internal directional antenna, elevation plane beamwidth 90° Dedicated 5-GHz radio ● 5 GHz, gain 5 dBi, internal antenna, omnidirectional in azimuth
Interfaces	● 2 Ethernet ports ● 100/1000/2500/5000 Multigigabit Ethernet (RJ-45) – IEEE 802.3bz ◦ CAT 5e cabling ◦ Higher-quality 10GBASE-T (CAT 6/6a) cabling ● 100/1000BASE-T autosensing (RJ-45 - AUX port) ● Management console port (RJ-45)
Indicators	● Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors
Dimensions (W x L x H)	● Access point (without mounting bracket): 8.66 x 8.68 x 2.46 in. (22 x 22 x 6.25 cm)
Weight	● 4.6 lb (2.09 kg)
Input power requirements	● 802.3at PoE+, Cisco Universal Power over Ethernet (Cisco UPOE ®) ● 802.3at power injector (AIR-PWRINJ6=) ● 50W power supply (AIR-PWR-50=)
Power draw	● 25.8W at the PSE (22.5W at the PD) with all features enabled except for the USB 2.0 port ● 30W at the PSE (25.5W at the PD) with the USB 2.0 port enabled
Environmental	● Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C) ● Nonoperating (storage) altitude test: 25˚C, 15,000 ft. ● Operating temperature: 32° to 104°F (0° to 40°C) ● Operating humidity: 10% to 90% percent (noncondensing) ● Operating altitude test: 40˚C, 9843 ft.
System Memory	● 1024 MB DRAM ● 256 MB flash
Warranty	Limited Lifetime Hardware Warranty
