Description

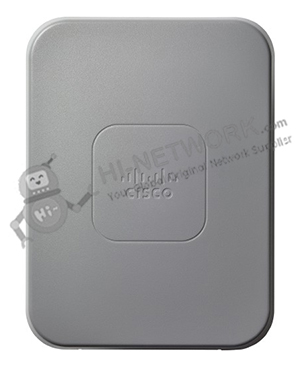

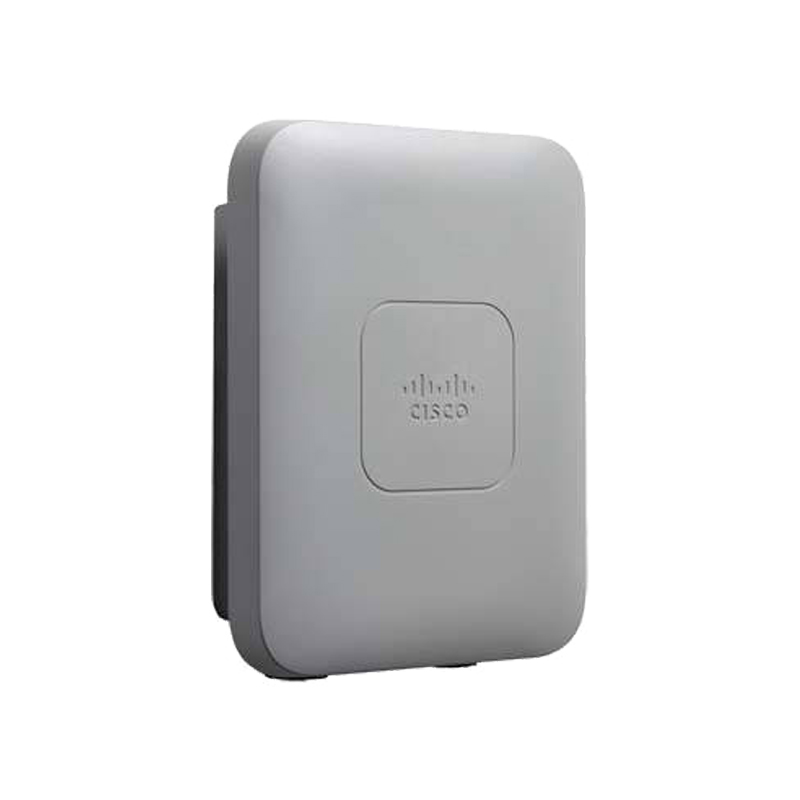

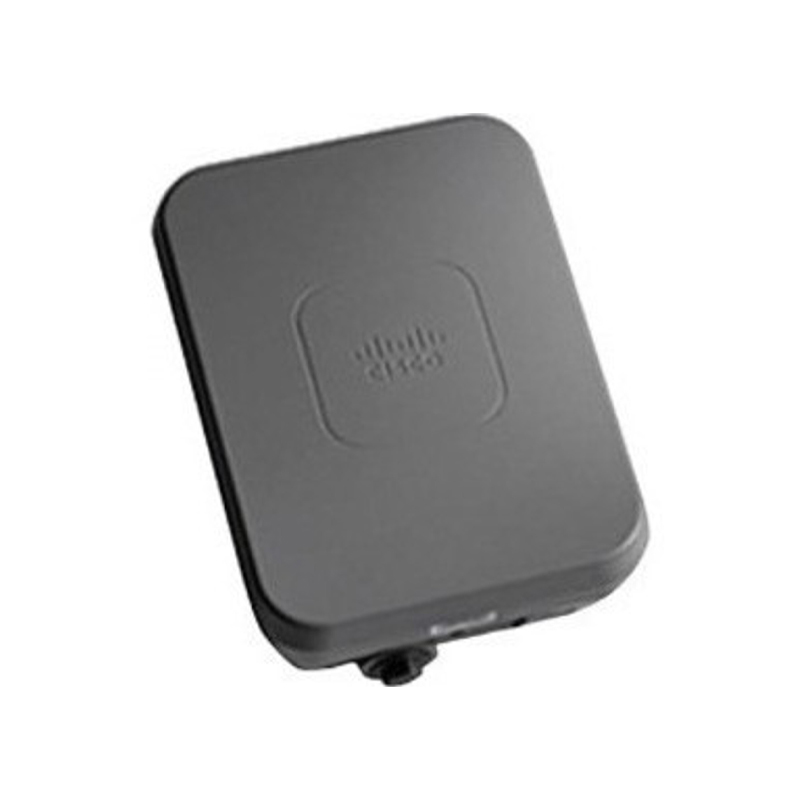

802.11ac Wave 2 Low-Profile Outdoor AP, Internal Directional Antenna, F Regulatory Domain

Regulatory Domain

F (F regulatory domain):

● 2.412 to 2.472 GHz, 13 channels

● 5.745 to 5.805 GHz, 4 channels

802.11n (and related) capabilities

● 2 x 2 MIMO with two spatial streams

● MRC

● 20- and 40-MHz channels

● PHY data rates up to 450 Mbps

● Packet aggregation: A-MPDU (Tx/Rx)  and A-MSDU (Tx/Rx)

● 802.11 DFS

● CSD support

802.11ac Wave 1 and 2 capabilities

● 2 x 2 MIMO with two spatial streams

● Multi- and single-user MIMO

● Maximal Ratio Combining (MRC)

● 802.11ac beamforming (transmit  beamforming)

● 20-, 40-, and 80-MHz channels

● PHY data rates up to 1.3 Gbps (80 MHz  in 5 GHz)

● Packet aggregation: A-MPDU (Tx/Rx)  and A-MSDU (Tx/Rx)

● 802.11 Dynamic Frequency Selection  (DFS)

● Cyclic-Shift-Diversity (CSD) support

Antenna

Internal Directional Antenna

Interfaces

● WAN port 10/100/1000BASE-T Ethernet,  autosensing (RJ-45), PoE in

● SFP port (fiber or electrical)

● Management console port (RJ-45)

● Multicolor LED

● DC power input

● Reset button

Uplink options

Ethernet, SFP, and wireless mesh

Dimensions (W x L x H)

9.0 x 6.8 x 4.3 in. (22.9 x 17.1 x 10.9  cm)

Weight

5.7 lb (2.6 kg)

Environmental

Operating temperature:

● –40 to 65°C (–40 to 149°F) ambient  air with no solar loading

● –40 to 55°C (–40 to 131°F) ambient  air with solar loading

Storage temperature: –40 to 85°C (–40  to 185°F)

Humidity: 5 - 95%, non-condensing

Wind resistance:

● Up to 100-mph sustained winds

● Up to 165-mph wind gusts

Power consumption

25 W

Powering options

● AC (with AIR-PWRADPT-RGD1=, AC/DC  outdoor power adapter)

● 44–57 VDC input

● Universal Power of Ethernet (Cisco  UPoE+ and Cisco UPoE), 802.3at

● Cisco power injectors:

AIR-PWRINJ-60RGD1= (outdoor rated, 60W,  with NEMA 5-15 AC plug)

AIR-PWRINJ-60RGD2= (outdoor rated, 60W,  unterminated AC cable)

AIR-PWRINJ6= (indoor, 802.3at)

Warranty

1-year limited hardware warranty
