CBS110-16T CISCO 110 Series Unmanaged 16 Port Rack Mountable Switch Alternative of SF95D-16

USD

219 ~~$230~~ (4.8% OFF)

4.8 4.8/5.0 Reviews Q/A 109 sold/Mon
Detail:	Cisco Business 110 Unmanaged Switch, 16 10/100/1000 ports
Model:	CBS110-16T
Condition:	New Factory Sealed; In Stock
Related:
Warranty:	3 Years-Warranty 100% Money-back Free After-Sales Service
Shipping:	Air Shipping to United States , Most Customers Receive during 5-7 Days ? If you finish the payment today, your order will arrive within the estimated delivery time.
Ships to: 6.5	2-7 Days US$
Payment:	Pay by wire transfer. Pay with your paypal. Pay with your Visa credit card. Pay with your Mastercard credit card. Pay with your Discover Card. Pay by Western Union. More

Description
Specification
Reviews
Q&A
Warranty
Download

CBS110-16T CISCO 110 Series Unmanaged 16 Port Rack Mountable Switch Alternative of SF95D-16

(Note: Cisco discount and Stock always changed, we will try most effort to follow it but can not ensure every web was changed accordingly. So Our Products Service will contact you after order if meet such special condition.)

Cisco Business 110 Series Unmanaged Switches, part of the Cisco Business networking portfolio, are a family of affordable switches that provide Gigabit Ethernet connectivity for your small business network. Available in desktop and rack-mount models, these switches are designed to suit any small business with basic network needs and are optimized for power efficiency. They provide robust network connectivity your business demands, as well as added reliability with advanced features such as Quality of Service (QoS), loop detection, and cable diagnostics, all in a switch that you can set up yourself in minutes.

Quick Specification:

Product Code	CBS110-16T
Capacity in millions of packets per second (mpps) (64-byte packets)	23.8 mpps
Switching capacity in gigabits per second (Gbps)	32 Gbps
Total system ports	16 Gigabit Ethernet
RJ-45 ports	16 Gigabit Ethernet
Packet Buffer	2 Mbit
Unit dimensions (W x D x H)	279 x 170 x 44 mm (11 x 6.7 x 1.73 in)

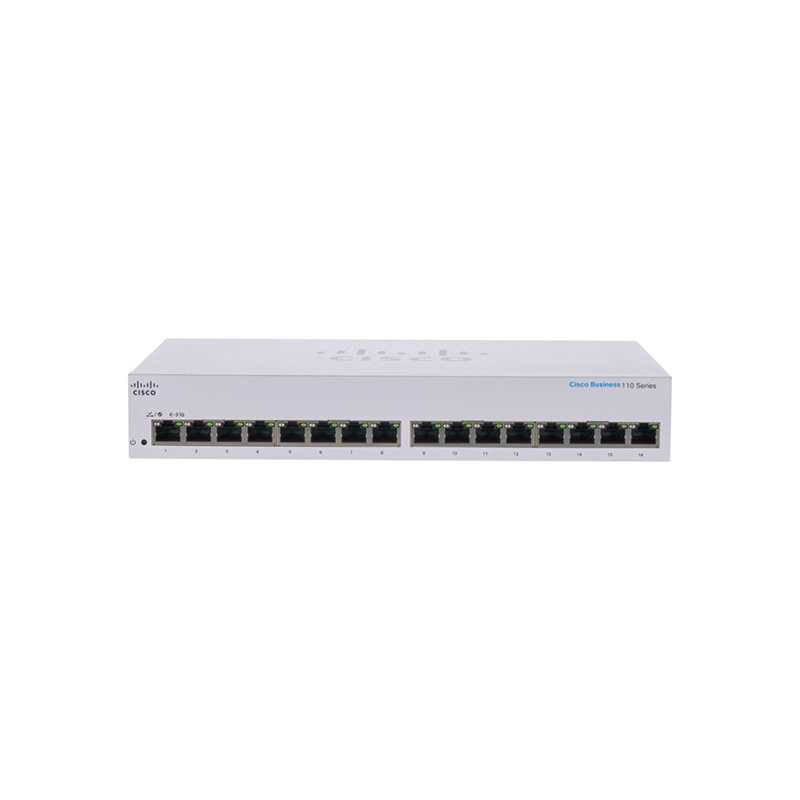

The Front Panel:

cbs110-16t-front-water-datasheet

The Back Panel:

cbs110-16t-back-water-datasheet

-High performance
Cisco Business 110 Series switches deliver the performance you need to run your business applications, including bandwidth-intensive cloud applications and video services, and to avoid slow and sluggish networks. They support Gigabit Ethernet speeds, unlocking a new level of capacity and performance in your business network and letting you transfer large files in seconds.
-Reduced energy costs
Cisco Business 110 Series switches are designed to help conserve energy by optimizing power use without compromising performance, which protects our environment and reduces your energy costs. In addition, they support the Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption by monitoring the amount of traffic on an active link and putting the link into a sleep state during quiet periods.
-Peace of mind
Cisco Business 110 Series switches deliver the rock-solid reliability you expect from a Cisco switch. The solution has been rigorously tested to make sure of optimal uptime and performance. In addition, the limited lifetime hardware warranty provides peace of mind.

The Accessories for CBS-16T

Related Modules:

Model	Description
CBS110-8T-D	Cisco Business 110 Unmanaged Switch, 8 10/100/1000 ports
CBS110-24T	Cisco Business 110 Unmanaged Switch, 24 10/100/1000 ports, 2 Gigabit SFP (combo with 2 10/100/1000 ports)
CBS110-16T	Cisco Business 110 Unmanaged Switch, 16 10/100/1000 ports
CBS110-16PP	Cisco Business 110 Unmanaged Switch, 16 10/100/1000 ports (8 support PoE with 64W power budget)
CBS110-24PP	Cisco Business 110 Unmanaged Switch, 24 10/100/1000 ports (12 support PoE with 100W power budget), 2 Gigabit SFP (combo with 2 10/100/1000 ports)
CBS110-5T-D	Cisco Business 110 Unmanaged Switch, 5 10/100/1000 ports
CBS110-8PP-D	Cisco Business 110 Unmanaged Switch, 8 10/100/1000 ports (4 support PoE with 32W power budget)

Get More Information

Do you have any question about the CBS110-16T?

Specific Data Sheet:

Specifications	Description
Capacity in millions of packets per second (mpps) (64-byte packets)	23.8 Mpps
Switching capacity in gigabits per second (Gbps)	32 Gbps
Total system ports	16 Gigabit Ethernet
RJ-45 ports	16 Gigabit Ethernet
Packet Buffer	2 Mbit
Unit dimensions (W x D x H)	279 x 170 x 44 mm (11 x 6.7 x 1.73 in)
General
Head-of-line (HOL) blocking	HOL blocking prevention
MAC table	2K addresses for CBS110-5T-D 8K addresses for all other models
Jumbo frame	9216 bytes
Quality of Service (QoS)	802.1p priority based, 4 hardware queues, priority queuing and Weighted Round-Robin (WRR)
Loop detection	Helps discover loops in the network to avoid broadcast storms
Cable diagnostics	Quickly identify and troubleshoot network cable faults and/or shorts
Media-dependent interface	Automatic Media Dependent Interface (MDI) and MDI crossover (MDI-X)
Standards	IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3z Gigabit Ethernet, IEEE 802.3x Flow Control, 802.1p priority, Energy Efficient Ethernet, 802.3af, Power over Ethernet
Hardware
LEDs	Power, link/activity (cable diagnostics, loop detection), Gigabit, * PoE, * Max PoE. * if present
Cabling type	Category 5e or better
Mounting options	Desktop, wall-mount or rack mount
Physical security lock	Kensington lock slot
Flash	16 MB for CBS110-16T, CBS110-16PP 8 MB for CBS110-24T, CBS110-24PP
CPU	400 MHz ARM for CBS110-16T, CBS110-16PP, CBS110-24T, CBS110-24PP
CPU memory	128 MB for CBS110-16T, CBS110-16PP 64 MB for CBS110-24T, CBS110-24PP
Supported SFP modules	SKU	Media	Speed	Maximum distance
	MGBSX1	Multimode fiber	1000 Mbps	500 m
	MGBLX1	Single-mode fiber	1000 Mbps	10 km
	MGBLH1	Single-mode fiber	1000 Mbps	40 km
	MGBT1	UTP cat 5e	1000 Mbps	100 m
Environmental
Power	CBS110-5T-D, CBS110-8T-D: DC 12V, 1.0A CBS110-8PP-D: DC 48V, 1.25A CBS110-16T, CBS110-16PP, CBS110-24T, CBS110-24PP: 110-240VAC, 50-60 Hz, internal, universal
Green (power efficiency)	Supports IEEE 802.3az on all copper Gigabit Ethernet ports
Compliance/certifications	UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A, FCC Class B * *select models
Operating temperature	32° to 104°F (0° to 40°C)
Storage temperature	–4° to 158°F (–20° to 70°C)
Operating humidity	10% to 90%, relative, noncondensing
Storage humidity	5% to 90%, relative, noncondensing
Warranty	Limited lifetime
Package contents
● Cisco Business 110 Series switch ● Power cord or adapter ● Quick start guide ● Mounting kit
Minimum requirements
● Devices supporting 802.3 Ethernet, 802.3u Fast Ethernet, or 802.3ab Gigabit Ethernet ● Cat5e or better Ethernet cable ● Network interface card for each computer
