Product Description

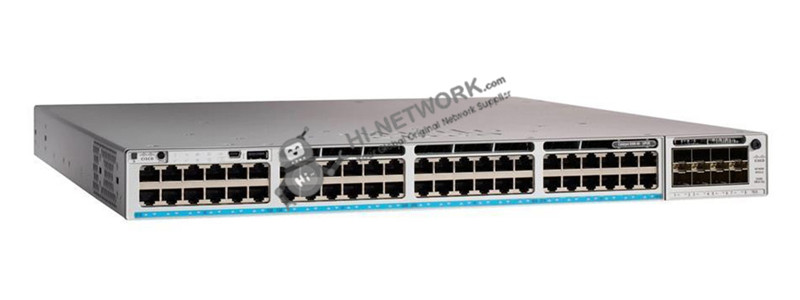

Catalyst 9300 48-port of 5Gbps Network Advantage

Total 10/100/1000 or Multigigabit copper ports

48x 5 Gbps UPOE ports (100M, 1G, 2.5G, 5G)

Uplink Configuration

Modular Uplinks

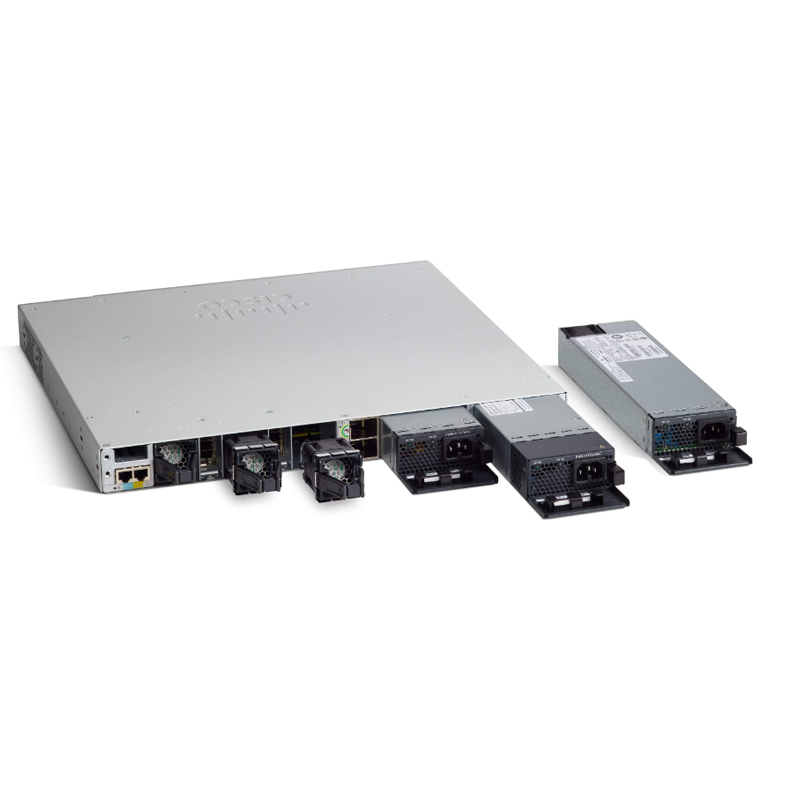

Default AC power supply

1100W AC

Available PoE power

645W

Dimensions (H x W x D)

1.73 x 17.5 x 17.5 Inches

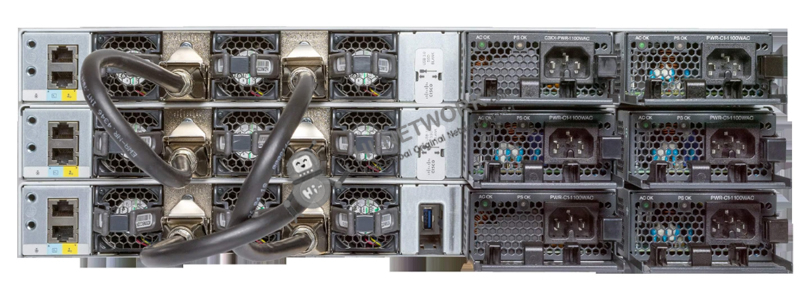

Cisco StackWise-480

Yes

Cisco StackPower

Yes

Default power supply

PWR-C1-1100WAC-P/2

Switching capacity

640 Gbps

Stacking bandwidth

480 Gbps

Forwarding rate

476.19 Mpps

Total number of MAC addresses

32,000

Total number of IPv4 routes (ARP plus learned routes)

32,000 (24,000 direct routes and 8000 indirect routes)

IPv4 routing entries

32,000

IPv6 routing entries

16,000

Multicast routing scale

8000

QoS scale entries

5120

ACL scale entries

5120

Packet buffer per SKU

16 MB buffer for 24- or 48-port Gigabit Ethernet modelst

32 MB buffer for 24 and 48-port Multigigabit

FNF entries

64,000 flow on 24- and 48-port Gigabit Ethernet models

128,000 flows on 24-port Multigigabit

DRAM

8 GB

Flash

16 GB

VLAN IDs

4094

Total Switched Virtual Interfaces (SVIs)

1000

Jumbo frames

9198 bytes

Total routed ports Catalyst per 9300 Series stack

448

Wireless bandwidth per switch

Up to 96 Gbps on 48-port Gigabit Ethernet model

Mean time between failures – MTBF (hours)

198,647

Safety certifications

•UL 60950-1

•CAN/CSA-C222.2 No. 60950-1

•EN 60950-1

•IEC 60950-1

•AS/NZS 60950.1

•IEEE 802.3

Electromagnetic emissions certifications

•47 CFR Part 15

•CISPR22 Class A

•EN 300 386 V1.6.1

•EN 55022 Class A

•EN 55032 Class A

•CISPR 32 Class A

•EN61000-3-2

•EN61000-3-3

•ICES-003 Class A

•TCVN 7189 Class A

•V-3 Class A

•CISPR24

•EN 300 386

•EN55024

•TCVN 7317

• V-2/2015.04

•V-3/2015.04

•CNS13438

•KN32

•KN35

•IEC 61000-6-1

•EN 61000-6-1

Environmental

Reduction of Hazardous Substances

(ROHS) 5
