Detail: | Cisco ASA 5500-X Next Generation, ASA5545-FPWR-K9, 8*GE ports, 1GE Mgmt, AC, 3DES/AES, AVC, FirePower, FireSIGHT, unlimited user nodes, 2500 IPsec VPN, Active/Active, 2 SSD |
Model: | ASA5545-FPWR-K9 |
Condition: | Sealed New; In Stock |
Related: | ASA5545-K8 CISCO Firewalls In Stock 8GE Data 1GE Mgmt AC DES ASA5545-K9 CISCO Firewalls In Stock Sealed New ASA5525-FPWR-K9 FirePOWER 8GE Port data Cisco Firewalls ASA5516-FPWR-K9 FirePOWER 8GE data Cisco Firewalls |
Warranty: |
3 Year-Warranty
100% Money-back
Free After-Sales Service
|
Shipping: |
Air Shipping to
United States
, Most Customers Receive during 5-7 Days
?
If you finish the payment today,
your order will arrive within the estimated delivery time. |
Ships to:
20.1
|
2-7 Days
US$
|
Payment: |
More
|
(Note: Cisco discount and Stock always changed, we will try most effort to follow it but can not ensure every web was changed accordingly. So Our Products Service will contact you after order if meet such special condition.)
ASA5545-FPWR-K9 firewall is the entry-level next-generation firewall system. It is designed for big-size enterprise. The next-generation firewall combines with FirePower services which offers greater visibility and automation with superior response to protect the network. it offers the industry’s first adaptive threat focus next- generation firewall which includes SourceFires next-generation Intrusion Prevention System or engine IPS and advanced Malware capabilities. This comprehensive next-generation solution lowers costs in simplifies complexity. Cisco's integrated approach correlated threats with vulnerabilities to determine their impact.
Product Code | ASA5545-FPWR-K9 |
Firepower service | Supported, including Firesight management Center, ASDM 9.X |
Interfaces | 8 copper GE ports, 1 copper GE management port, 1 expansion slot |
Stateful inspection throughput (maximum) | 3 Gbps |
3DES/AES VPN throughput | 400 Mbps |
IPsec VPN peers | 2500 |
Virtual interfaces (VLANs) | 300 |
Memory | 12 GB |
Flash | 8 GB |
Height (rack units) | 1 RU |
Dimensions (D x H x W) | 4.24 x 42.9 x 48.4 cm |
LED | Color | Description |
BOOT | Flashing green | Power-up diagnostics are running, or system is booting. |
Solid green | System has passed power-up diagnostics. | |
Off | Power-up diagnostics are not operational. | |
ACTIVE | Solid green | Failover pair is operating normally. |
Off | Failover is not operational. | |
PS | - | Power supply status |
ALARM | Off | Normal operating system function. |
Solid amber | Critical Alarm indicating one or more of the following: –a major failure of a hardware or software component. –an over-temperature condition. –power voltage is outside of the tolerance range. | |
VPN | Solid green | VPN tunnel is established. |
Off | No VPN tunnel established. | |
HD0 | Flashing green | Proportioned to read/write activity. |
Solid amber | Hard-disk drive failure. | |
Off | No hard-disk drive present. | |
HD1 | Flashing green | Proportioned to read/write activity. |
Solid amber | Hard-disk drive failure. | |
Off | No hard-disk drive present. |
Note:

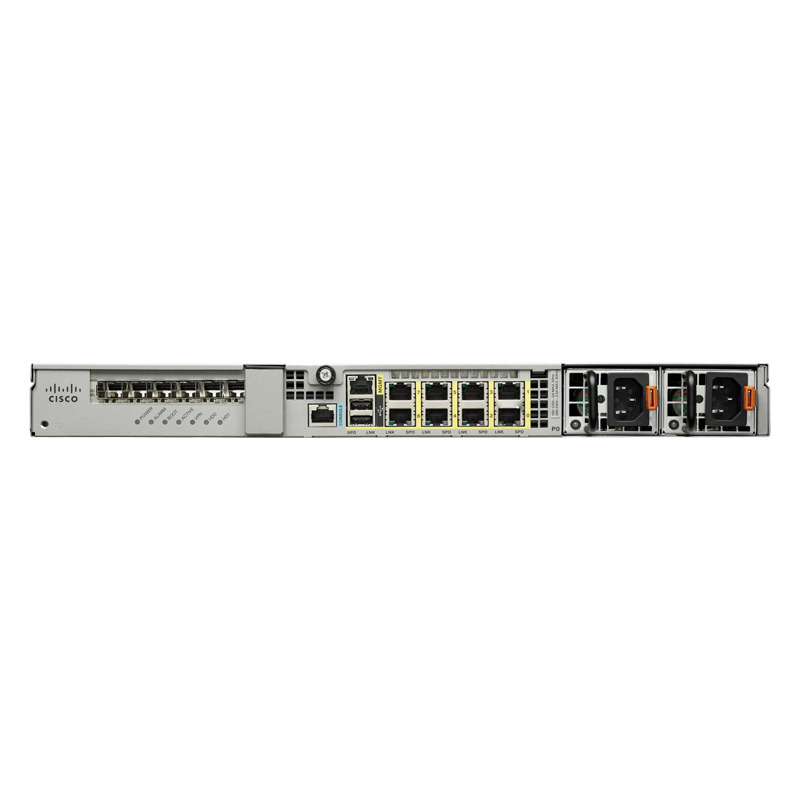

(1) | LEDs | (5) | AC Socket |
(2) | One Console port | (6) | one Management 0/0 interface |
(3) | Two USB Ports | (7) | I/O slot |
(4) | Eight Gigabit Ethernet data interfaces |
·There are seven LEDs on the back panel: POWER, ALARM, BOOT, ACTIVE, VPN, HD0 and HD1.
Licenses | Description |
L-ASA5545-TA-3Y | Cisco ASA5545 FirePOWER IPS and Apps 3YR Subscription |
L-ASA5545-TAC-3Y | Cisco ASA5545 FirePOWER IPS, Apps and URL 3YR Subscription |
L-ASA5545-TAM-3Y | Cisco ASA5545 FirePOWER IPS, Apps and AMP 3YR Subscription |
L-ASA5545-TAMC-3Y | Cisco ASA5545 FirePOWER IPS, Apps, AMP and URL 3YR Subscription |
L-ASA5545-URL-3Y | Cisco ASA5545 FirePOWER URL Filtering 3YR Subscription |
Models | ASA5545-FPWR-K9 | |
Firepower service | Yes | N/A |
Next-generation firewall throughput (multiprotocol) | 1 Gbps | 1 Gbps |
Memory | 12GB | 12GB |
Flash | 8GB | 8GB |
Height (rack units) | 1RU | 1RU |
Do you have any question about the ASA5545-FPWR-K9?
Contact us now via [email protected].
ASA5545-FPWR-K9 Specifications | |
Throughput: Application Control (AVC) | 1,500 Mbps |
Throughput: Application Control (AVC) and IPS | 1,000 Mbps |
Maximum concurrent sessions | 750,000 |
Maximum New Connections per second | 30,000 |
Supported applications | More than 3,000 |
URL categories | 80+ |
Number of URLs categorized | More than 280 million |
Centralized configuration, logging, monitoring, and reporting | Multi-device Cisco Security Manager (CSM) and Cisco Firepower Management Center |
On-Device Management | ASDM |
Feature | Cisco ASA 5545-X w/ FirePOWER Services |
Stateful inspection throughput (maximum1) | 3 Gbps |
Stateful inspection throughput (multiprotocol2) | 1.5 Gbps |
Triple Data Encryption Standard/Advanced Encryption Standard (3DES/AES) VPN throughput3 | 400 Mbps |
Users/nodes | Unlimited |
IPsec site-to-site VPN peers | 2500 |
Cisco AnyConnect Plus/Apex VPN maximum simultaneous connections5 | 25005 |
Virtual interfaces (VLANs) | 300 |
Security contexts5(included; maximum) | 2; 50 |
High availability4 | Active/Active and Active/Standby |
Integrated Wireless Access Point (See Cisco AP 702 datasheet for WiFi technical details) | N/A |
Expansion slot | 1 interface card |
User-accessible Flash slot | - |
USB 2.0 ports | 2 |
Integrated I/O | 8 GE copper |
Expansion I/O | 6 GE copper or 6 GE SFP |
Dedicated management port | Yes (1 GE) |
Serial ports | 1 RJ-45 console |
Solid-state drive | 2 slots, RAID 1 or 120 GB MLC SED |
Memory | 12 GB |
System flash | 8 GB |
System bus | Multibus architecture |
Temperature | 23 to 104°F (-5 to 40°C) |
Relative humidity | 90 percent |
Altitude | Designed and tested for 0 to 10,000 ft (3050 m) |
Temperature7 | -13 to 158°F (-25 to 70°C) |
Relative humidity | 10 to 90 percent |
Altitude | Designed and tested for 0 to 15,000 ft (4572 m) |
AC range line voltage | 100 to 240 VAC |
AC normal line voltage | 100 to 240 VAC |
AC current | 5A, 100 to 120V or 2.5A, 200 to 240V |
AC frequency | 50/60 Hz |
Dual-power supplies | Yes |
DC domestic line voltage | -40.5 to 56 VDC (-48 VDC nominal) |
DC international line voltage | -55 to -72 VDC (-60 VDC nominal) |
DC current | 15A (maximum input) |
Steady state | 86W |
Maximum peak | 125W |
Maximum heat dissipation | 427 Btu/hr |
Form factor | 1RU, 19-in. rack-mountable |
Weight (with AC power supply) | 16.82 lb (7.63 kg) with single power supply; 18.86 lb (8.61 kg) with dual power supply |
