Aruba JL726A 6200F 48G 4SFP+ Switch

2153
5
5/5.0
Q/A
35 Sold/Mon
Detail: Aruba 6200F 48G 4SFP+ Switch
Model: Aruba 6200F JL726A
Condition: Factory Sealed New
Related:
Warranty:
3 Years-Warranty
100% Money-back
Free After-Sales Service
Shipping:
Air Shipping to United States
, Most Customers Receive during 5-7 Days
?
If you finish the payment today,
your order will arrive within the
estimated delivery time.
Ships to:
11
2-7 Days US$
Payment:
  • Pay by wire transfer.
  • Pay with your paypal.
  • Pay with your Visa credit card.
  • Pay with your Mastercard credit card.
  • Pay with your Discover Card.
  • Pay by Western Union.
More
Quantity
- +
add to Cart quick quote
Follow us:
Tags
add to Cart quick quote
  • Description
  • Specification
  • Reviews
  • Q&A
  • Warranty
  • Download

Aruba JL726A 6200F 48G 4SFP+ Switch


The Aruba CX 6200 Switch Series is a next-gen family of stackable access switches ideal for enterprise branch offices, campuses, and SMB networks. Created for game-changing operational efficiency with built-in analytics and automation, the CX 6200 switches provide an enterprise-class access layer solution that’s simple and secure.

The Aruba CX 6200 Switch Series delivers unparalleled visibility with built-in analytics for real-time monitoring and troubleshooting to help fix problems faster.




Quick Specification


Table 1 shows the Quick Specification.

Model

JL726A

Description

Aruba 6200F 48G 4SFP+ Switch

Differentiator

Next-generation family of stackable access switches ideal for enterprise branch offices, campuses and SMB networks. 48x 10/100/1000BASE-T and 4x 1/10G SFP ports.

Ports

48x 10/100/1000BASE-T ports

4x 1/10G SFP ports

1x USB-C Console Port

1x OOBM

1x USB Type-A Host port

1x Bluetooth Adapter to be used with Aruba CX Mobile App

Latency

1 Gbps: 2.28 μSec

10 Gbps: 1.46 μSec

Throughput

Up to 130.9 Mpps

Routing/Switching Capacity

176 Gbps

Dimension

4.39 x 44.2 cm x 32.7 cm (1.73 x 17.4 x 12.9 in)

Weight

4.45 kg (9.81 lbs)

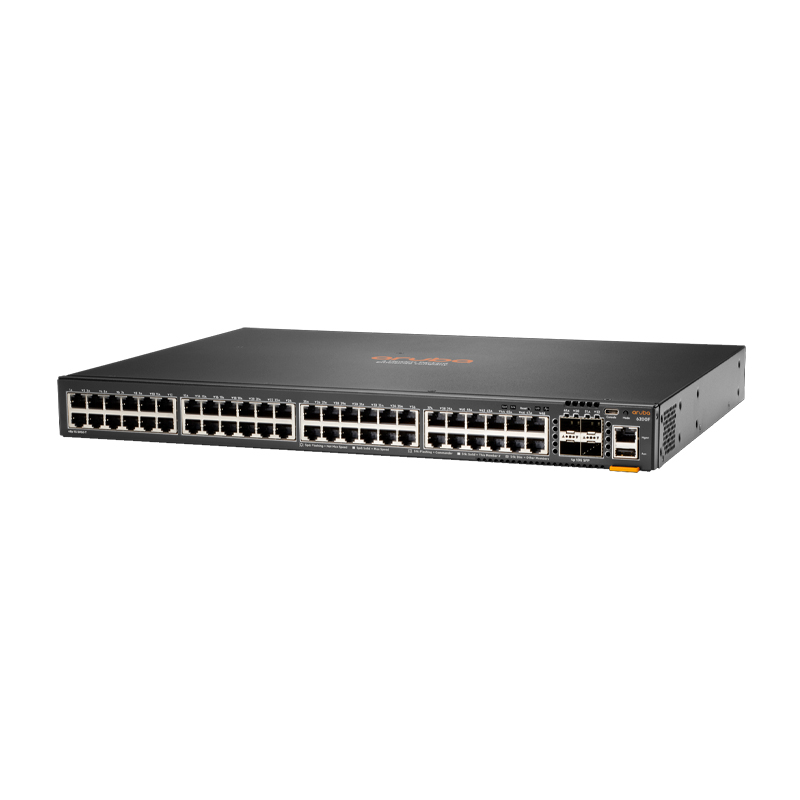

Figure 1 shows the appearance of JL726A.

front-panel-jl726a-datasheet

Product Details


Key Features

● Enterprise-class connectivity with support for ACLs, robust QoS, and common protocols such as static and Access OSPF routing.

● Scalability with 8 member VSF stacking. 24 and 48-port fixed and modular switch models can stack together for up to 384 ports.

● Models include modular switches with 1/10GbE uplinks, LRM, and MACSec 256, fixed switches with either 1/10GbE SFP+ or 1GbE SFP uplinks, and options that support 30W to 60W of PoE per port.

● Intelligent monitoring and visibility via Aruba Network Analytics Engine. Aruba NetEdit support for automation, configuration and verification. One touch deployment using the Aruba CX Mobile App.

● Aruba Dynamic Segmentation enables enhanced security and simple access for users and IoT.

● Flexible, modular switch models support hot-swappable, redundant power supplies and fans for enhanced resiliency.



Compare to Similar Items


Table 2 shows the comparison.

Model

JL726A

JL678A

Ports

48 x 10/100/1000BASE-T

24 x 10/100/1000BASE-T

Other ports

4 x SFP+

4 x SFP+

PoE

No

No

Power supply

Internal

Internal


Get More Information


Do you have any questions about the JL726A?

Contact us now via [email protected].

Specific Data Sheet:


JL726A Specification

Part Number

JL726A

Description

Aruba 6200F 48G 4SFP+ Switch

Differentiator

Next-generation family of stackable access switches ideal for enterprise branch offices, campuses and SMB networks. 48x 10/100/1000BASE-T and 4x 1/10G SFP ports.

Ports

48x 10/100/1000BASE-T ports

4x 1/10G SFP ports

1x USB-C Console Port

1x OOBM

1x USB Type-A Host port

1x Bluetooth Adapter to be used with Aruba CX Mobile App

Memory and Processor

Quad Core ARM Cortex™ A72 @ 1.8 GHz

Memory and Flash

8 GB DDR4

16 GB eMMC

Packet Buffer

8 MB Packet Buffer Memory

Latency

1 Gbps: 2.28 μSec

10 Gbps: 1.46 μSec

Throughput

Up to 130.9 Mpps

Routing/Switching Capacity

176 Gbps

Stacking Capabilities

8 members

Max. Stacking Distance

Up to 10 kms with long range transceivers

Power Supplies

Fixed power supply (200W)

Fans

Fixed fans

Input Voltage

100V-120V/200V-240V

Operating Temperature

32°F to 113°F (0°C to 45°C) up to 5,000 ft derate -1°C for every 1,000 ft from 5,000 ft to 10,000 ft.

Operating Humidity Rang

15% to 95% @ 104°F (40°C) non-condensing

Frequency

50Hz/60Hz

Power Consumption

68W at 230 VAC

Current

2.5A/1.4A

80plus.org Certification

80 PLUS Silver

Maximum heat dissipation BTU/hr and kJ/hr

232 BTU/hr

245 kJ/hr

Detailed Product Description

Aruba 6200F 48G 4SFP+ Switch

Includes Non-Pluggable, Internal PSU behind sheetmetal Chassis Frame

Includes Non-Pluggable, Internal Fans behind sheetmetal Chassis Frame

Min=0 \ Max = 4 SFP/SFP+ 1/10G Transceiver

1U - Height

Warranty

Limited Lifetime Warranty, see https://www.arubanetworks.com/support-services/ product-warranties/ for warranty and support information included with your product purchase.

Dimension

4.39 x 44.2 cm x 32.7 cm (1.73 x 17.4 x 12.9 in)

Weight

4.45 kg (9.81 lbs)
