Aruba JL725A 6200F 24G Class4 PoE 4SFP+ 370W Switch

USD

5 5/5.0 Reviews Q/A 28 Sold/Mon
Detail:	Aruba 6200F 24G Class4 PoE 4SFP+ 370W Switch
Model:	Aruba 6200F JL725A
Condition:	Factory Sealed New
Related:
Warranty:	3 Years-Warranty 100% Money-back Free After-Sales Service
Shipping:	Air Shipping to United States , Most Customers Receive during 5-7 Days ? If you finish the payment today, your order will arrive within the estimated delivery time.
Ships to: 13	2-7 Days US$
Payment:	Pay by wire transfer. Pay with your paypal. Pay with your Visa credit card. Pay with your Mastercard credit card. Pay with your Discover Card. Pay by Western Union. More

Description
Specification
Reviews
Q&A
Warranty
Download

Aruba JL725A 6200F 24G Class4 PoE 4SFP+ 370W Switch

The JL725A is an Aruba 6200F 24G Class4 PoE 4SFP+ 370W Switch designed for small to medium-sized businesses and branch offices. This high-performance switch offers 24 Gigabit Ethernet ports with Class 4 PoE, 4 SFP+ ports for uplink, and a 370W power budget for a wide range of networking applications.

Quick Specification

Table 1 shows the Quick Specification.

Model	JL725A
Description	Aruba 6200F 24G Class4 PoE 4SFP+ 370W Switch
Differentiator	Next-generation family of stackable access switches ideal for enterprise branch offices, campuses and SMB networks. 24x 10/100/1000BASE-T and 4x 1/10G SFP ports 370W of available Class 4 PoE power.
Ports	24x 10/100/1000BASE-T Class 4 PoE ports 4x 1/10G SFP ports Supports PoE Standards IEEE 802.3af, 802.3at 1x USB-C Console Port 1x OOBM 1x USB Type-A Host port 1x Bluetooth Adapter to be used with Aruba CX Mobile App
Latency	1 Gbps: 2.28 μSec 10 Gbps: 1.46 μSec
Throughput	Up to 95.2 Mpps
Routing/Switching Capacity	128 Gbps
Dimension	4.39 x 44.2 cm x 32.7 cm (1.73 x 17.4 x 12.9 in)
Weight	4.90 kg (10.80 lbs)

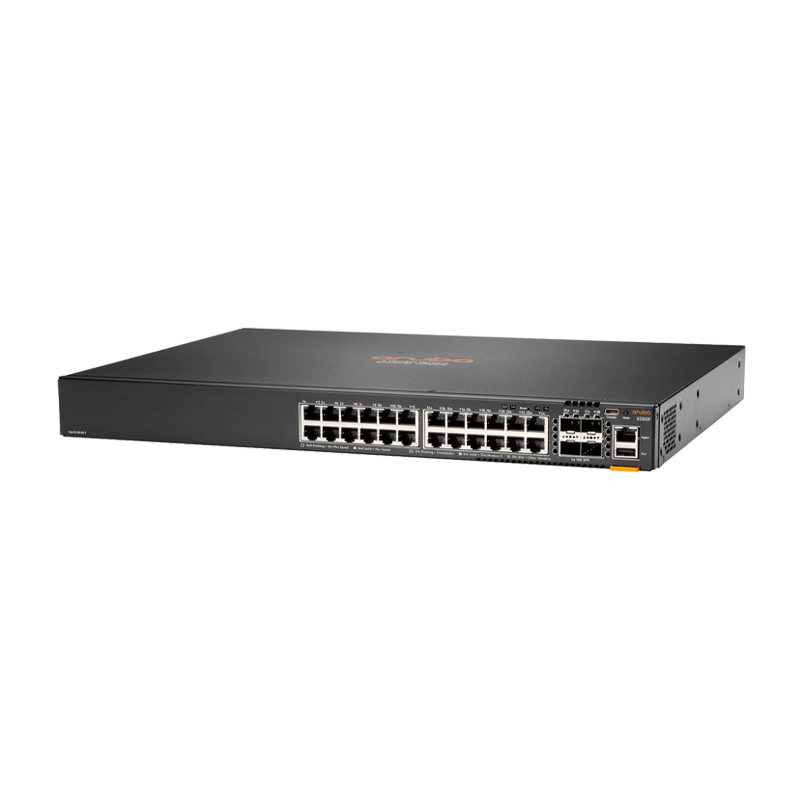

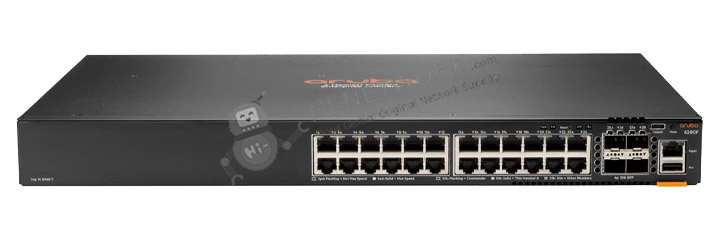

Figure 1 shows the appearance of JL725A.

front-panel-jl725a-datasheet

Product Details

Key Features

● Enterprise-class connectivity with support for ACLs, robust QoS, and common protocols such as static and Access OSPF routing.

● Scalability with 8 member VSF stacking. 24 and 48-port fixed and modular switch models can stack together for up to 384 ports.

● Models include modular switches with 1/10GbE uplinks, LRM, and MACSec 256, fixed switches with either 1/10GbE SFP+ or 1GbE SFP uplinks, and options that support 30W to 60W of PoE per port.

● Intelligent monitoring and visibility via Aruba Network Analytics Engine. Aruba NetEdit support for automation, configuration and verification. One touch deployment using the Aruba CX Mobile App.

● Aruba Dynamic Segmentation enables enhanced security and simple access for users and IoT.

● Flexible, modular switch models support hot-swappable, redundant power supplies and fans for enhanced resiliency.

Compare to Similar Items

Table 2 shows the comparison.

Model	JL725A	JL724A
Ports	24x 10/100/1000BASE-T Class 4 PoE ports 4x 1/10G SFP ports	24x 10/100/1000BASE-T ports 4x 1/10G SFP ports
Memory and Processor	Quad Core ARM Cortex™ A72 @ 1.8 GHz	Quad Core ARM Cortex™ A72 @ 1.8 GHz
Throughput	Up to 95.2 Mpps	Up to 95.2 Mpps

Get More Information

Do you have any questions about the JL725A?

Specific Data Sheet:

JL725A Specification
Part Number	JL725A
Description	Aruba 6200F 24G Class4 PoE 4SFP+ 370W Switch
Differentiator	Next-generation family of stackable access switches ideal for enterprise branch offices, campuses and SMB networks. 24x 10/100/1000BASE-T and 4x 1/10G SFP ports 370W of available Class 4 PoE power.
Ports	24x 10/100/1000BASE-T Class 4 PoE ports 4x 1/10G SFP ports Supports PoE Standards IEEE 802.3af, 802.3at 1x USB-C Console Port 1x OOBM 1x USB Type-A Host port 1x Bluetooth Adapter to be used with Aruba CX Mobile App
Memory and Processor	Quad Core ARM Cortex™ A72 @ 1.8 GHz
Memory and Flash	8 GB DDR4 16 GB eMMC
Packet Buffer	8 MB Packet Buffer Memory
Latency	1 Gbps: 2.28 μSec 10 Gbps: 1.46 μSec
Throughput	Up to 95.2 Mpps
Routing/Switching Capacity	128 Gbps
Stacking Capabilities	8 members
Max. Stacking Distance	Up to 10 kms with long range transceivers
Power Supplies	Fixed power supply (500W) Up to 370W of Class 4 PoE Power
PoE capability	370W
Fans	Fixed fans
Input Voltage	100V-120V/200V-240V
Operating Temperature	32°F to 113°F (0°C to 45°C) up to 5,000 ft derate -1°C for every 1,000 ft from 5,000 ft to 10,000 ft.
Operating Humidity Rang	15% to 95% @ 104°F (40°C) non-condensing
Frequency	50Hz/60Hz
Power Consumption	65W at 230 VAC
Current	7.5A/3.5A
Maximum heat dissipation BTU/hr and kJ/hr	222 BTU/hr 234 kJ/hr
Detailed Product Description	Aruba 6200F 24G Class4 PoE 4SFP+ 370W Switch Includes Non-Pluggable, Internal PSU behind sheetmetal Chassis Frame Includes Non-Pluggable, Internal Fans behind sheetmetal Chassis Frame Min=0 \ Max = 4 SFP/SFP+ 1/10G Transceiver 1U - Height
Warranty	Limited Lifetime Warranty, see https://www.arubanetworks.com/support-services/ product-warranties/ for warranty and support information included with your product purchase.
Dimension	4.39 x 44.2 cm x 32.7 cm (1.73 x 17.4 x 12.9 in)
Weight	4.90 kg (10.80 lbs)
