Aruba JL724A 6200F 24G 4SFP+ Switch

The Aruba CX 6200 Switch Series is a next-gen family of stackable access switches ideal for enterprise branch offices, campuses, and SMB networks. Created for game-changing operational efficiency with built-in analytics and automation, the CX 6200 switches provide an enterprise-class access layer solution that’s simple and secure.

The Aruba CX 6200 Switch Series delivers unparalleled visibility with built-in analytics for real-time monitoring and troubleshooting to help fix problems faster.

Quick Specification

Table 1 shows the Quick Specification.

Model	JL724A
Description	Aruba 6200F 24G 4SFP+ Switch
Differentiator	Next-generation family of stackable access switches ideal for enterprise branch offices, campuses and SMB networks. 24x 10/100/1000BASE-T and 4x 1/10G SFP ports.
Ports	24x ports 10/100/1000BASE-T ports 4x 1/10G SFP ports 1x USB-C Console Port 1x OOBM 1x USB Type-A Host port 1x Bluetooth Adapter to be used with Aruba CX Mobile App
Latency	1 Gbps: 2.28 μSec 10 Gbps: 1.46 μSec
Throughput	Up to 95.2 Mpps
Routing/Switching Capacity	128 Gbps
Dimension	4.39 x 44.2 cm x 32.7 cm (1.73 x 17.4 x 12.9 in)
Weight	4.36 kg (9.61 lbs)

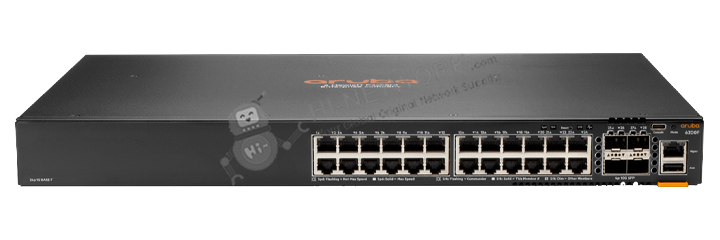

Figure 1 shows the appearance of JL724A.

front-panel-jl724a-datasheet

Product Details

Key Features

● Enterprise-class connectivity with support for ACLs, robust QoS, and common protocols such as static and Access OSPF routing.

● Scalability with 8 member VSF stacking. 24 and 48-port fixed and modular switch models can stack together for up to 384 ports.

● Models include modular switches with 1/10GbE uplinks, LRM, and MACSec 256, fixed switches with either 1/10GbE SFP+ or 1GbE SFP uplinks, and options that support 30W to 60W of PoE per port.

● Intelligent monitoring and visibility via Aruba Network Analytics Engine. Aruba NetEdit support for automation, configuration and verification. One touch deployment using the Aruba CX Mobile App.

● Aruba Dynamic Segmentation enables enhanced security and simple access for users and IoT.

● Flexible, modular switch models support hot-swappable, redundant power supplies and fans for enhanced resiliency.

Compare to Similar Items

Table 2 shows the comparison.

Model	JL724A	JL727A
Ports	24x 10/100/1000BASE-T ports 4x 1/10G SFP ports	48x 10/100/1000BASE-T Class 4 PoE ports 4x 1/10G SFP ports
Memory and processor	Quad Core ARM Cortex™ A72 @ 1.8 GHz	Quad Core ARM Cortex™ A72 @ 1.8 GHz
Throughput	Up to 95.2 Mpps	Up to 130.9 Mpps

Get More Information

Do you have any questions about the JL724A?

Specific Data Sheet:

JL724A Specification
Part Number	JL724A
Description	Aruba 6200F 24G 4SFP+ Switch
Differentiator	Next-generation family of stackable access switches ideal for enterprise branch offices, campuses and SMB networks. 24x 10/100/1000BASE-T and 4x 1/10G SFP ports.
Ports	24x ports 10/100/1000BASE-T ports 4x 1/10G SFP ports 1x USB-C Console Port 1x OOBM 1x USB Type-A Host port 1x Bluetooth Adapter to be used with Aruba CX Mobile App
Memory and Processor	Quad Core ARM Cortex™ A72 @ 1.8 GHz
Memory and Flash	8 GB DDR4 16 GB eMMC
Packet Buffer	8 MB Packet Buffer Memory
Latency	1 Gbps: 2.28 μSec 10 Gbps: 1.46 μSec
Throughput	Up to 95.2 Mpps
Routing/Switching Capacity	128 Gbps
Stacking Capabilities	8 members
Max. Stacking Distance	Up to 10 kms with long range transceivers
Power Supplies	Fixed power supply (200W)
Fans	Fixed fans
Input Voltage	100V-120V/200V-240V
Operating Temperature	32°F to 113°F (0°C to 45°C) up to 5,000 ft derate -1°C for every 1,000 ft from 5,000 ft to 10,000 ft.
Operating Humidity Rang	15% to 95% @ 104°F (40°C) non-condensing
Frequency	50Hz/60Hz
Power Consumption	59W at 230 VAC
Current	2.5A/1.4A
80plus.org Certification	80 PLUS Silver
Maximum heat dissipation BTU/hr and kJ/hr	201 BTU/hr 212 kJ/hr
Detailed Product Description	Aruba 6200F 24G 4SFP+ Switch Includes Non-Pluggable, Internal PSU behind sheetmetal Chassis Frame Includes Non-Pluggable, Internal Fans behind sheetmetal Chassis Frame Min=0 \ Max = 4 SFP/SFP+ 1/10G Transceiver 1U - Height
Warranty	Limited Lifetime Warranty, see https://www.arubanetworks.com/support-services/ product-warranties/ for warranty and support information included with your product purchase.
Dimension	4.39 x 44.2 cm x 32.7 cm (1.73 x 17.4 x 12.9 in)
Weight	4.36 kg (9.61 lbs)
