Aruba JL320A 2930M 24G PoE+ 1‑slot Switch

USD

5 5/5.0 Reviews Q/A 28 Sold/Mon
Detail:	Aruba 2930M 24G PoE+ 1‑slot Switch
Model:	Aruba 2930M JL320A
Condition:	Factory Sealed New
Related:
Warranty:	3 Years-Warranty 100% Money-back Free After-Sales Service
Shipping:	Air Shipping to United States , Most Customers Receive during 5-7 Days ? If you finish the payment today, your order will arrive within the estimated delivery time.
Ships to: 13	2-7 Days US$
Payment:	Pay by wire transfer. Pay with your paypal. Pay with your Visa credit card. Pay with your Mastercard credit card. Pay with your Discover Card. Pay by Western Union. More

Description
Specification
Reviews
Q&A
Warranty
Download

Aruba JL320A 2930M 24G PoE+ 1‑slot Switch

The HPE Aruba Networking 2930M Switch Series is designed for digital workplaces optimized for mobile users. These powerful Layer 3 access switches are easy to deploy and manage with advanced security and network management tools like HPE Aruba Networking ClearPass Policy Manager, HPE Aruba Networking AirWave and cloud-based HPE Aruba Networking Central. Modular stacking, uplinks and power provide scalability and simplicity for enterprise edge, SMB and branch office networks. The HPE Aruba Networking 2930M Switch Serie delivers performance and value with support for static, RIP and Access OSPF routing, 10GbE and 40GbE uplinks, models with 24 ports of HPE Smart Rate multi-gigabit Ethernet, up to 1440W of PoE, robust QoS, and Dynamic Segmentation for unified and secure access.

Quick Specification

Table 1 shows the Quick Specification.

Model	JL320A
Description	Aruba 2930M 24G PoE+ 1‑slot Switch
Differentiator	Powerful and flexible high density 1U 24-port PoE+ access switch supporting up to 1440W of PoE. This model has 24x 10/100/1000 access ports including four that are combo dual purpose shared with SFP ports for fiber connectivity. This model does support PoE/PoE+ with a Power over Ethernet budget of up to 1440 Watts based on selected power supplies. Can take up to two power supplies power supplies ordered separately.
Ports	(20) RJ-45 autosensing 10/100/1000 PoE+ ports (4) Dual Personality 10/100/1000 BASE-T PoE+ or 100/1000 Mbps SFP Ports (1) uplink module slot, (1) stacking module slot
Latency	1000 Mb Latency: < 3.1 µs 10 Gbps Latency: < 3.4 µs
Throughput	up to 95.2 Mpps
Switching Capacity	128 Gbps
Dimension	4.39 x 44.25 x 32.43 cm (1.73 x 17.42 x 12.77 in)
Weight	4.50 kg (9.92 lbs)

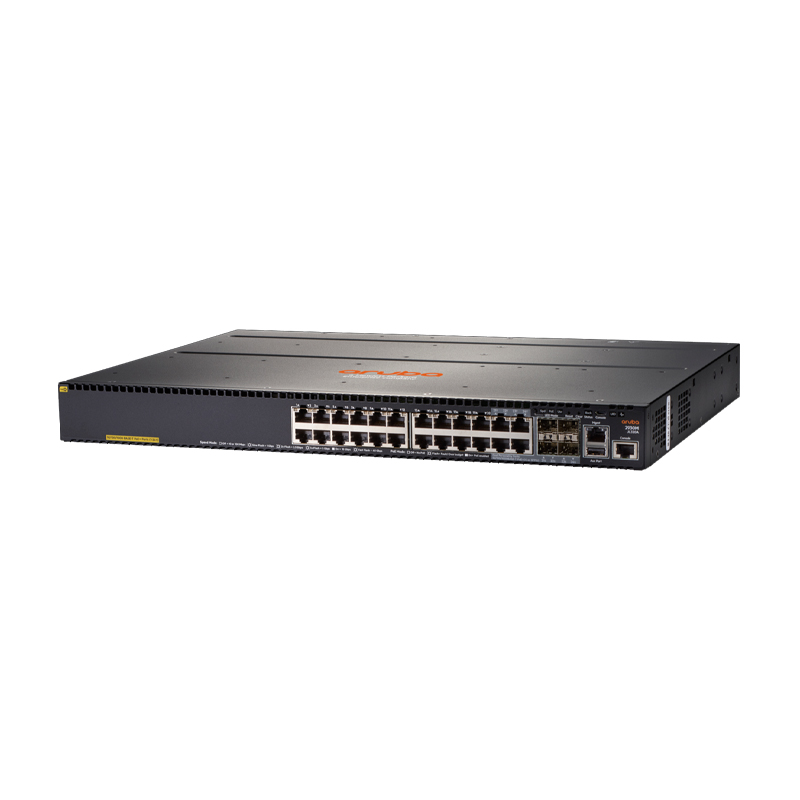

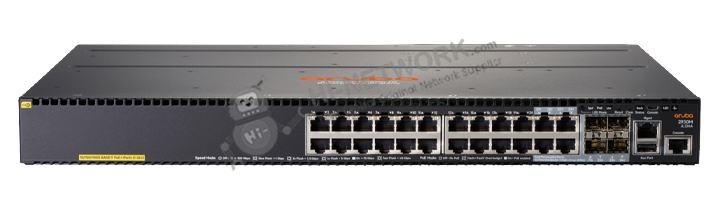

Figure 1 shows the appearance of JL320A.

front-panel-jl320a-datasheet

Product Details

Key Features

● The HPE Aruba Networking 2930M layer 3 switch series that is easy to deploy and manage with HPE Aruba Networking ClearPass Policy ● ● Manager and on-premise with HPE Aruba Networking Airwave.

● Simplify with Zero Touch Provisioning and cloud-based HPE Aruba Networking Central support.

● Scale with modular 10 chassis stacking and up to 1440W PoE.

● Modular 10GbE and 40GbE uplinks and HPE Smart Rate multi-gigabit support.

● Models with 24 ports of HPE Smart Rate with IEEE 802.3bz.

● High Power PoE models deliver up to 60W of PoE per port.

Compare to Similar Items

Table 2 shows the comparison.

Model	JL320A	JL322A
Interfaces	1 x 1000Base-T management, 1 x serial (console), 1 x USB Type B, 20 x 1000Base-T RJ-45 PoE+, 4 x 1000Base-T	1 x 1000Base-T management, 1 x serial (console), 1 x USB Type B, 4 x 1000Base-T, 44 x 1000Base-T RJ-45 PoE+
Nominal Voltage	AC 120/230 V	AC 120/230 V
Frequency Required	50/60 hertz	50/60 hertz
Subtype	Gigabit Ethernet	Gigabit Ethernet

Get More Information

Do you have any questions about the JL320A?

Specific Data Sheet:

JL320A Specification
Part Number	JL320A
Description	Aruba 2930M 24G PoE+ 1‑slot Switch
Differentiator	Powerful and flexible high density 1U 24-port PoE+ access switch supporting up to 1440W of PoE. This model has 24x 10/100/1000 access ports including four that are combo dual purpose shared with SFP ports for fiber connectivity. This model does support PoE/PoE+ with a Power over Ethernet budget of up to 1440 Watts based on selected power supplies. Can take up to two power supplies power supplies ordered separately.
Ports	(20) RJ-45 autosensing 10/100/1000 PoE+ ports (4) Dual Personality 10/100/1000 BASE-T PoE+ or 100/1000 Mbps SFP Ports (1) uplink module slot, (1) stacking module slot
Memory and Processor	Dual Core ARM Coretex A9 @ 1016 MHz 1 GB DDR3 SDRAM Packet buffer size: 12.38 MB and 4.5MB Ingress, 7.785 Egress 4 GB eMMC
Latency	1000 Mb Latency: < 3.1 µs 10 Gbps Latency: < 3.4 µs
Throughput	up to 95.2 Mpps
Switching Capacity	128 Gbps
Power Supplies	JL086A Aruba X372 54VDC 680W 100-240VAC Power Supply JL087A Aruba X372 54VDC 1050W 110-240VAC Power Supply
PoE Capability	Up to 840 Watts
Management Features	HPE Aruba Networking AirWave Network Management HPE Aruba Networking Central IMC - Intelligent Management Center Command-line interface Web browser Configuration menu SNMP manager Telnet RMON1 FTP Out-of-band management (serial RS-232C or micro USB)
Operating Temperature	32°F to 131°F (0°C to 55°C) up to 5000ft, 32°F to 122°F (0°C to 50°C). Derate -1 degree C for every 1000 ft from 5000 ft to 10000 ft
Operating Relative Humidity	15% to 95% (non-condensing) 10,000 ft
Acoustic	Sound Power LWaD=4.6 Bel Sound Pressure LpAm, Bystander = 28.8 dB
Primary Airflow	Port to Power
Frequency	50/60Hz 50/60Hz
Input Voltage	JL086A PSU: 100-127/200-240 VAC JL087A PSU: 110-127/200-240 VAC
Current	JL086A PSU (each): 4.8A/2.4A JL087A PSU (each): 8.6A/4.3A
Power Consumption	JL086A PSU (each): 450W JL087A PSU (each): 840W
Heat Dissipation	150 BTU/hr 162 kJ/hr
Dimension	4.39 x 44.25 x 32.43 cm (1.73 x 17.42 x 12.77 in)
Weight	4.50 kg (9.92 lbs)
