Detail: | Aruba Instant IAP-335 (RW) 802.11n/ac Dual 4x4:4 MU-MIMO Radio Integrated Antenna 2.5+1 GbE AP |
Model: | Aruba Instant IAP-335 (RW) (JW823A) |
Condition: | Factory Sealed New |
Related: | |
Warranty: |
3 Years-Warranty
100% Money-back
Free After-Sales Service
|
Shipping: |
Air Shipping to
United States
, Most Customers Receive during 5-7 Days
?
If you finish the payment today,
your order will arrive within the estimated delivery time. |
Ships to:
3
|
2-7 Days
US$
|
Payment: |
More
|

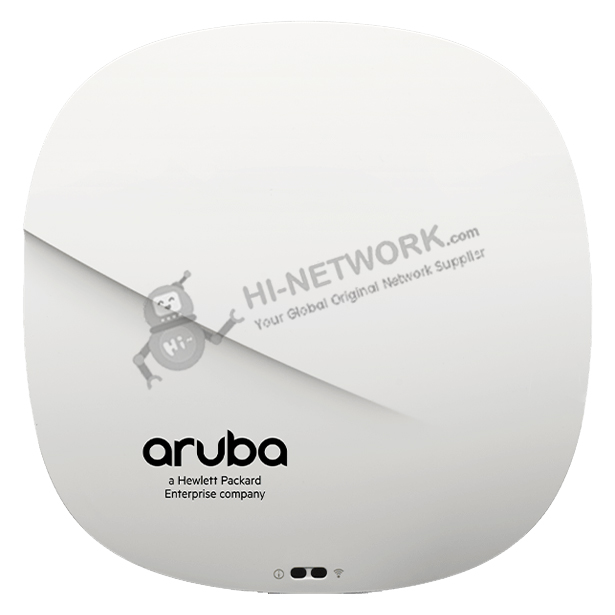

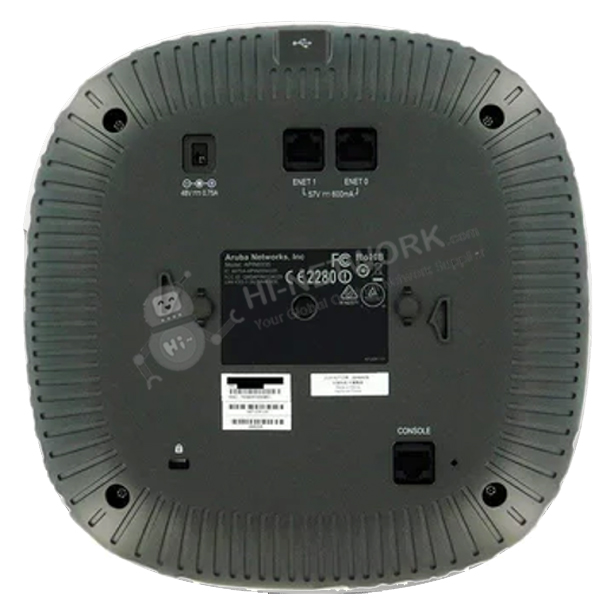

JW823A is the Aruba Instant IAP-335 (RW) 802.11n/ac Dual 4x4:4 MU-MIMO Radio Integrated Antenna 2.5+1 GbE AP. The Aruba 330 Series access points provide the fastest gigabit data speeds and superb user experience for mobile devices and applications in a digital workplace. Designed with an integrated HPE Smart Rate port to scale up to 5Gbps Ethernet, the 330 Series allows enterprises to leverage their multi-gigabit Ethernet wired network infrastructures to eliminate bottlenecks.
Model | JW823A |
Series | Aruba IAP-335 |
AP type | Indoor, dual radio, 5 GHz 802.11ac 4x4 MIMO and 2.4 GHz 802.11n 4x4 MIMO ● In addition to 802.11n, the 2.4 GHz radio supports all 802.11ac features as well (proprietary extension) |
Description | Aruba Instant IAP-335 (RW) 802.11n/ac Dual 4x4:4 MU-MIMO Radio Integrated Antenna 2.5+1 GbE AP |
Dimension (including single-gang wall box mount plate) | 225mm (W) x 224mm (D) x 52mm (H) / 8.9” (W) x 8.9” (D) x 2.0” (H) |
Weight | 1150g / 41oz |
OperatingTemperature | 0°C to +50°C (+32°F to +122°F) |
Storage Temperature | -40°C to +70°C (-40°F to +158°F) |
Humidity | 5% to 93% non-condensing |
Maximum number of BSSIDs | 16 BSSIDs per radio |
Supported frequency bands (country-specific restrictions apply) | ● 2.400 to 2.4835GHz ● 5.150 to 5.250GHz ● 5.250 to 5.350GHz ● 5.470 to 5.725GHz ● 5.725 to 5.850GHz |
Antenna | 12 Internal Antennas |
Maximum No. of associated client devices | Up to 256 associated client devices per radio |
Supported data rates (Mbps) | ● 802.11b: 1, 2, 5.5, 11 ● 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 ● 802.11n: 6.5 to 600 (MCS0 to MCS31) ● 802.11ac: 6.5 to 1,733 (MCS0 to MCS9, NSS = 1 to 4 for VHT20/40/80, NSS = 1 to 2 for VHT160) |
● Resolve sticky client issues with MU-MIMO-aware ClientMatch
● Maximum concurrent data rate of 1,733 Mbps in the 5 GHz band and 600 Mbps in the 2.4 GHz band (for an aggregate peak data rate of 2.3Gbps)
● Designed with an integrated, 802.3bz compliant, HPE SmartRate multi-gig Ethernet port to eliminate wired bottlenecks
● Includes integrated Bluetooth Low Energy (BLE) radio, for advanced location and indoor wayfinding
● Participates in Aruba’s Dynamic Segmentation solution
- Supports up to 1,733 Mbps in the 5 GHz band (with 4SS/VHT80 or 2SS/VHT160 clients) and up to 600 Mbps in the 2.4 GHz band (with 4SS/HT40 clients)
- Each 5 GHz radio chain has a switch and two antennas
- Software controlled; Horizontally and vertically polarized
- Supports up to 5Gbps with NBase-T and 802.3bz Ethernet compatibility
- Backwards compatible with 100/1000Base-T
- Adds support for hitless PoE failover between the HPE Smart Rate port and the secondary 1000Base-T port when both ports are powered
- Enables location based services with BLE-enabled mobile devices receiving signals from multiple Aruba Beacons at the same time
- Minimizes interference from 3G/4G cellular networks, distributed antenna systems and commercial small cell/femtocell equipment
- Supports priority handling and policy enforcement for unified communication apps, including Skype for Business with encrypted videoconferencing, voice, chat and desktop sharing
- Aruba AppRF technology leverages deep packet inspection to classify and block, prioritize, or limit bandwidth for thousands of applications in a range of categorie.
- Adaptive Radio Management (ARM) technology automatically assigns channel and power settings, provides airtime fairness and ensures that APs stay clear of all sources of RF interference to deliver reliable, high-performance WLANs
- The Aruba 330 Series Access Points can be configured to provide part-time or dedicated air monitoring for spectrum analysis and wireless intrusion protection, VPN tunnels to extend remote locations to corporate resources, and wireless mesh connections where Ethernet drops are not available
- Capable of part-time or dedicated air monitoring, the spectrum analyzer remotely scans the 2.4 GHz and 5 GHz radio bands to identify sources of RF interference from HT20 through VHT160 operation
- Integrated wireless intrusion protection offers threat protection and mitigation, and eliminates the need for separate RF sensors and security appliances
- IP reputation and security services identify, classify, and block malicious files, URLs and IPs, providing comprehensive protection against advanced online threats
- Integrated Trusted Platform Module (TPM) for secure storage of credentials and keys
- SecureJack-capable for secure tunneling of wired Ethernet traffic
- Enables the AP to continuously monitor and report its actual power consumption and optionally make autonomous decisions to disable certain capabilities based on the amount of power available to the unit
- Software configurable to disable capabilities in certain orders. For the 330 Series Access Points, by default, the USB interface will be the first feature to turn off if the AP power consumption exceeds the available power budget
Model | JW823A | JW801A |
Description | Aruba Instant IAP-335 (RW) 802.11n/ac Dual 4x4:4 MU-MIMO Radio Integrated Antenna 2.5+1 GbE AP | Aruba AP-335 802.11n/ac 4x4:4 MU-MIMO Dual Radio Integrated Antenna 2.5+1 GbE AP |
Wireless LAN Standard | IEEE 802.11ac | IEEE 802.11ac |
Frequency Band | 5 GHz | 5 GHz |
Antennas | 2.40 GHz | 2.40 GHz |
Wireless Transmission Speed | 12 Internal Antennas | 12 Internal Antennas |
Form Factor | 2.50 Gbit/s | 2.50 Gbit/s |
Do you have any questions about the JW823A?
Contact us now via [email protected].
Specific Data Sheet:
JW823A Specification | |
Series | Aruba IAP-335 |
AP type | Indoor, dual radio, 5 GHz 802.11ac 4x4 MIMO and 2.4 GHz 802.11n 4x4 MIMO ● In addition to 802.11n, the 2.4 GHz radio supports all 802.11ac features as well (proprietary extension) |
Description | Aruba Instant IAP-335 (RW) 802.11n/ac Dual 4x4:4 MU-MIMO Radio Integrated Antenna 2.5+1 GbE AP |
Dimension (including single-gang wall box mount plate) | 225mm (W) x 224mm (D) x 52mm (H) / 8.9” (W) x 8.9” (D) x 2.0” (H) |
Weight | 1150g / 41oz |
OperatingTemperature | 0°C to +50°C (+32°F to +122°F) |
Storage Temperature | -40°C to +70°C (-40°F to +158°F) |
Humidity | 5% to 93% non-condensing |
5GHz radio | ● Four spatial stream Single User (SU) MIMO for up to 1,733 Mbps wireless data rate to individual 4x4 VHT80 or 2x2 VHT160 client devices ● Four spatial stream Multi User (MU) MIMO for up to 1,733 Mbps wireless data rate to up to three MU-MIMO capable client devices simultaneously |
2.4GHz radio | ● Four spatial stream Single User (SU) MIMO for up to 600 Mbps wireless data rate to individual 4x4 HT40 client devices |
Maximum number of BSSIDs | 16 BSSIDs per radio |
Supported frequency bands (country-specific restrictions apply) | ● 2.400 to 2.4835GHz ● 5.150 to 5.250GHz ● 5.250 to 5.350GHz ● 5.470 to 5.725GHz ● 5.725 to 5.850GHz |
Available channels | Dependent on configured regulatory domain |
Supported radio technologies | ● 802.11b: Direct-sequence spread-spectrum (DSSS) ● 802.11a/g/n/ac: Orthogonal frequency-division multiplexing (OFDM) |
Supported modulation types | ● 802.11b: BPSK, QPSK, CCK ● 802.11a/g/n/ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM |
Antenna | 12 Internal Antennas |
Maximum No. of associated client devices | Up to 256 associated client devices per radio |
Supported data rates (Mbps) | ● 802.11b: 1, 2, 5.5, 11 ● 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 ● 802.11n: 6.5 to 600 (MCS0 to MCS31) ● 802.11ac: 6.5 to 1,733 (MCS0 to MCS9, NSS = 1 to 4 for VHT20/40/80, NSS = 1 to 2 for VHT160) |
802.11n high-throughput (HT) support | HT 20/40 |
802.11ac very high throughput (VHT) support | VHT 20/40/80/160 |
802.11n/ac packet aggregation | A-MPDU, A-MSDU |
Transmit power | Configurable in increments of 0.5 dBm |
Maximum (aggregate, conducted total) transmit power (limited by local regulatory requirements) | ● 2.4 GHz band: +24 dBm (18 dBm per chain) ● 5 GHz band: +24 dBm (18 dBm per chain) ● Note: conducted transmit power levels exclude antenna gain. For total (EIRP) transmit power, add antenna gain |
Certifications | ● CB Scheme Safety, cTUVus ● UL2043 plenum rating ● Wi-Fi Alliance (WFA) certified 802.11a/b/g/n/ac ● WPA, WPA2 and WPA3 – Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE) ● Passpoint® (Release 2) with ArubaOS and Instant 8.3+ |
