Series

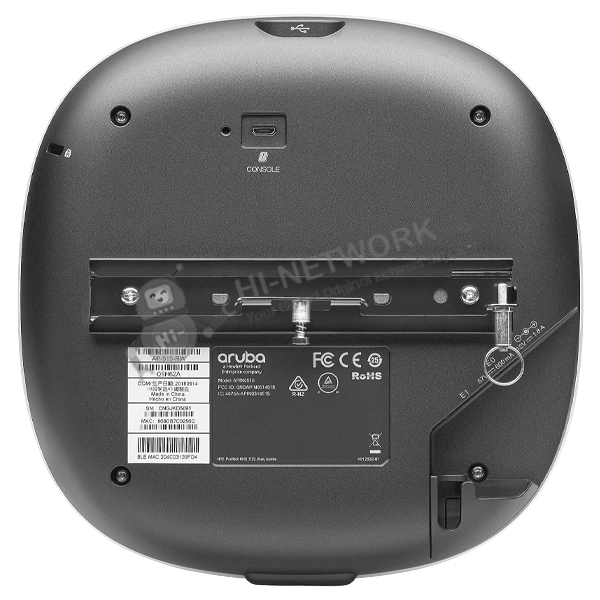

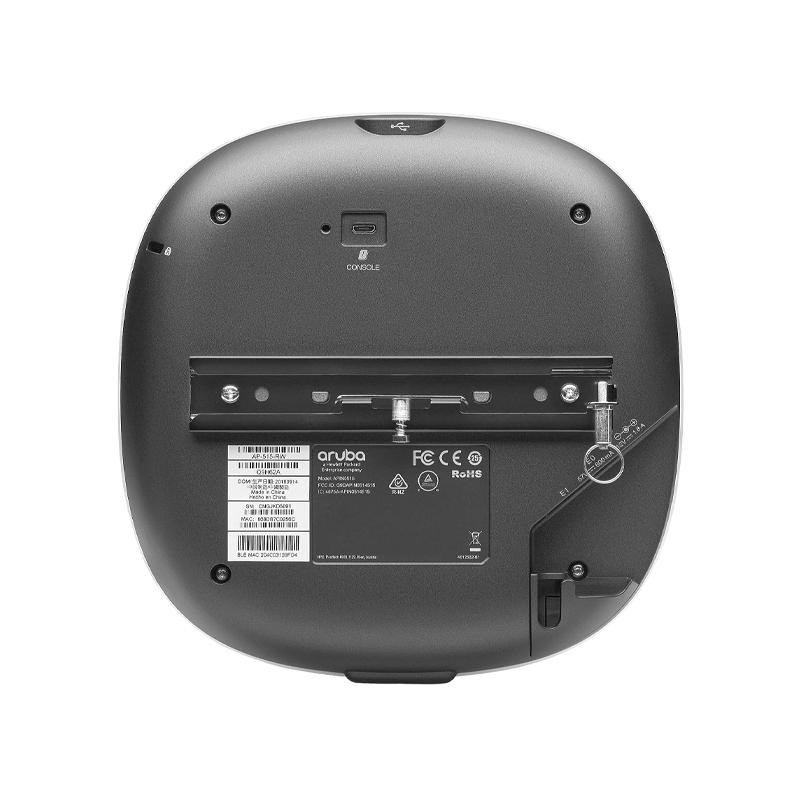

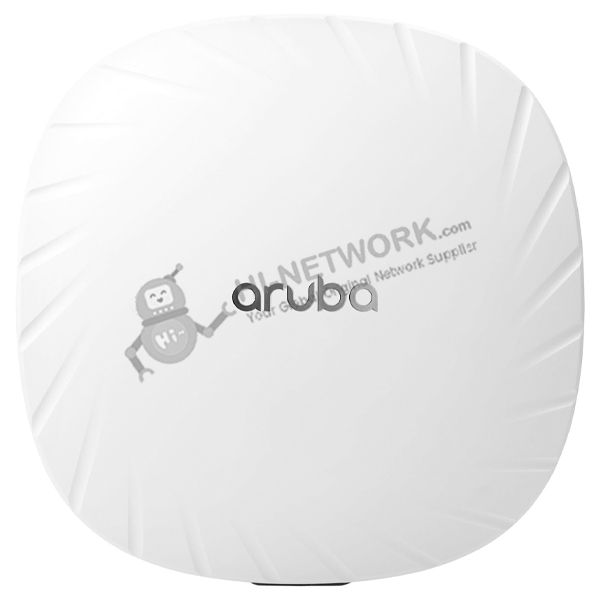

Aruba AP-515

AP type

Indoor, dual radio, 5GHz 802.11ax 4x4 MIMO and 2.4 GHz 802.11ax 2x2 MIMO

Description

Dual Radio 4x4:4 + 2x2:2 802.11ax Internal Antennas Unified Campus AP

Dimension (excluding mount bracket)

200mm (W) x 200mm (D) x 46mm (H)

Weight

810g

OperatingTemperature

0°C to +50°C

Storage Temperature

-40°C to +70°C

Humidity

5% to 93% non-condensing

5GHz radio

● Four spatial stream Single User (SU) MIMO for up to 4.8Gbps wireless data rate to individual 4SS HE160 802.11ax client devices (max)

● Two spatial stream Single User (SU) MIMO for up to 1.2Gbps wireless data rate to individual 2SS HE80 802.11ax client devices (typical)

● Four spatial stream Multi User (MU) MIMO for up to 4.8Gbps wireless data rate to up to four 1SS or two 2SS HE160 802.11ax DL-MU-MIMO capable client devices simultaneously (max)

● Four spatial stream Multi User (MU) MIMO for up to 2.4Gbps wireless data rate to up to four 1SS or two 2SS HE80 802.11ax DL-MU-MIMO capable client devices simultaneously (typical)

2.4GHz radio

● Two spatial stream Single User (SU) MIMO for up to 574Mbps wireless data rate to 2SS HE40 802.11ax client devices (max)

● Two spatial stream Single User (SU) MIMO for up to 287Mbps wireless data rate to 2SS HE20 802.11ax client devices (typical)

Maximum number of BSSIDs

16 BSSIDs per radio

Supported frequency bands (country-specific restrictions apply)

● 2.400 to 2.4835 GHz

● 5.150 to 5.250 GHz

● 5.250 to 5.350 GHz

● 5.470 to 5.725 GHz

● 5.725 to 5.850 GHz

● 5.850 to 5.895 GHz

Available channels

Dependent on configured regulatory domain

Supported radio technologies

● 802.11b: Direct-Sequence Spread-Spectrum (DSSS)

● 802.11a/g/n/ac: Orthogonal frequency-division multiplexing (OFDM)

● 802.11ax: Orthogonal frequency-division multiple access (OFDMA) with up to 16 resource units (for an 80MHz channel)

Supported modulation types

● 802.11b: BPSK, QPSK, CCK

● 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM, 256- QAM (proprietary extension)

●802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM (proprietary extension)

●802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256- QAM, 1024-QAM802.11n high-throughput (HT) support: HT20/40

Antenna

4 Internal Omni-directional 7.5DdBi Antenna

Maximum No. of associated client devices

Up to 512 associated client devices per radio

Supported data rates (Mbps)

● 802.11b: 1, 2, 5.5, 11

● 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54

● 802.11n (2.4 GHz): 6.5 to 300 (MCS0 to MCS15, HT20 to HT40)

● 802.11n (5 GHz): 6.5 to 600 (MCS0 to MVC31, HT20 to HT40)

● 802.11ac: 6.5 to 3,467 (MCS0 to MCS9, NSS = 1 to 4, VHT20 to VHT160)

● 802.11ax (2.4 GHz): 3.6 to 574 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE40)

● 802.11ax (5GHz): 3.6 to 4,803 (MCS0 to MCS11, NSS = 1 to 4, HE20 to HE160)

802.11n high-throughput (HT) support

HT20/40

802.11ac very high throughput (VHT) support

VHT20/40/80/160

802.11ax high efficiency (HE) support

HE20/40/80/160

802.11n/ac/ax packet aggregation

A-MPDU, A-MSDU

Transmit power

Configurable in increments of 0.5 dBm

Maximum (aggregate, conducted total) transmit power (limited by local regulatory requirements)

● 2.4 GHz band: +21 dBm (18dBm per chain)

● 5 GHz band: +24 dBm (18 dBm per chain)

● Note: conducted transmit power levels exclude antenna gain. For total (EIRP) transmit power, add antenna gain.

Certifications

UL2043 plenum rating

● Wi-Fi Alliance:

–Wi-Fi CERTIFIED a, b, g, n, ac, ax

–WPA, WPA2 and WPA3—Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE)

–WMM, WMM-PS, W-Fi Agile Multiband

–Passpoint (release 2)

–Wi-Fi CERTIFIED Location™

● Bluetooth SIG
