Aruba AP-365 (RW) (JX966A) 802.11n/ac Dual Radio Integrated Omni Antenna Outdoor Access Point

USD

5 5/5.0 Reviews Q/A 95 Sold/Mon
Detail:	Aruba AP-365 (RW) 802.11n/ac Dual 2x2:2 Radio Integrated Omni Antenna Outdoor AP
Model:	Aruba AP-365 (JX966A)
Condition:	Factory Sealed New
Related:
Warranty:	3 Years-Warranty 100% Money-back Free After-Sales Service
Shipping:	Air Shipping to United States , Most Customers Receive during 5-7 Days ? If you finish the payment today, your order will arrive within the estimated delivery time.
Ships to: 2	2-7 Days US$
Payment:	Pay by wire transfer. Pay with your paypal. Pay with your Visa credit card. Pay with your Mastercard credit card. Pay with your Discover Card. Pay by Western Union. More

Description
Specification
Reviews
Q&A
Warranty
Download

Aruba AP-365 (RW) (JX966A) 802.11n/ac Dual Radio Integrated Omni Antenna Outdoor Access Point

JX966A is the Aruba AP-365 wireless access point. Aruba multi-functional 360 Series 802.11ac Wave 2 outdoor access points deliver cost-effective wireless connectivity to mobile and IoT devices in a wide range of outdoor and warehouse environments.

Quick Specification

Table 1 shows the Quick Specification.

Model	JX966A
Series	Aruba AP-365
AP type	Indoor, dual radio, 5GHz 802.11ax 4x4 MIMO and 2.4 GHz 802.11ax 2x2 MIMO
Description	Aruba AP-365 (RW) 802.11n/ac Dual 2x2:2 Radio Integrated Omni Antenna Outdoor AP
Dimension (excluding mount bracket)	165mm (W) x 165mm (D) x 110mm (H)
Weight	807g
OperatingTemperature	-40°C to +55°C (-40°F to +131°F) ambient in full sun
Storage Temperature	-40°C to +70°C (-40°F to +158°F)
Humidity	5% to 95% non-condensing
Supported frequency bands (country-specific restrictions apply)	● 2.400 to 2.4835 GHz ● 5.150 to 5.250 GHz ● 5.250 to 5.350 GHz ● 5.470 to 5.725 GHz ● 5.725 to 5.850 GHz ● 5.850 to 5.895 GHz
Antenna	Integrated Omni antennas (H and V polarized) ● 2.7 dBi @ 2.4 GHz ● 4.3 dBi @ 5.x GHz
Supported data rates (Mbps)	● 802.11b: 1, 2, 5.5, 11 ● 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 ● 802.11n: 6.5 to 300 (MCS0 to MCS15) ● 802.11ac: 6.5 to 867 (MCS0 to MCS9, NSS = 1 to 2)
Maximum (aggregate, conducted total) transmit power (limited by local regulatory requirements)	● 2.4-GHz band: +26 dBm (23 dBm per chain) ● 5-GHz bands: +25 dBm (22 dBm per chain)

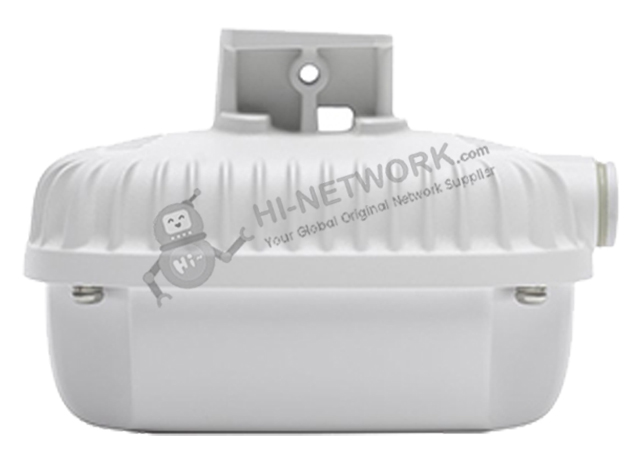

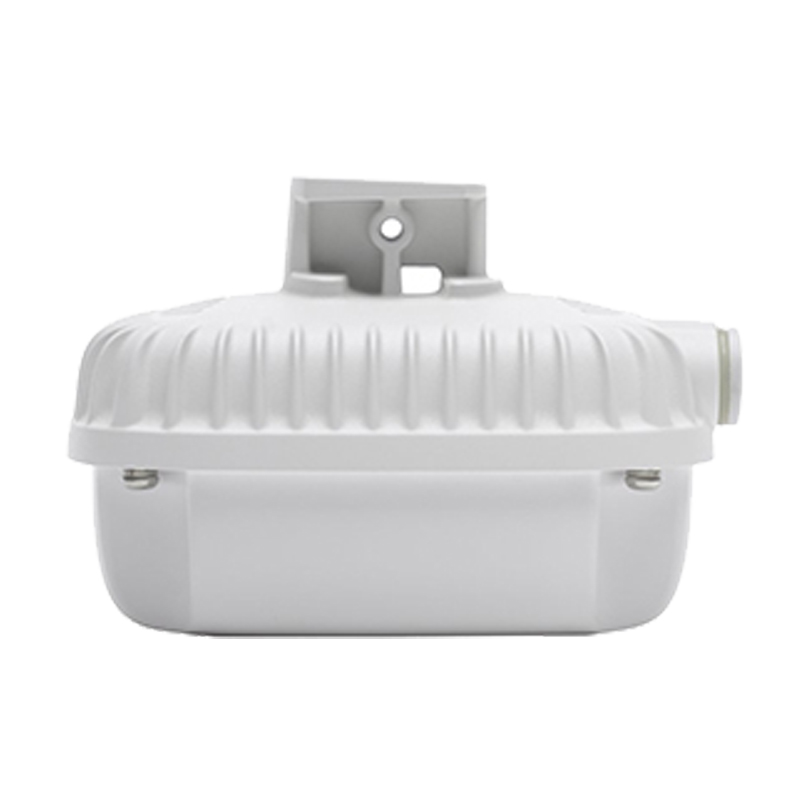

Figure 1 shows the appearance of JX966A.

front-panel-jx966a-datasheet

Product Details

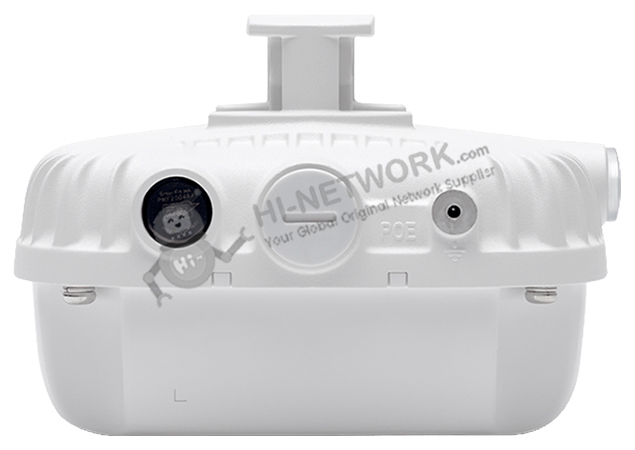

Figure 2 shows the back panel of JX966A.

back-panel-jx966a-datasheet

Key Features

● Deliver gigabit Wi-Fi to outdoor and extreme environments.

● 1.2 Gbps of maximum throughput

● WPA3 and Enhanced Open security

● Patented ClientMatch technology resolves sticky client issues and optimizes Wave 2 performance

● AI-powered AirMatch automates RF optimization

● IoT-ready with integrated Bluetooth Low Energy (BLE)

● Participates in Aruba’s Dynamic Segmentation solution

The Accessories

Table 2 shows the accessories of JX936A.

Mount Kit
JW052A	AP-270-MNT-V1 270 Series Mt Kit
Power Adaptor
JW627A	PD-3501G-AC 1p GE 802.3af Midspan

Compare to Similar Items

Table 3 shows the comparison.

Model	JX966A	R2H28A
Series	Aruba AP-365	Aruba AP-505
AP type	Outdoor, dual radio, 5 GHz 802.11ac and 2.4 GHz 802.11n	Indoor, dual radio, 5GHz and 2.4GHz 802.11ax 2x2 MIMO
Antenna	Integrated Omni antennas (H and V polarized) - 2.7 dBi @ 2.4 GHz - 4.3 dBi @ 5.x GHz	2 Internal Omni-directional 5.7 dBi Antenna
Supported data rates (Mbps)	● 802.11b: 1, 2, 5.5, 11 ● 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 ● 802.11n: 6.5 to 300 (MCS0 to MCS15) ● 802.11ac: 6.5 to 867 (MCS0 to MCS9, NSS = 1 to 2)	● 802.11b: 1, 2, 5.5, 11 ● 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 ● 802.11n: 6.5 to 300 (MCS0 to MCS15, HT20 to HT40), 400 with 256-QAM ● 802.11ac: 6.5 to 867 (MCS0 to MCS9, NSS = 1 to 2, VHT20 to VHT80), 1,083 with 1024-QAM ● 802.11ax (2.4GHz): 3.6 to 574 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE40) ● 802.11ax (5GHz): 3.6 to 1,201 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE80)

Get More Information

Do you have any questions about the JX966A?

Specific Data Sheet:

JX966A Specification
Series	Aruba AP-365
AP type	Indoor, dual radio, 5GHz 802.11ax 4x4 MIMO and 2.4 GHz 802.11ax 2x2 MIMO
Description	Aruba AP-365 (RW) 802.11n/ac Dual 2x2:2 Radio Integrated Omni Antenna Outdoor AP
Dimension (excluding mount bracket)	165mm (W) x 165mm (D) x 110mm (H)
Weight	807g
OperatingTemperature	-40°C to +55°C (-40°F to +131°F) ambient in full sun
Storage Temperature	-40°C to +70°C (-40°F to +158°F)
Humidity	5% to 95% non-condensing
Supported frequency bands (country-specific restrictions apply)	● 2.400 to 2.4835 GHz ● 5.150 to 5.250 GHz ● 5.250 to 5.350 GHz ● 5.470 to 5.725 GHz ● 5.725 to 5.850 GHz ● 5.850 to 5.895 GHz
Available channels	Dependent on configured regulatory domain
Supported radio technologies	● 802.11b: Direct-sequence spread-spectrum (DSSS) ● 802.11a/g/n/ac: Orthogonal frequency-division multiplexing (OFDM) ● 802.11n/ac: 2x2 MU-MIMO with up to two spatial streams
Supported modulation types	● 802.11b: BPSK, QPSK, CCK ● 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM ● 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
Antenna	Integrated Omni antennas (H and V polarized) ● 2.7 dBi @ 2.4 GHz ● 4.3 dBi @ 5.x GHz
Supported data rates (Mbps)	● 802.11b: 1, 2, 5.5, 11 ● 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 ● 802.11n: 6.5 to 300 (MCS0 to MCS15) ● 802.11ac: 6.5 to 867 (MCS0 to MCS9, NSS = 1 to 2)
802.11n high-throughput (HT) support	HT20/40
802.11ac very high throughput (VHT) support	VHT20/40/80
802.11n/ac/ax packet aggregation	A-MPDU, A-MSDU
Transmit power	Configurable in increments of 0.5 dBm
Maximum (aggregate, conducted total) transmit power (limited by local regulatory requirements)	● 2.4-GHz band: +26 dBm (23 dBm per chain) ● 5-GHz bands: +25 dBm (22 dBm per chain)
Certifications	● CB Scheme Safety, cTUVus ● Wi-Fi CERTIFIED™ a,b,g,n ● Wi-Fi CERTIFIED™ ac (with wave 2 features) ● WPA, WPA2 and WPA3 – Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE)
