Aruba AP-315 (JW797A) Dual Radio 802.11ax Internal Antennas Access Point

JW797A is the Aruba AP-315 802.11n/ac 2x2:2/4x4:4 MU-MIMO Dual Radio Integrated Antenna AP. The Aruba 310 Series access points deliver high performance and superb user experience for mobile devices, Internet of Things (IoT) devices, and applications in dense office environments. Featuring the 4x4:4SS MU-MIMO capability, advanced Aruba ClientMatch radio management, and Aruba Beacon technologies, the 310 Series enables an all-wireless digital work environment in a cost-effective manner.

Quick Specification

Table 1 shows the Quick Specification.

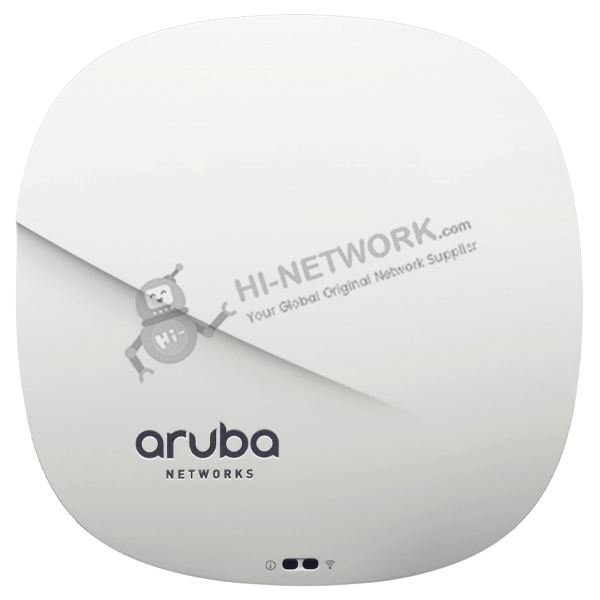

Figure 1 shows the appearance of JW797A.

Product Details

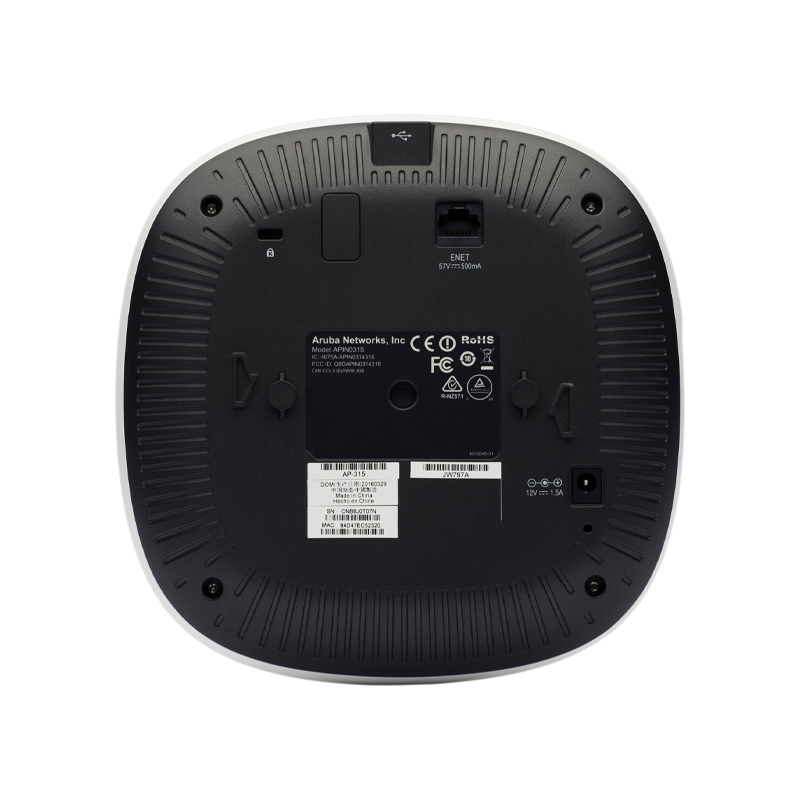

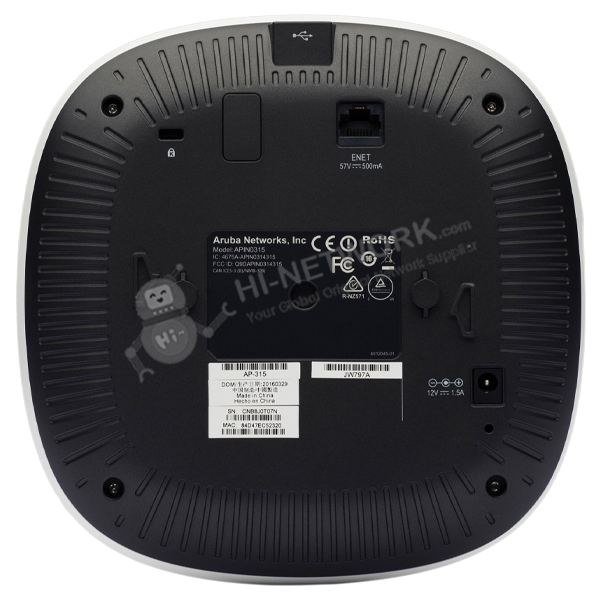

Figure 2 shows the back panel of JW797A.

Benefitss

● Dual Radio 802.11ac access point with Multi-User MIMO

● Built-in Bluetooth Low-Energy (BLE) radio

● Advanced Cellular Coexistence (ACC)

● Quality of service for unified communication apps

● RF Management

- Adaptive Radio Management (ARM) technology automatically assigns channel and power settings, provides airtime fairness, and ensures that APs stay clear of all sources of RF interference to deliver reliable, high-performance WLANs.

- The Aruba 310 Series Access Points can be configured to provide part-time or dedicated air monitoring for spectrum analysis and wireless intrusion protection, VPN tunnels to extend remote locations to corporate resources, and wireless mesh connections where Ethernet drops are not available.

● Intelligent app visibility and control

● Security

- Integrated wireless intrusion protection offers threat protection and mitigation, and eliminates the need for separate RF sensors and security appliances.

- IP reputation and security services identify, classify, and block malicious files, URLs and IPs, providing comprehensive protection against advanced online threats.

- Integrated Trusted Platform Module (TPM) for secure storage of credentials and keys.

● Intelligent Power Monitoring (IPM):

- Enables the AP to continuously monitor and report its actual power consumption and optionally make autonomous decisions to disable certain capabilities

- For the 310 Series Access Points, the IPM power-save feature applies when the unit is powered by an 802.3af PoE source. By default, the USB interface will be the first feature to turn off if AP power consumption will exceed the available power budget. In rare cases it may be necessary to take additional power saving measures, but in most cases, the 310 Series Access Points will operate in unrestricted mode.

The Accessories

Table 2 shows the accessories of JW797A.

Compare to Similar Items

Table 3 shows the comparison.
