Aruba AP-203H (RW) (JY693A) Flex Radio 802.11ac Internal Antennas Unified Hospitality Access Point


The JY693A is an Aruba AP-203H (RW) Unified Access Point designed for hospitality and branch deployments. This compact and versatile access point offers flexible mounting options, dual-band Wi-Fi, and wired connectivity, providing an optimal wireless experience for users and guests.


Quick Specification


Table 1 shows the Quick Specification.

Model

JY693A

Series

Aruba AP-203H

AP type

Indoor, flexible radio:

● 5GHz 802.11ac 2x2 MIMO OR 2.4GHz 802.11n 2x2 MIMO, or

● 5GHz 802.11ac 1x1 AND 2.4GHz 802.11n 1x1

Description

AP-203H (RW) Flex-radio 802.11ac 2x2 Unified Hospitality AP with Internal Antennas

Dimension (including single-gang wall box mount plate)

86mm (W) x 26.5mm (D) x 140mm (H)

Weight

225g

OperatingTemperature

0°C to +40°C (+32°F to +104°F)

Storage Temperature

-40°C to +70°C (-40°F to +158°F)

Humidity

5% to 93% non-condensing

Maximum number of BSSIDs

16 BSSIDs per radio

Supported frequency bands (country-specific restrictions apply)

● 2.400 to 2.4835GHz

● 5.150 to 5.250GHz

● 5.250 to 5.350GHz

● 5.470 to 5.725GHz

● 5.725 to 5.850GHz

Antenna

2 integrated dual-band moderately directional antennas

Maximum No. of associated client devices

Up to 256 associated client devices per radio

Supported data rates (Mbps)

● 802.11b: 1, 2, 5.5, 11

● 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54

● 802.11n: 6.5 to 300 (MCS0 to MCS15)

● 802.11ac: 6.5 to 867 (MCS0 to MCS9, NSS = 1 to 2 for VHT20/40/80)

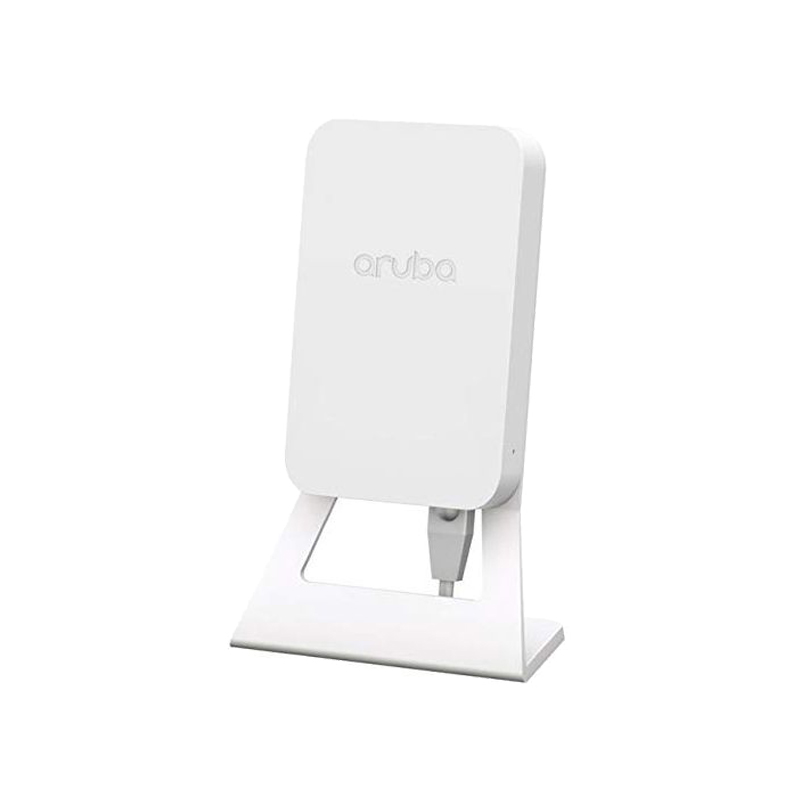

Figure 1 shows the appearance of JY693A.

front-panel-jy693a-datasheet


Product Details

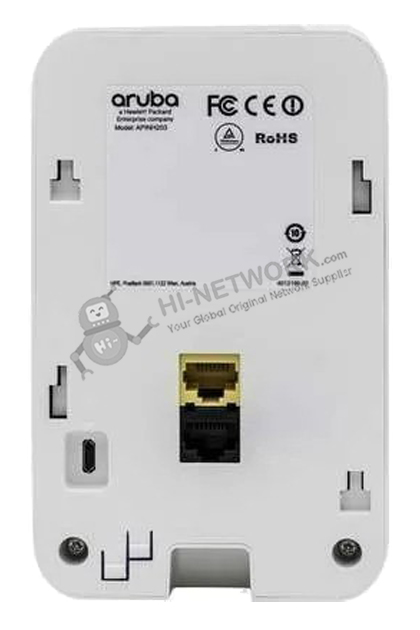

Figure 2 shows the back panel of JY693A.

back-panel-jy693a-datasheet


Unique Features


● Two devices in one

- The 203H ships with everything you need to deploy as a wall-mounted (hospitality) AP, attaching directly to a standard single-gang data wall-box. The 203H can also be easily converted to a desk mounted (remote) AP, using an optional accessory stand.


● Deploy with or without controller

- The 203H can be deployed in either controller-based (ArubaOS) or controllerless (InstantOS) deployment mode.


● New 802.11ac flexible radio architecture

- The 203H AP is software configurable to operate in either 1x1 dual radio mode, or 2x2 single radio dual-band mode.

- Supports up to 867Mbps in the 5GHz band (with 2SS/VHT80 clients) or up to 400Mbps in the 2.4 GHz band (with 2SS/VHT40 clients). In 1x1 dual radio mode, these max speeds are up to 433Mbps and 200Mbps respectively.


● Optional Bluetooth Low-Energy (BLE) radio module support

- Enables location-based services and other capabilities.

- USB BLE radio module securely attaches to AP


● RF Management

- Adaptive Radio Management (ARM) technology automatically assigns channel and power settings, provides airtime fairness and ensures that APs stay clear of all sources of RF interference to deliver reliable, high-performance WLANs

- The 203H can be configured to provide part-time or dedicated air monitoring for wireless intrusion protection, VPN tunnels to extend remote locations to corporate resources, and wireless mesh connections where Ethernet drops are not available.


● Security

- Integrated wireless intrusion protection offers threat protection and mitigation, and eliminates the need for separate RF sensors and security appliances.

- IP reputation and security services identify, classify, and block malicious files, URLs and IPs, providing comprehensive protection against advanced online threats.

- To improve simplicity and security, Dynamic Segmentation enforces user, device and application-aware policies on Aruba wired and wireless networks.


● Intelligent app visibility and control

- AppRF technology leverages deep packet inspection to classify and block, prioritize, or limit bandwidth for thousands of applications in a range of categories.


● Quality of service for unified communication apps

- Supports priority handling and policy enforcement for unified communication apps, including Microsoft Skype for Business with encrypted videoconferencing, voice, chat and desktop sharing.


The Accessories


Table 2 shows the accessories of JY693A.

Accessory Model

Description

JY700A

Aruba AP-203H-MNTW1 Wall Mount Kit

JY701A

Aruba AP-203H-MNTD1 Desk Mount Kit

JY702A

Aruba AP-203H-MNTR1 Modular Mount Kit


Compare to Similar Items


Table 3 shows the comparison.

Model

Description

JY693A

Aruba AP-203H (RW) Unified AP

JY694A

Aruba AP-203R (RW) Unified Remote AP

JY680A

Aruba AP-203RP (RW) Unified AP

JY678A

Aruba AP-303 (RW) Unified AP


Get More Information


Do you have any questions about the JY693A?

Contact us now via [email protected].

Specific Data Sheet:


JY693A Specification

Series

Aruba AP-203H

AP type

Indoor, flexible radio:

● 5GHz 802.11ac 2x2 MIMO OR 2.4GHz 802.11n 2x2 MIMO, or

● 5GHz 802.11ac 1x1 AND 2.4GHz 802.11n 1x1

Description

AP-203H (RW) Flex-radio 802.11ac 2x2 Unified Hospitality AP with Internal Antennas

Dimension (including single-gang wall box mount plate)

86mm (W) x 26.5mm (D) x 140mm (H)

Weight

225g

OperatingTemperature

0°C to +40°C (+32°F to +104°F)

Storage Temperature

-40°C to +70°C (-40°F to +158°F)

Humidity

5% to 93% non-condensing

5GHz radio

Two spatial stream Single User (SU) MIMO for up to 867Mbps wireless data rate to individual 2x2 VHT80 client devices

2.4GHz radio

Two spatial stream Single User (SU) MIMO for up to 400Mbps wireless data rate to individual 2x2 VHT40 client devices (300Mbps for HT40 802.11n client devices)

Maximum number of BSSIDs

16 BSSIDs per radio

Supported frequency bands (country-specific restrictions apply)

● 2.400 to 2.4835GHz

● 5.150 to 5.250GHz

● 5.250 to 5.350GHz

● 5.470 to 5.725GHz

● 5.725 to 5.850GHz

Available channels

Dependent on configured regulatory domain

Supported radio technologies

● 802.11b: Direct-sequence spread-spectrum (DSSS)

● 802.11a/g/n/ac: Orthogonal frequency-division multiplexing (OFDM)

Supported modulation types

● 802.11b: BPSK, QPSK, CCK

● 802.11a/g/n/ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM

Antenna

2 integrated dual-band moderately directional antennas

Maximum No. of associated client devices

Up to 256 associated client devices per radio

Supported data rates (Mbps)

● 802.11b: 1, 2, 5.5, 11

● 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54

● 802.11n: 6.5 to 300 (MCS0 to MCS15)

● 802.11ac: 6.5 to 867 (MCS0 to MCS9, NSS = 1 to 2 for VHT20/40/80)

802.11n high-throughput (HT) support

HT20/40

802.11ac very high throughput (VHT) support

VHT20/40/80

802.11n/ac packet aggregation

A-MPDU, A-MSDU

Transmit power

Configurable in increments of 0.5 dBm

Maximum (aggregate, conducted total) transmit power (limited by local regulatory requirements)

● 2.4GHz band: +18 dBm per chain, +21 dBm aggregate (2x2 mode)

● 5GHz band: +16 dBm per chain, +19 dBm aggregate (2x2 mode)

● Note: conducted transmit power levels exclude antenna gain. For total (EIRP) transmit power, add antenna gain

Certifications

● CB Scheme Safety, cTUVus

● UL2043 plenum rating

● Wi-Fi Alliance (WFA) certified 802.11a/b/g/n/ac
