WAN

GPON

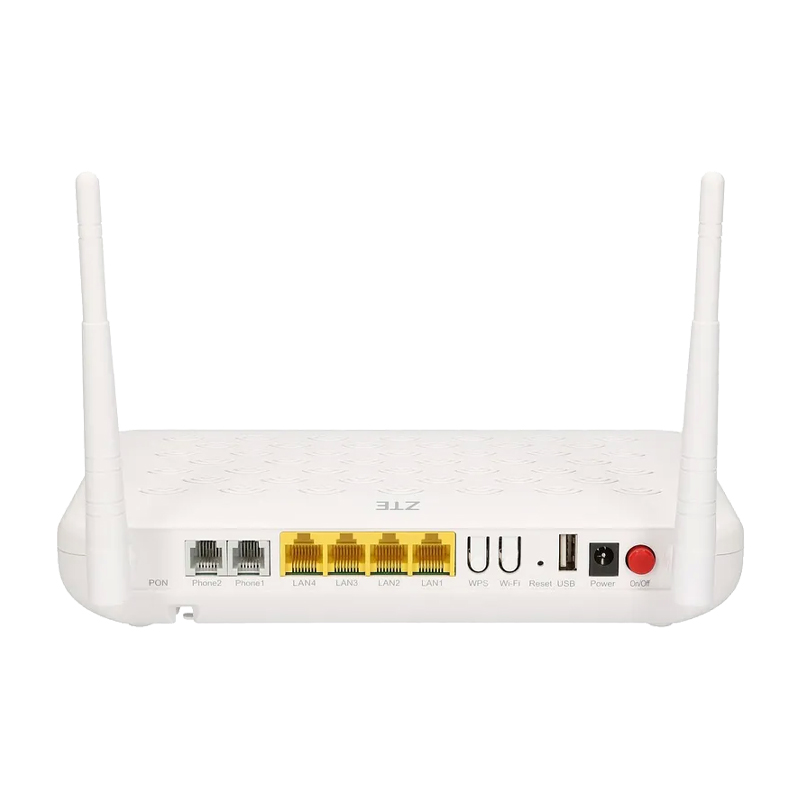

LAN

4xGE, 2POTS,1USB; 2x2 802.11b/g/n   Wi-Fi @2.4GHz

Buttons

Reset, On/Off, WPS, Wi-Fi

LEDs

Power, PON, LOS, Internet, Wi-Fi,   LAN1-4, Phone, WPS, USB

Power Supply

12V DC, 1.0A

Dimensions

185 mm*32 mm*110 mm (W*D*H)

Net Weight

260g

Working Temperature

-5°C ~ 45°C

Humidity

5% - 95%

Certification

CE; Wi-Fi; RoHS

Optical Port (Line Terminal)

1 * GPON interface (SC/APC)

User   Network Interface

● 4 * 10/100/1000Base_T interfaces

● Auto MDI/MDIX

● 2 * POTS (VoIP) interfaces

● 1 * WiFi interface: IEEE 802.11b/g/n

● 1 * USB interfaces

Transmission Rate

Line   Terminal

2.488Gbps   downstream and 1.244Gbps upstream

User   Side Interface

10/100/1000Mbps   auto-negotiation

WiFi   Interface

IEEE   802.11b/g/n

Transmission Distance

Link   distance

0 ~   20km max

Transmission Wavelength

Receiving

1,490   nm

Transmitting

1,310   nm

Receiving Sensitivity

Data

Better   than -28dBm

Optical Power

Transmitting   Optical Power

0.5~5dBm

Overload   Optical Power

-8   dBm

Service Function

Service   Function

● Service:   VoIP, Internet, IPTV, WiFi

● 802.1Q,   802.1P, 802.1ad and QoS policy

● IGMP   snooping and controllable multicast

● Loop   back function

● Auto   event alarm

● Security   management

● Remote   management

● Dying   Gasp

● Optical   power detection

● Support   TR069

● SIP/H.248/   MGCP

● G.711   /G.722 /G.723 /G.729 codec, T.30/T.38 FAX

● Up   to 8 T-CONTs and 32 GEM Ports

● Support   WPS

● Support   DHCP server

● DOS   protection

● USB   Local backup
