ZTE ZXHN F601C GPON ONU 1 GE port, CATV/ RF controllable port

21
5
5/5.0
Q/A
21 Sold/Mon
Detail: ZTE ZXHN F601C CATV GPON Terminal supports 1 GE port, CATV/ RF controllable port
Model: ZXHN F601C
Condition: Factory Sealed New
Related:
Warranty:
1-Year Warranty
100% Money-back
Free After-Sales Service
Shipping:
Air Shipping to United States
, Most Customers Receive during 5-7 Days
?
If you finish the payment today,
your order will arrive within the
estimated delivery time.
Ships to:
1
2-7 Days US$
Payment:
  • Pay by wire transfer.
  • Pay with your paypal.
  • Pay with your Visa credit card.
  • Pay with your Mastercard credit card.
  • Pay with your Discover Card.
  • Pay by Western Union.
More
Quantity
- +
add to Cart quick quote
Follow us:
Tags
add to Cart quick quote
  • Description
  • Specification
  • Reviews
  • Q&A
  • Warranty
  • Download

ZTE ZXHN F601C GPON ONU 1 GE port, CATV/ RF controllable port


The ZXHN F601C is a RF overlay Gigabit GPON ONT, which features a 10/100/1000Mbps auto-sensing LAN Port and a RF interface in a stylish yet compact enclosure for indoor use. It provides service providers the flexibility to leverage RF headends when delivering advanced fiber access services to subscribers. It is ideal for FTTH or small business deployments in bridge mode where high-speed data must be transported reliably and also operates well in conjunction with separate RGW devices to provide flexible triple-play services.



Quick Specification


Table 1 shows the Quick Specification.

Model

ZXHN F601C

Description

ZTE ZXHN F601C CATV GPON Terminal   supports 1 GE port, CATV/ RF controllable port

Power input

12V DC

Power consumption

less than 6W

Dimensions

300g

Weight

165x110x32mm

Operating Temperature

0℃ ~ 40℃ (32℉ ~ 104℉)

Humidity

5% ~ 95% (non-condensing)

Buttons

● 1 GPON Optical interface

● 1 RJ-45 port for Gigabit Ethernet   interface

● 1 CATV interface

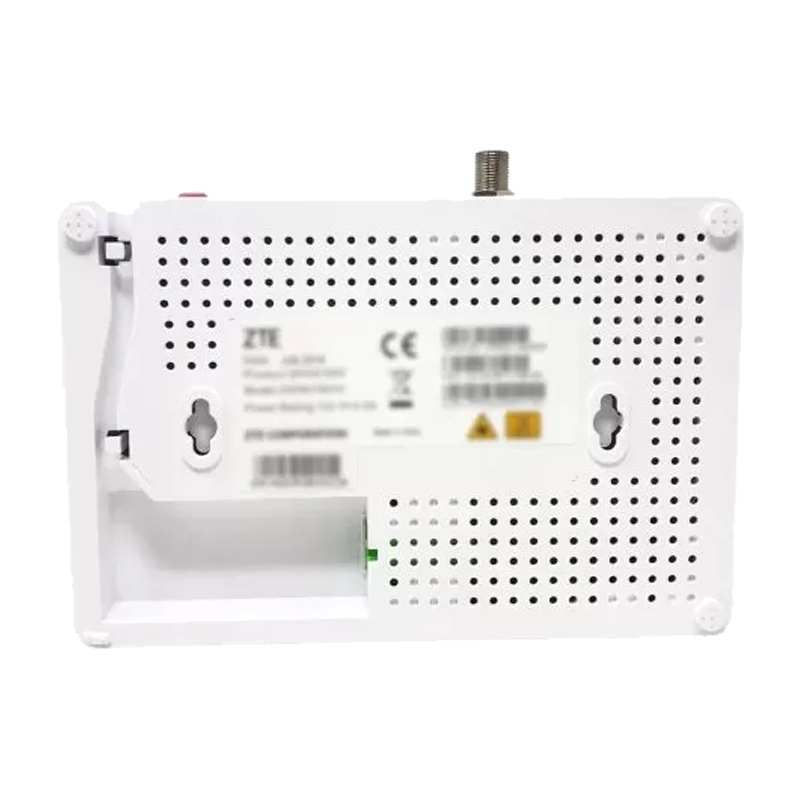

Figure 1 shows the appearance of ZXHN F601C.

front-zxhn-f601-datasheet


Product Details


GPON Interface

● Optical port: 1 x GPON interface (SC/PC or SC/APC)

● Transmission Distance: 0 ~ 20km

● Transmit rate: 2.488Gbps downstream; 1.244Gbps upstream

User Network Interface

● 1 x10/100/1000Base-T

● Half/full duplex; Auto MDI/MDIX; Auto negotiation

Optical Module

● Wavelength:

Receiving: 1480~1500 nm

Transmitting: 1290~1330 nm

● Receiving Sensitivity: -28dBm

● Transmitting Optical Power: 0.5~5dBm

Physical Performance

● Power consumption: <6W

● Dimensions: 110mm(W) x 90mm(H) x 53mm(D)

● Working temperature: 0oC ~ 40oC

● Working humidity: 5% ~ 95%

● Weight: about 190g

● Power supply: 12V DC

● Mounting mode: Desktop/Wall mounting

Main Function

● Supported service: Internet, IPTV

● GPON: 8 T-CONTs, 32 GEM Ports

● VLAN: 802.1Q, 802.1P, 802.1ad

● MAC address table: 256

● Multicast: IGMP v1/v2 Snooping

● Multicast group per user port: 256

● QoS: service flow classification based on physical port, Ethernet type; ingress rate limit; egress shaping

● Management: local web management, OMCI


Get More Information


Do you have any questions about the ZXHN F601 (AAP2WAR3)?

Contact us now via [email protected].

Specific Data Sheet:


ZXHN F601C   Specification

Model

ZXHN F601C

Description

ZTE ZXHN F601C CATV GPON Terminal   supports 1 GE port, CATV/ RF controllable port

Power input

12V DC

Power consumption

less than 6W

Dimensions

300g

Weight

165x110x32mm

Operating Temperature

0℃ ~ 40℃ (32℉ ~ 104℉)

Humidity

5% ~ 95% (non-condensing)

Buttons

● 1 GPON Optical interface

● 1 RJ-45 port for Gigabit Ethernet   interface

● 1 CATV interface

User   Network Interface

● Power On/OFF

● Reset

LEDs

● Power, PON, LOS, Internet, LAN, CATV

CATV

● F-Type connector

● RF output level of +17 dBmV

● RF Passband: 47 MHz~870 MHz

● Switched on/off by remote control

QoS

● Flexible packet classification

● Up to eight queues

● SP/WRR/SP+WRR

● Ingress rate limit

● Egress shaping

Security

● Traffic filtering based on UNI port,   VLAN ID, 802.1p, UNI+802.1p or VLAN+802.1p

● DoS attack defending

● Multiple VPN (IPSec, PPTP)   passthrough

● MAC address filtering

● Broadcast/ Unicast/ Multicast attack   protection

● Broadcast packet rate limit

● Dual image for firmware auto rollback

Management

● OMCI management

● WEB GUI management

● Local built-in diagnostic function

● Logs and statistics

● Remote upgrade by HTTP
