Huawei Switch S1730S-H24T4S-A (98010952)

USD

4.8 4.8/5.0 Reviews Q/A 18 sold/Mon
Detail:	S1730S-H24T4S-A (24 Ethernet 10/100/1000BASE-T ports, 4 Gigabit SFP, AC power supply)
Model:	S1730S-H24T4S-A (98010952)
Condition:	Factory Sealed New
Related:	Huawei Switch S1730S-H48T4S-A (98010956) Huawei Switch S1730S-L24TR-A (98010878)
Warranty:	3 Years-Warranty 100% Money-back Free After-Sales Service
Shipping:	Air Shipping to United States , Most Customers Receive during 5-7 Days ? If you finish the payment today, your order will arrive within the estimated delivery time.
Ships to: 7.0	2-7 Days US$
Payment:	Pay by wire transfer. Pay with your paypal. Pay with your Visa credit card. Pay with your Mastercard credit card. Pay with your Discover Card. Pay by Western Union. More

Description
Specification
Reviews
Q&A
Warranty
Download

Huawei Switch S1730S-H24T4S-A (98010952)

S1730S-H24T4S-A is a Huawei S1730S series switch, providing 24 Ethernet 10/100/1000BASE-T ports, 4 Gigabit SFP, and AC power supply. Huawei CloudEngine S1730S series switches are designed for small to medium-sized businesses, including Internet cafes, hotels, schools, and others. With feature-rich services and a silent energy-saving design that’s easy to install and maintain, CloudEngine S1730S helps customers build secure, reliable, and high-performance networks.

Quick Specification:

Model	S1730S-H24T4S-A
Part Number	98010952
Memory	1 GB
Flash memory	512 MB in total. To view the available flash memory size, run the display version command.
Description	S1730S-H24T4S-A (2410/100/1000BASE-T ports, 4GE SFP ports, AC power)
Redundant power supply	Not supported
Weight with packaging [kg(lb)]	4.08
Dimensions without packaging (H x W x D) [mm(in.)]	Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.7 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 227.0 mm (1.72 in. x 17.4 in. x 8.94 in.)

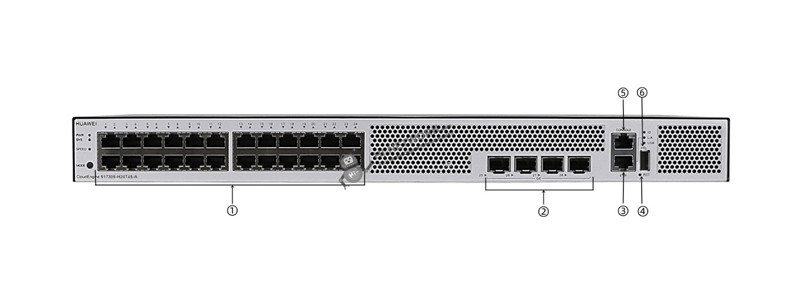

The Front Panel:

s1730s-h24t4s-a-front-datasheet

①	Twenty-four 10/100/1000BASE-T ports
②	Four 1000BASE-X ports
③	One ETH management port
④	One RST button
⑤	One console port
⑥	One USB port

The Back Panel:

s1730s-h24t4s-a-back-datasheet

①	Ground screw
②	Jack reserved for AC power cable locking strap
③	AC power socket

The Accessories for S1730S-H24T4S-A

Applicable Modules:

Product	Description
eSFP-GE-SX-MM850	Optical Transceiver, eSFP, GE, Multi-mode Module (850nm, 0.55km, LC)
SFP-GE-LX-SM1310	Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 10km, LC)
S-SFP-GE-LH40-SM1310	Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 40km, LC)
S-SFP-GE-LH40-SM1550	Optical Transceiver, eSFP, GE, Single-mode Module (1550nm, 40km, LC)
S-SFP-GE-LH80-SM1550	Optical Transceiver, eSFP, GE, Single-mode Module (1550nm, 80km, LC)
eSFP-GE-ZX100-SM1550	Optical Transceiver, eSFP, GE, Single-mode Module (1550nm, 100km, LC)
SFP-GE-LX-SM1310-BIDI	Optical Transceiver, eSFP, GE, BIDI Single-mode Module (TX1310/RX1490, 10km, LC)
SFP-GE-LX-SM1310-BIDI	BiDi Transceiver, eSFP, Tx1310nm/Rx1490nm, 1.25Gb/s, -9dBm, -3dBm, -19.5dBm, LC, SM, 10km
SFP-GE-LX-SM1490-BIDI	Optical Transceiver, eSFP, GE, BIDI Single-mode Module (TX1490/RX1310, 10km, LC)
SFP-GE-LX-SM1490-BIDI	BiDi Transceiver, eSFP, Tx1490nm/Rx1310nm, 1.25Gb/s, -9dBm, -3dBm, -19.5dBm, LC, SM, 10km
CWDM-SFPGE-1471	CWDM Optical Transceiver, eSFP, 2.5G, Single-mode Module (1471nm, 80km, LC)
CWDM-SFPGE-1491	CWDM Optical Transceiver, eSFP, 2.5G, Single-mode Module (1491nm, 80km, LC)
CWDM-SFPGE-1511	CWDM Optical Transceiver, eSFP, 2.5G, Single-mode Module (1511nm, 80km, LC)
DWDM-SFPGE-1560-61	DWDM Optical Transceiver.eSFP.2.5G.Single-mode Module (1560.61nm.120km.LC)
SFP-1000BaseT	1000BASE-T (RJ45) SFP Electrical Module, Auto Negotiate, 100m

Compare to Similar Items:

Model	S1730S-H24T4S-A	S1730S-H48T4S-A
Forwarding Performance	41.66 mpps	77.38 mpps
Switching Capacity	168 Gbit/s	216 Gbit/s
Fixed Ports	24 x 10/100/1000Base-T Ethernet ports, 4 x GE SFP ports	48 x 10/100/1000Base-T Ethernet ports, 4 x GE SFP ports

Get More Information

Do you have any question about the S1730S-H24T4S-A 98010952?

Specific Data Sheet:

Part Number	98010952
Model	S1730S-H24T4S-A
First Supported Version	V200R019C10
Wide [mm]	442.0 mm
Depth [mm]	220.0 mm
Height [mm]	43.6 mm
Chassis height [U]	1
Weight with packaging [kg(lb)]	4.08
Typical power consumption [W]	28
Maximum power consumption [W]	34
Typical heat dissipation [BTU/hour]	95.54
Maximum heat dissipation [BTU/hour]	116
Heat dissipation mode	Natural heat dissipation without fans
Power supply mode	AC built-in
Rated input voltage [V]	- AC input: 100 V AC to 240 V AC, 50/60 Hz - High-Voltage DC input: 240 V DC
Input voltage range [V]	- AC input: 90 V AC to 264 V AC, 47 Hz to 63 Hz - High-Voltage DC input: 190 V DC to 290 V DC
Maximum input current [A]	2 A
Number of card slots	0
Number of power slots	0
Memory	1 GB
Flash memory	512 MB in total. To view the available flash memory size, run the display version command.
Redundant power supply	Not supported
Types of fans	None
Noise at normal temperature (acoustic pressure) [dB(A)]	Noise-free (no fans)
Noise at normal temperature (acoustic power) [dB(A)]	Noise-free (no fans)
Airflow direction	-
Long-term operating temperature [°C(°F)]	-5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.)
Operating altitude	< 5000 m (16404.2 ft.)
Short-term operating temperature [°C(°F)]	Not supported
Storage temperature [°C(°F)]	-40°C to +70°C (-40°F to +158°F)
Restriction on the operating temperature variation rate	When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). The switch cannot be started when the ambient temperature is lower than 0°C (32°F). The operating temperature of the switch is -5°C to +40°C (23°F to 104°F) when it uses GE SFP optical modules with 40 km or longer transmission distance.
Long-term operating relative humidity [RH]	5% to 95%, noncondensing
Long-term operating altitude [m(ft.)]	0-5000 m (0-16404 ft.)
Storage altitude [m(ft.)]	0-5000 m (0-16404 ft.)
MTBF [year]	92.82
MTTR [hour]	2
Availability	>0.99999
1000M electrical interface	24
1000M optical interface	4
USB	Supported
Console port	RJ45
Eth Management port	RJ45
Service port surge protection	Common mode: ±7 kV
Power supply surge protection	±6 kV in differential mode, ±6 kV in common mode
RPS input	Not supported
PoE	Not supported
