Model

CE6857-EI-B-B0B

Part Number

02352CHR

Description

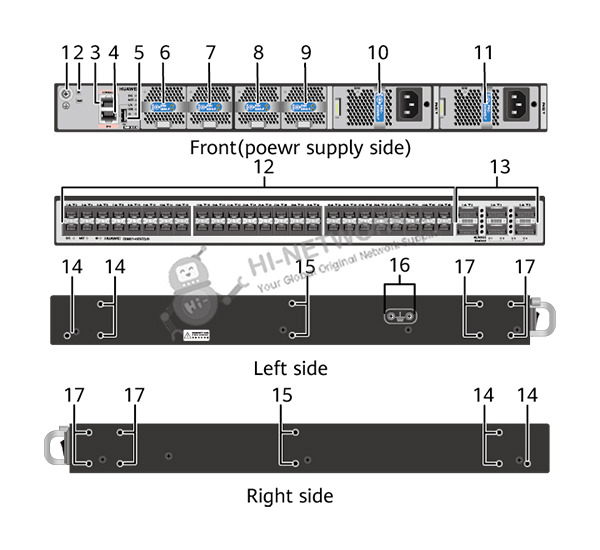

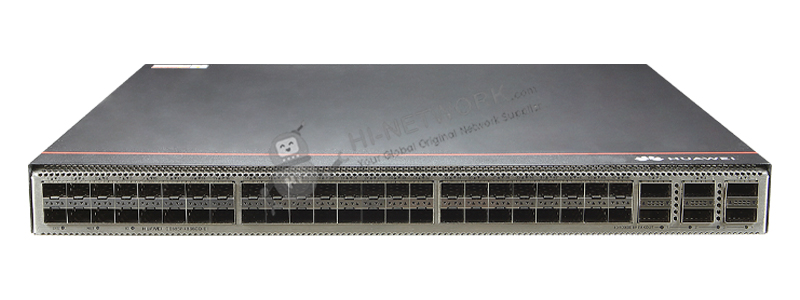

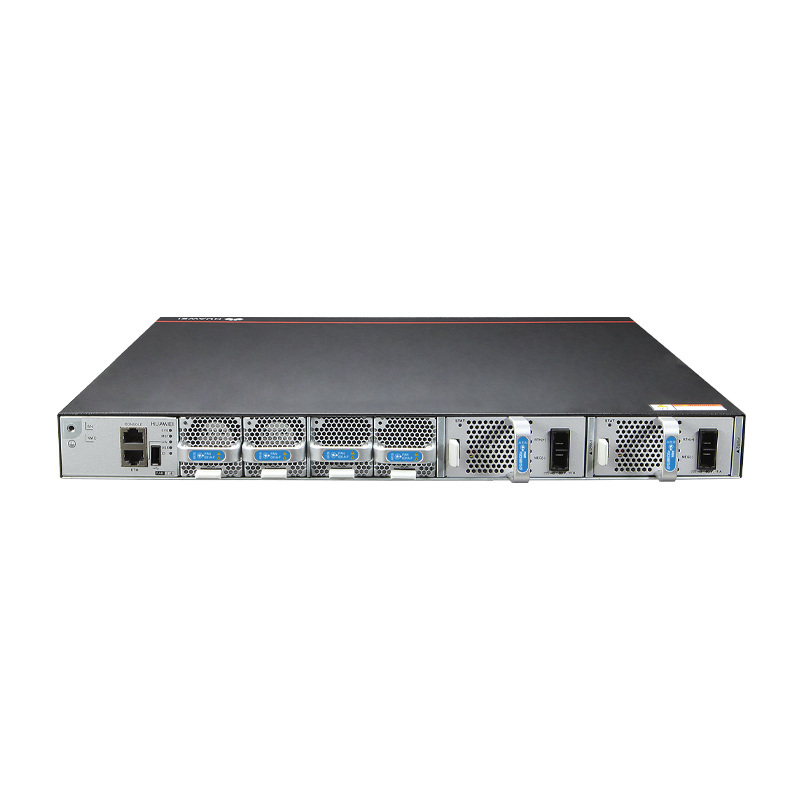

CE6857-48S6CQ-EI switch (48*10GE SFP+, 6*100GE QSFP28, 2*AC power modules, 4*fan modules, port-side intake)

Dimensions without packaging (H x W x D) [mm (in.)]

43.6 mm x 442 mm x 420 mm (1.72 in. x 17.40 in. x 16.54 in.)

Weight without packaging [kg (lb)]

5.3 kg (11.68 lb)

Weight without packaging (full configuration) [kg (lb)]

7.6 Kg (16.76 lb) (with two power modules and four fan modules, calculated based on the heaviest model if multiple models are supported)

Chassis height [U]

1

Installation Type

Cabinet Installation

Switching capacity

To obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel.

CPU

4-core, 1.4 GHz

Memory

DRAM: 4 GB

NOR Flash

64 MB

NAND Flash

2GB

USB

Supported

Power supply mode

DC pluggable, AC pluggable

Console port

RJ45

Downlink Service interface

48 x 10GE SFP+ (10GE LRM/80 km linear optical modules are not supported. In addition, the 1000BASE-X auto-negotiation function is not supported. To connect the two interfaces at both ends of a link, disable the auto-negotiation function of the peer interface. After the connection, in some port failure scenarios, the interface on one end may be Up and the interface on the other end may be Down.)

Uplink Service interface

6*40GE/100GE QSFP28

Service port supporting the stack function

10GE optical ports, 40GE optical ports, and 100GE optical ports

RTC

Supported

Typical power consumption [W]

152 W (100% traffic load, SFP+ high-speed cables on 48 ports and QSFP28 high-speed cables on 6 ports, dual power modules)

195 W (100% traffic load, short-distance optical modules on all ports, normal temperature, dual power modules)

Typical heat dissipation [BTU/hour]

519 BTU/hour (100% traffic load, SFP+ high-speed cables on 48 ports and QSFP28 high-speed cables on 6 ports, dual power modules)

665 BTU/hour (100% traffic load, short-distance optical modules on all ports, dual power modules)

Static power consumption [W]

101 W

Static heat dissipation [BTU/hour]

345 BTU/hour

Maximum power consumption [W]

287 W

Maximum heat dissipation [BTU/hour]

979 BTU/hour

Number of power modules

2

Redundant power supply

1+1 backup

Rated input voltage [V]

600 W AC power module: 100 V AC to 240 V AC, 50/60 Hz

350 W DC power module: –48 V DC to –60 V DC

Input voltage range [V]

- 600 W AC&240 V DC power module: AC: 90 V AC to 290 V AC, 45 Hz to 65 Hz;

- 350 W DC power module: -38.4 V DC to -72 V DC

Maximum input current [A]

- 600 W AC power module: 100 V AC to 240 V AC, 9 A

- 350 W DC power module: –48 V DC to –60 V DC, 11 A

Rated output power [W]

- 600 W AC power module: 600 W

- 350 W DC power module: 350 W

Maximum output power [W]

- 600 W AC power module: 600 W

- 350 W DC power module: 350 W

Certification

- Compliance with safety standards

- Compliance with EMC standards

- Compliance with environment and environmental protection standards

Power supply surge protection [kV]

AC: 6 kV in common mode and 6 kV in differential mode

DC: 4 kV in common mode and 2 kV in differential mode

Types of fans

Pluggable

Number of fans

4

Redundant fans

The device supports 3+1 backup of fan modules that work in hot standby mode. The system can operate properly for a short period of time after a single fan module fails. You are advised to replace the faulty fan module immediately.

Heat dissipation mode

Air cooling

Airflow direction

Front-to-back or back-to-front airflow, depending on the selected fan modules and power modules

Availability

0.99999576002

MTBF [year]

45.3 years

MTTR [hour]

1.68 hours

Noise at normal temperature (27°C, sound pressure) [dB(A)]

Back-to-front airflow: < 53 dB(A)

Front-to-back airflow: < 52 dB(A)

Noise at high temperature (40°C, sound pressure) [dB(A)]

Front-to-back airflow: 69 dBA on average (maximum: 76dBA)

Back-to-front airflow: 67 dBA on average (maximum: 72dBA)

Long-term operating altitude [m (ft.)]

< 5000 m (16404 ft.)

Long-term operating relative humidity [RH]

5% RH to 95% RH, noncondensing

Long-term operating temperature [°C (°F)]

0°C to 40°C (32°F to 104°F) at an altitude of 0-1800 m (0-5906 ft.)

NOTE: When the altitude is 1800-5000 m (5096-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).

Storage altitude [m (ft.)]

< 5000 m (16404 ft.)

Storage relative humidity [RH]

5% RH to 95% RH, noncondensing

Storage temperature [°C (°F)]

-40°C to +70°C (-40°F to +158°F)
