Huawei Switch S5735-L24T4S-A (98010914)

S5735-L24T4S-A is the Huawei S5735-L switch with 24 x 10/100/1000Base-T ports, 4 x GE SFP ports. Huawei CloudEngine S5735-L is a series of simplified gigabit access switches that provide 12–48 flexible all-GE downlink ports and four fixed GE or 10 GE uplink ports. They are designed for enterprise campus network access and gigabit to the desktop. Built on next-generation, high-performance hardware and powered by Huawei’s Versatile Routing Platform (VRP), CloudEngine S5735-L switches feature flexible Ethernet networking, diversified security control, and support for multiple Layer 3 routing protocols — providing higher performance and more powerful service processing capabilities for networks.

Quick Specification

Table 1 shows the Quick Specification.

Model	S5735-L24T4S-A
Part Number	98010914
Description	S5735-L24T4S-A (2410/100/1000BASE-T ports, 4GE SFP ports, AC power)
First supported version	V200R019C00
Memory	1 GB
Flash memory	512 MB in total. To view the available flash memory size, run the display version command.
PoE	Not supported
Weight with packaging [kg(lb)]	4.08
Dimensions without packaging (H x W x D) [mm(in.)]	Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.7 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 227.0 mm (1.72 in. x 17.4 in. x 8.94 in.)

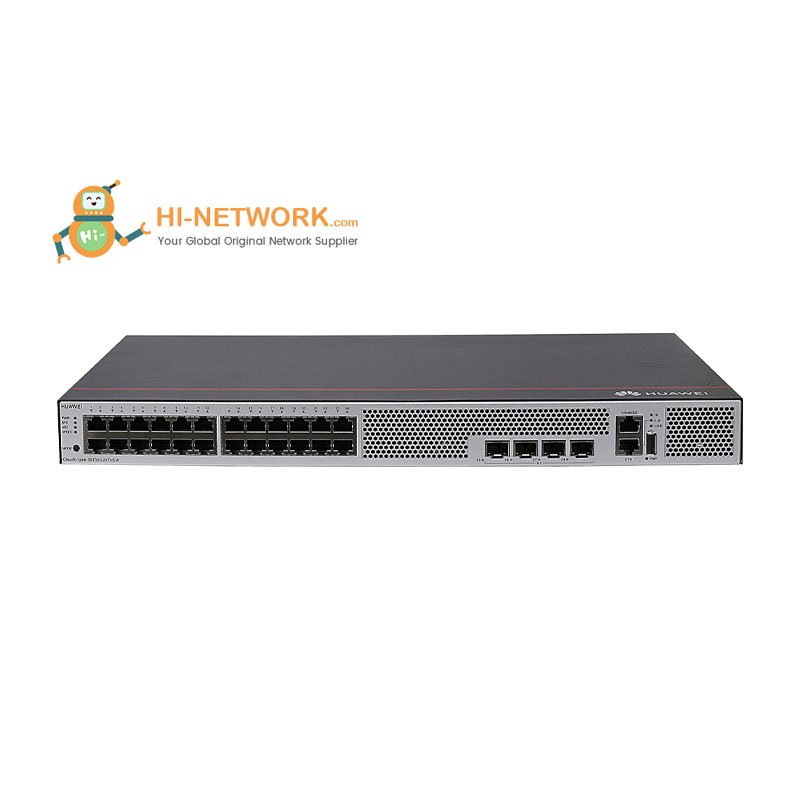

Figure 1 shows the appearance of S5735-L24T4S-A.

front-s5735-l24t4s-a-datasheet

Product Details

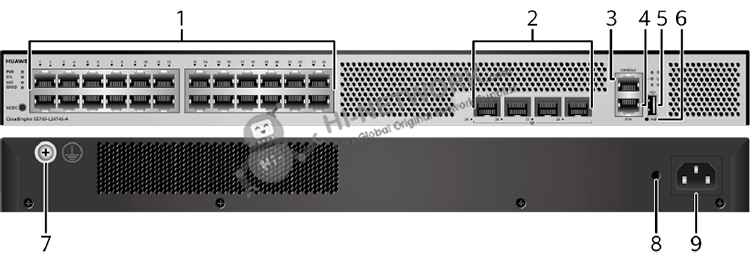

Figure 2 shows the structure of S5735-L24T4S-A.

structure-s5735-l24t4s-a-datasheet

Note:

(1)	Twenty-four 10/100/1000BASE-T ports	(6)	One PNP button
(2)	Four 10GE SFP+ ports	(7)	Ground screw
(3)	One console port	(8)	Jack for AC power cable locking strap
(4)	One ETH management port	(9)	AC socket
(5)	One USB port
