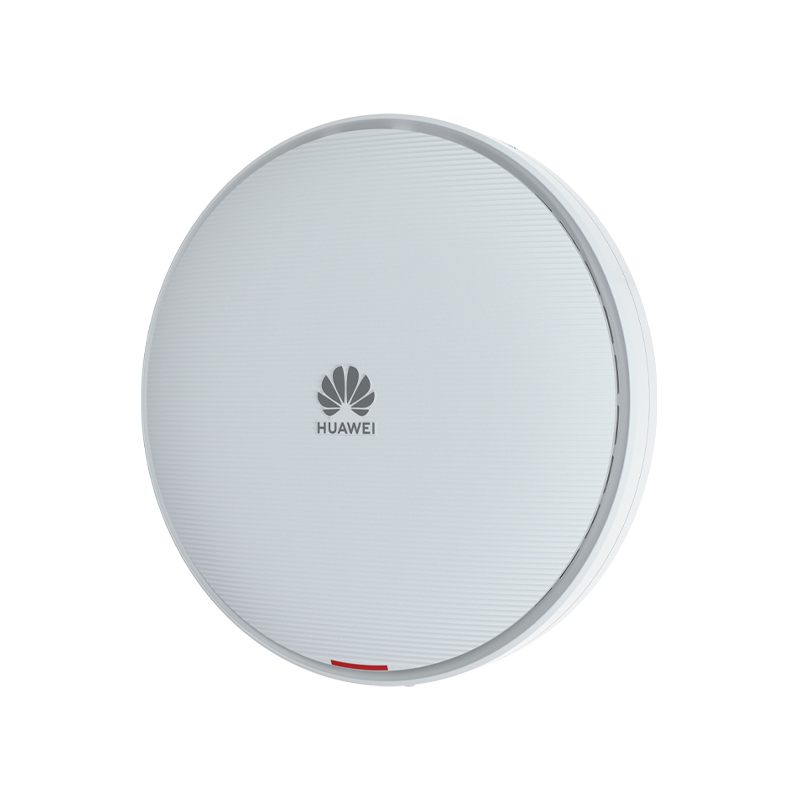

Model

AirEngine 5760-51

Part Number

02353GES, 02353GES-001

Description

AirEngine5760-51(11ax indoor, 2+4 dual bands, smart antenna, USB, IoT Slot, BLE, Optional RTU upgrade to 4+4/2+2+4/2+4+Scan)

Installation Type

Wall, Ceiling, T-Rail

Dimensions without packaging (H x W x D) [mm(in.)]

Diameter x depth: 220 mm x 51 mm (8.66 in. x 2.01 in.)

Dimensions with packaging (H x W x D) [mm(in.)]

94 mm x 306 mm x 285 mm (3.70 in. x 12.05 in. x 11.22 in.)

Weight without packaging [kg(lb)]

1.15 kg (2.53 lb)

Storage

NAND Flash 512 MB; NOR Flash 16 MB

Console port

BLE console

Maximum power consumption [W]

28.8 (excluding USB and IoT cards)

Maximum heat dissipation [BTU/hour]

98.3 (without USB or IoT card)

Power supply mode

PoE, DC power adapter

Rated input voltage [V]

48 V

Input voltage range [V]

DC: 43.2 V to 57.6 V

PoE: 802.3bt/at

Service port surge protection

PoE port:

Differential mode (48 V-RTN): 0.5 kV (1.2/50 us, 42 ohms), criterion B

Common mode (8 wires to ground): 6 kV (1.2/50 us, 42 ohms), criterion B

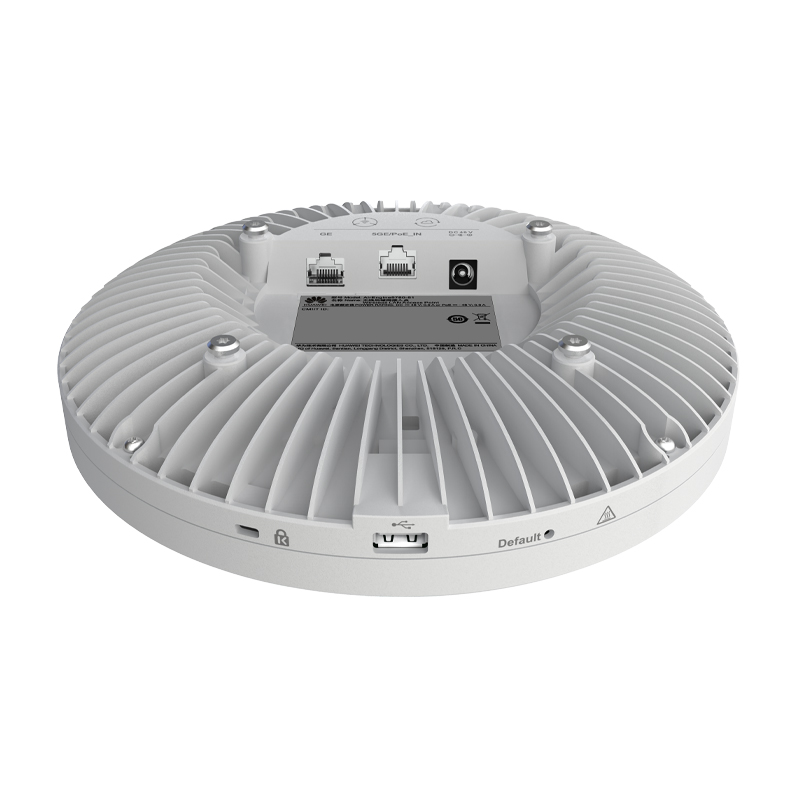

Maximum number of physical ports on the entire device

5GE (RJ45) x 1, 10M/100M/1000M/2.5GE/5GE auto-sensing

GE (RJ45) x 1, 10M/100M/1000M auto-sensing

Long-term operating temperature [°C(°F)]

–10°C to +50°C (14°F to 122°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum temperature of the device decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.)

Storage temperature [°C(°F)]

–40°C to +70°C (–40°F to +158°F)

Long-term operating relative humidity [RH]

5% RH to 95% RH, non-condensing

Long-term operating altitude [m(ft.)]

–60 m to +5000 m (–196.85 ft to +16404.20 ft)

Atmospheric pressure [kPa]

53kPa - 106kPa ETSI 300 019-2-3

Ground

Ground

USB

USB 2.0

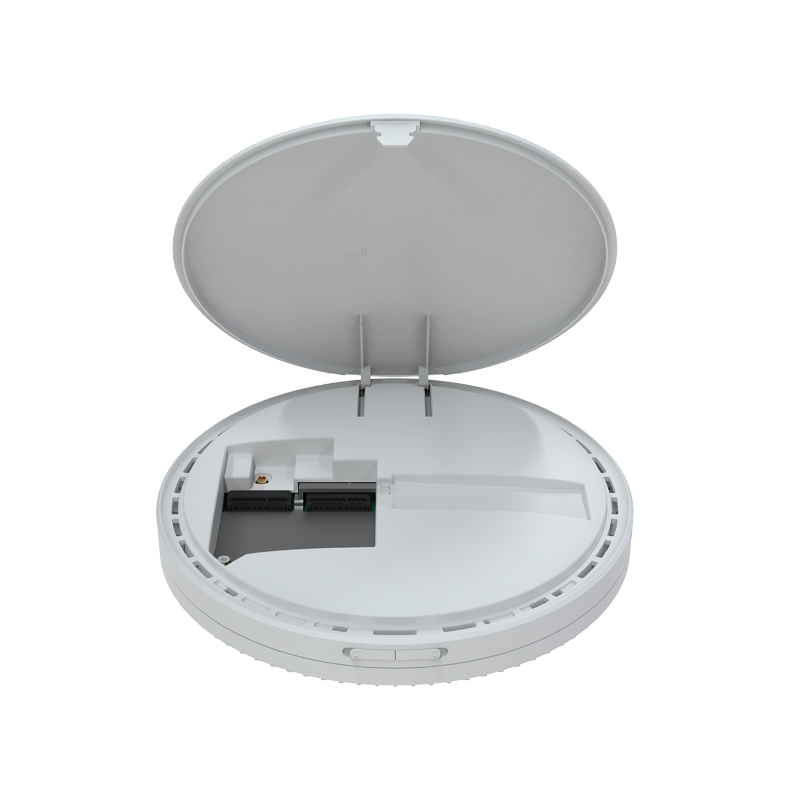

IoT slot

IoT card

BLE

BLE5.2

Radio number

2/3

Operating frequency band

2.4GHz,5GHz

MIMO spatial streams

Triple-radio mode:

- Radio 0 (2.4 GHz): 2x2, maximum bandwidth of 40 MHz

- Radio 1 (5 GHz): 2x2 (high frequency band), maximum bandwidth of 80 MHz

- Radio 2 (5 GHz): 4x4 (low frequency band), maximum bandwidth of 80 MHz

Dual-radio mode:

- Radio 0 (2.4 GHz): 4x4, maximum bandwidth of 40 MHz

- Radio 1 (5 GHz): 4x4, maximum bandwidth 160 MHz

Wi-Fi standard

2.4 GHz: 802.11b/g/n/ax

5 GHz: 802.11a/n/ac/ac Wave 2/ax

Radio interface

Built-in smart antennas

Antenna gain

2.4 GHz: 4.5 dBi

5 GHz: 5.5 dBi

BLE: 4 dBi

Maximum transmit power

2.4 GHz: 26 dBm

5 GHz: 26 dBm

(Note: This is the total MIMO radio power, the same as:

2.4 GHz: 20 dBm/chain

5 GHz: 20 dBm/chain)

BLE: < 10 dBm

MTBF [year]

69.7

MTTR [hour]

0.5

Frequency stability [ppm]

+/-20

802.3bt power supply description

For 802.3bt class 6/class 8 power supply:

If an RTU license is loaded, no function is restricted.

If no RTU license is loaded, Wi-Fi supports only the following mode and other functions are not restricted:

- Dual-radio mode: 2.4 GHz (2x2) + 5 GHz (4x4)

- Triple-radio mode: 2.4 GHz (2x2) + 5 GHz (2x2, high band) + 5 GHz (2x2, low band)

802.3at power supply description

With an RTU license loaded:

Wi-Fi:

If the USB and IoT card slots are not used, the radio transmit power is not affected.

- Dual-radio mode: 2.4 GHz (4x4) + 5 GHz (4x4)

- Triple-radio mode: 2.4 GHz (2x2) + 5 GHz (2x2, high band) + 5 GHz (4x4, low band)

- Dual-radio + independent radio scanning mode: 2.4 GHz (2x2) + 5 GHz (4x4) + 5 GHz independent radio scanning

If the USB and IoT card slot are both used, the number of spatial streams, transmit power, and bandwidth may be affected. For details, contact the product manager.

Wired network port:

The speed of the 5GE electrical port is reduced to 2.5GE or lower. (In V200R021C10 and later versions, the GE electrical port is also available in standard dual-radio mode.)

Other ports:

Either the 5 W USB port or IoT card slot can be used at the same time. The IoT card slot takes precedence. If both of them are used, Wi-Fi can only work in dual-radio mode and the number of spatial streams, transmit power, and bandwidth may be affected. For details, contact the product manager.

Without an RTU license loaded:

Wi-Fi:

If no USB or IoT card slot is used, the radio transmit power is not affected.

- Dual-radio mode: 2.4 GHz (2x2) + 5 GHz (4x4)

- Triple-radio mode: 2.4 GHz (2x2) + 5 GHz (2x2, high band) + 5 GHz (2x2, low band)

If the USB and IoT card slot are both used, the number of spatial streams, transmit power, and bandwidth may be affected. For details, contact the product manager.

Wired network port:

The speed of the 5GE electrical port is reduced to 2.5GE or lower. (In V200R021C10 and later versions, the GE electrical port is also available in standard dual-radio mode.)

Other ports:

Either the 5 W USB port or IoT card slot can be used at the same time. The IoT card slot takes precedence. If both of them are used, Wi-Fi can only work in dual-radio mode and the number of spatial streams, transmit power, and bandwidth may be affected. For details, contact the product manager.

DC power supply description

If an RTU license is loaded, no function is restricted.

If no RTU license is loaded, Wi-Fi supports only the following mode and other functions are not restricted:

- Dual-radio mode: 2.4 GHz (2x2) + 5 GHz (4x4)

- Triple-radio mode: 2.4 GHz (2x2) + 5 GHz (2x2, high band) + 5 GHz (2x2, low band)
