Huawei Router AR157VW (02354416) Huawei Router AR157VW (02354416)
  • Huawei Router AR157VW (02354416)
  • Huawei Router AR157VW (02354416)

Huawei Router AR157VW (02354416)

511.4
4.8
4.8/5.0
Q/A
1 sold/Mon
Detail: AR157VW,ADSL2+ ANNEX A/M WAN,4FastEthernet LAN,802.11b/g/n AP,4FXS+1FXO,1 USB, AR0M1577BA00
Model: Huawei Router AR157VW (02354416)
Condition: Factory Sealed New
Related: Huawei Router AR151G-HSPA+7 (02352847) Huawei Router AR151W-P (02354246) Huawei Router AR157W (02354247)
Warranty:
3 Years-Warranty
100% Money-back
Free After-Sales Service
Shipping:
Air Shipping to United States
, Most Customers Receive during 5-7 Days
?
If you finish the payment today,
your order will arrive within the
estimated delivery time.
Ships to:
2.0
2-7 Days US$
Payment:
  • Pay by wire transfer.
  • Pay with your paypal.
  • Pay with your Visa credit card.
  • Pay with your Mastercard credit card.
  • Pay with your Discover Card.
  • Pay by Western Union.
More
Quantity
- +
add to Cart quick quote
add to Cart quick quote
  • Description
  • Specification
  • Reviews
  • Q&A
  • Warranty
  • Download

Huawei Router AR157VW (02354416)


Huawei AR G3 AR150 Series - AR157VW fixed interface access voice & wireless router AR0M1577BA00 provides routing, switching, voice and wireless functionality for small business or branch offices.


Quick Specification:

Model

AR157VW

Part Number

02354416

Memory

512 MB

Flash

512 MB

Service interfaces (standard configuration)

WAN interfaces: 1 ADSL-A/M interface

LAN interfaces: 4 10/100M auto-sensing Ethernet electrical interfaces

Voice interface: 4 FXS interfaces and 1 FXO interface

Extended slots

Not supported

Interface number

LAN interfaces: FE0-FE3

Power module type

External power adapter

Weight

2.8 kg (6.17 lb)

Dimensions (W x D x H)

Without rack-mounting bracket installed: 44.0 mm x 300.0 mm x 216.4 mm (1.73 in. x 11.81 in. x 8.52 in.)

With rack-mounting brackets installed: 44.0 mm x 482.6 mm x 216.4 mm (1.73 in. x 19.00 in. x 8.52 in.)

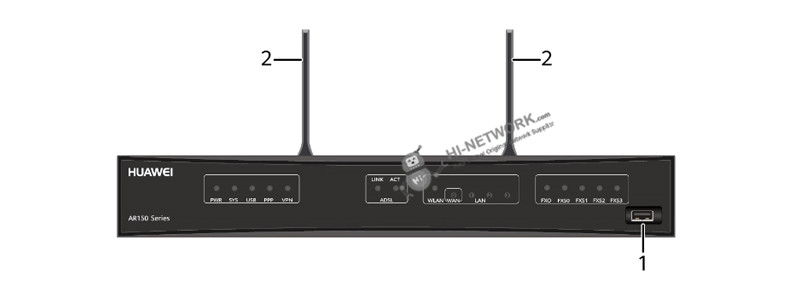

The Front Panel:

ar157vw-front-datasheet



USB interface (host)



Two Wi-Fi antennas

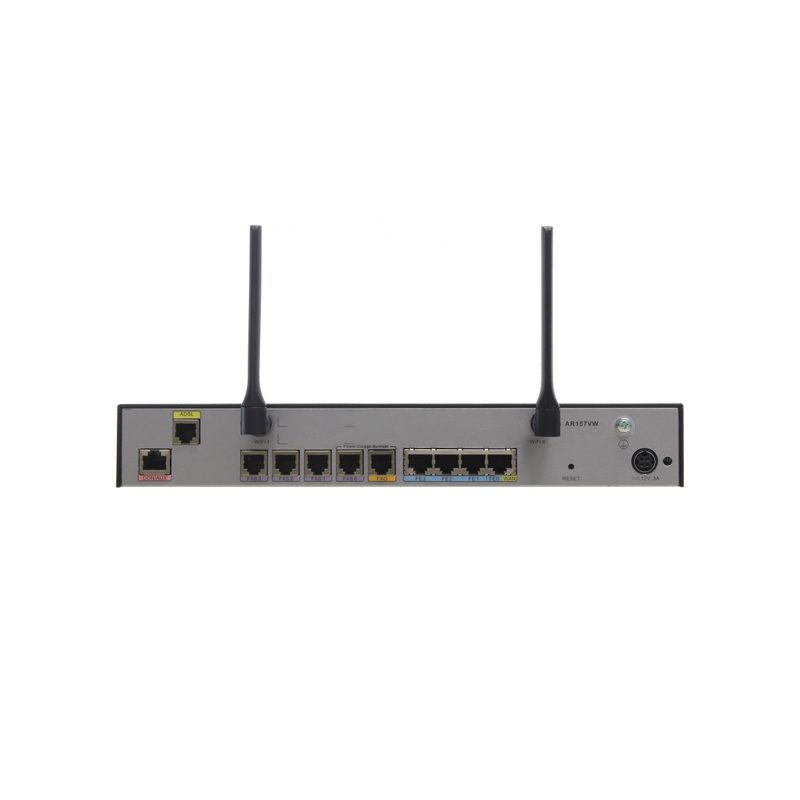

The Back Panel:


ar157vw-back-datasheet



CON/AUX interface



Four FXS interfaces



One FXO interface



LAN interfaces: four FE electrical interfaces



RESET button



Power jack



Jack for power cable locking strap



WAN interface: ADSL-A/M interface

11

Two Wi-Fi antenna interfaces

12

Product model silkscreen

13

Ground point

Compare to Similar Items:

Model

AR151VW

AR2220E

SIC Slots

0

4

Memory

512 MB

1 GB

Flash

512 MB

512 MB

Weight

2.8 kg (6.17 lb)

6 kg (13.2 lb)

Dimensions (W x D x H)

300.0 mm x 216.4 mm x 44.0 mm

442.0 mm x 420.0 mm x 44.5 mm

Get More Information

Do you have any question about the AR157VW 02354416?

Contact us now via[email protected]


Specific Data Sheet:

Part Number

02354416

Model

AR157VW

First Supported Version

V200R003C00

Memory

512 MB

Flash

512 MB

Service interfaces (standard configuration)

WAN interfaces: 1 ADSL-A/M interface

LAN interfaces: 4 10/100M auto-sensing Ethernet electrical interfaces

Voice interface: 4 FXS interfaces and 1 FXO interface

Extended slots

Not supported

Weight

2.8 kg (6.17 lb)

Dimensions (W x D x H)

Without rack-mounting bracket installed: 44.0 mm x 300.0 mm x 216.4 mm (1.73 in. x 11.81 in. x 8.52 in.)

With rack-mounting brackets installed: 44.0 mm x 482.6 mm x 216.4 mm (1.73 in. x 19.00 in. x 8.52 in.)

Processor

Dual-core, 533 MHz

Micro SD card (sd1 by default)

None

Hard disk

Not supported

Rated input voltage range (AC)

100 V to 240 V, 50 Hz/60 Hz

Maximum input voltage range (AC)

90 V to 264 V, 47 Hz to 63 Hz

Maximum output current

5 A

Maximum output power

60 W

RPS

Not supported

PoE

Not supported

Rated input voltage range (AC)

100 V to 240 V, 50 Hz/60 Hz

Maximum input voltage range (AC)

90 V AC to 264 V AC, 47 Hz to 63 Hz

Maximum power consumption

20.8 W

Fan

None

Airflow (facing the front panel)

None

Management interfaces

1 (RJ45)

CON/AUX interfaces

1 (RJ45)

USB 2.0

1

Service interfaces (standard configuration)

WAN interface: one ADSL-A/M interface

LAN interfaces: four FE electrical interfaces, in which FE0 LAN interface can be switched to a WAN interface, and two Wi-Fi antenna interfaces.

Extended slots

Not supported

Operating temperature

0°C to 45°C (32°F to 113°F)

Storage temperature

-40°C to +70°C

Operating relative humidity

5% to 95%, noncondensing

Operating altitude

< 5000 m (16404.2 ft.)
