Huawei Router AR151W-P (02354246) Huawei Router AR151W-P (02354246)
  • Huawei Router AR151W-P (02354246)
  • Huawei Router AR151W-P (02354246)

Huawei Router AR151W-P (02354246)

661.9
4.8
4.8/5.0
Q/A
1 sold/Mon
Detail: AR151W-P,1FastEthernet WAN,4FastEthernet LAN(PoE),802.11b/g/n AP,1 USB, AR0M1515BA00
Model: Huawei Router AR151W-P (02354246)
Condition: Factory Sealed New
Related: Huawei Router AR151G-HSPA+7 (02352847) Huawei Router AR157W (02354247) Huawei Router AR157VW (02354416)
Warranty:
3 Years-Warranty
100% Money-back
Free After-Sales Service
Shipping:
Air Shipping to United States
, Most Customers Receive during 5-7 Days
?
If you finish the payment today,
your order will arrive within the
estimated delivery time.
Ships to:
2.0
2-7 Days US$
Payment:
  • Pay by wire transfer.
  • Pay with your paypal.
  • Pay with your Visa credit card.
  • Pay with your Mastercard credit card.
  • Pay with your Discover Card.
  • Pay by Western Union.
More
Quantity
- +
add to Cart quick quote
add to Cart quick quote
  • Description
  • Specification
  • Reviews
  • Q&A
  • Warranty
  • Download

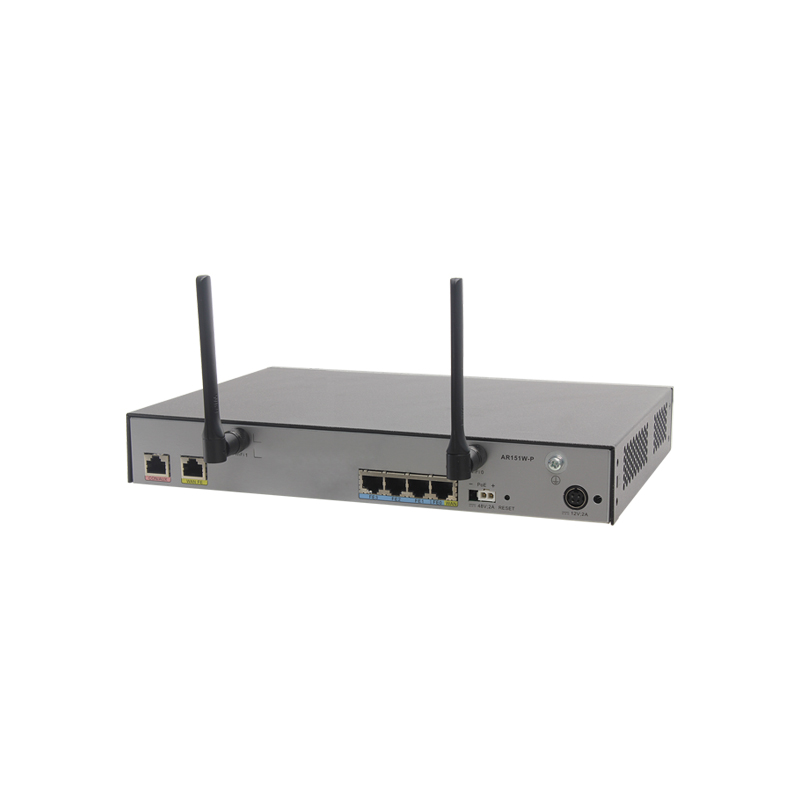

Huawei Router AR151W-P (02354246)


Huawei AR G3 AR150 Series AR151W-P fixed interface access wireless router AR0M1515BA00 provides routing and switching functionality for small business or branch offices.


Quick Specification:

Model

AR151W-P

Part Number

02354246

Memory

512 MB

Flash

512 MB

Service interfaces (standard configuration)

WAN interfaces: 1 10/100M auto-sensing Ethernet electrical interface

LAN interfaces: 4 10/100M auto-sensing Ethernet electrical interfaces

Extended slots

Not supported

Interface number

LAN interfaces: FE0-FE3

Power module type

External power adapter

Weight

2.8 kg (6.17 lb)

Dimensions (W x D x H)

300.0 mm x 216.4 mm x 44.0 mm

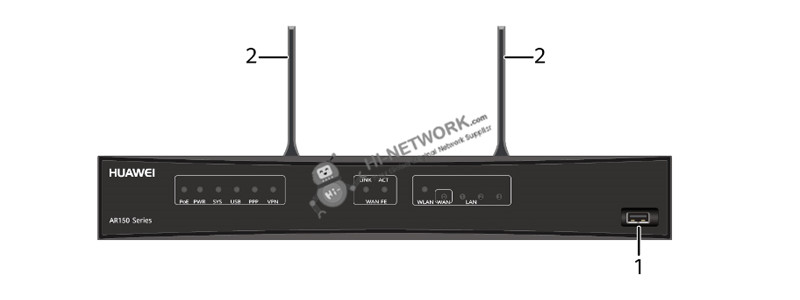

The Front Panel:

ar151w-p-front-datasheet



USB interface (host)



Two Wi-Fi antennas


The Back Panel:


ar151w-p-back-datasheet



CON/AUX interface



WAN interface: FE electrical interface



LAN interfaces: four FE electrical interfaces



PoE power jack



RESET button



Power jack



Jack for power cable locking strap



Two Wi-Fi antenna interfaces

11

Product model silkscreen

12

Ground point


Compare to Similar Items:

Model

AR151W-P

AR2220E

SIC Slots

0

4

Memory

512 MB

1 GB

Flash

512 MB

512 MB

Weight

2.8 kg (6.17 lb)

6 kg (13.2 lb)

Dimensions (W x D x H)

300.0 mm x 216.4 mm x 44.0 mm

442.0 mm x 420.0 mm x 44.5 mm

Get More Information

Do you have any question about the AR151W-P 02354246?

Contact us now via[email protected]


Specific Data Sheet:

Part Number

02354246

Model

AR151W-P

First Supported Version

V200R003C00

WAN speed with services* (IMIX)

150 Mbit/s or 100 Mbit/s

Number of recommended users

users 50

Fixed WAN Ports

1 x FE

Fixed Ethernet Switching Ports

8 x FE/4 x FE (can be configured as WAN interfaces)

Fixed Voice Ports

-

Integrated 3G

-

USB 2.0 Ports

1

Console Ports

1

Memory Size

512 MB

Flash Memory

512 MB

PoE Power

-

Maximum Power

36W/24W

Power Supply (AC)

100V to 240V

Frequency

50 Hz/60 Hz

Dimensions (H x W x D)

44.5 mm x 300 mm x 220 mm (1.7 in. x 11.8 in. x 8.66 in.)

Operating Temperature

0°C to 45°C

Relative Humidity

5% to 95% (non- condensing)

Basic Features

DHCP server/client, PPPoE server/client, PPPoA server/client, PPPoEoA server/client, NAT, and sub-interface management

Voice

RTP, SIP, SIP AG, IP PBX/TDM PBX, FXO/FXS, VoIP, BEST, DISA, and SBC (only voice models support voice features)

WLAN (AP)

AP management, WLAN QoS, WLAN security, WLAN radio management, and WLAN user management (only WLAN models support WLAN AP features)

WLAN (AC)

AP management (AC discovery/AP access/AP management), CAPWAP, WLAN user management, WLAN radio management (802.11a/b/g/n), WLAN QoS (WMM), and WLAN security (WEP/WPA/WPA2/key management)

LAN

IEEE 802.1P, IEEE 802.1Q, IEEE 802.3, VLAN management, MAC address management, MSTP, etc.

IPv4 Unicast Routing

Routing policy, static route, RIP, OSPF, IS-IS, and BGP

IPv6 Unicast Routing

Routing policy, static route, RIPng, OSPFv3, IS-ISv6, and BGP4+

Multicast

IGMP v1/v2/v3, PIM SM, PIM DM, and MSDP

VPN

IPSec VPN, GRE VPN, DSVPN, L2TP VPN, and Smart VPN

QoS

DiffServ mode, priority mapping, traffic policing (CAR), traffic shaping, congestion avoidance (based on IP precedence/DSCP WRED), congestion management (LAN interface: SP/WRR/SP + WRR WAN interface: PQ/CBWFQ), MQC (traffic classification, traffic behavior, and traffic policy), hierarchical QoS, and Smart Application Control (SAC)

Security

ACL, firewall, 802.1x authentication, AAA authentication, RADIUS authentication, HWTACACS authentication, broadcast storm suppression, ARP security, ICMP attack defense, URPF, CPCAR, blacklist, IP source tracing, and PKI

Management and Maintenance

Upgrade management, device management, web-based GUI, GTL, SNMP v1/v2c/v3, RMON, NTP, CWMP, auto-config, site deployment using USB disk, NetConf, and CLI
