New WS-C2960L-8PS-LL Cisco Catalyst 8 Ports POE Managed Switch

USD

465 ~~$1225~~ (62.0% OFF)

4.7 4.7/5.0 Reviews Q/A 0 sold/Mon
Detail:	Catalyst 2960L 8 port GigE with PoE, 2 x 1G SFP, LAN Lite
Model:	WS-C2960L-8PS-LL;WS-C2960L-8PS-AP
Condition:	New
Related:
Warranty:	3 Years-Warranty 100% Money-back Free After-Sales Service
Shipping:	Air Shipping to United States , Most Customers Receive during 5-7 Days ? If you finish the payment today, your order will arrive within the estimated delivery time.
Ships to: 10.0	2-7 Days US$
Payment:	Pay by wire transfer. Pay with your paypal. Pay with your Visa credit card. Pay with your Mastercard credit card. Pay with your Discover Card. Pay by Western Union. More

Description
Specification
Reviews
Q&A
Warranty
Download

New WS-C2960L-8PS-LL Cisco Catalyst 8 Ports POE Managed Switch

(Note: Cisco discount and Stock always changed, we will try most effort to follow it but can not ensure every web was changed accordingly. So Our Products Service will contact you after order if meet such special condition.)

WS-C2960L-8PS-LL offering 8 x GigE PoE+ ports, 2 x 1G SFP and LAN Lite, is one of the Cisco Catalyst 2960-L Series Switches. These 2960-L switches are ﬁxed-conﬁguration, Gigabit Ethernet switches that provide entry-level enterprise-class Layer 2 access for branch oﬃces, conventional workspaces, and out-of-wiring closet applications. Designed for operational simplicity to lower total cost of ownership, they enable secure and energy-efficient business operations with a range of Cisco IOS Software features.

Note: Model end of "LL" product's Asian Part Number is end of "AP." So Models have two Part Number. They are same function Products.

Quick Specification:

Product Code	WS-C2960L-8PS-LL
IOS	LAN Lite
Forwarding bandwidth	10 Gbps
Switching bandwidth	20 Gbps
10/100/1000 Ethernet Ports	8 PoE+ Ports
Available PoE Power	67W
Uplink Interfaces	2 x 1G SFP
Fanless	Y
DRAM	512 MB
Flash memory	256 MB
Dimensions (H x D x W)	1.73 x 9.45 x 10.56 in. (4.4 x 24 x 26.8 cm)
Net Weight	5.64 lb (2.56 kg)

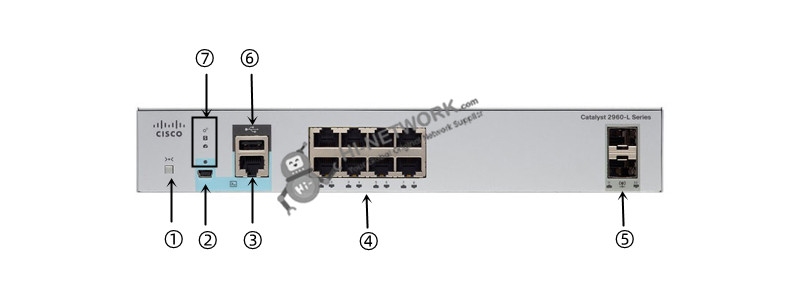

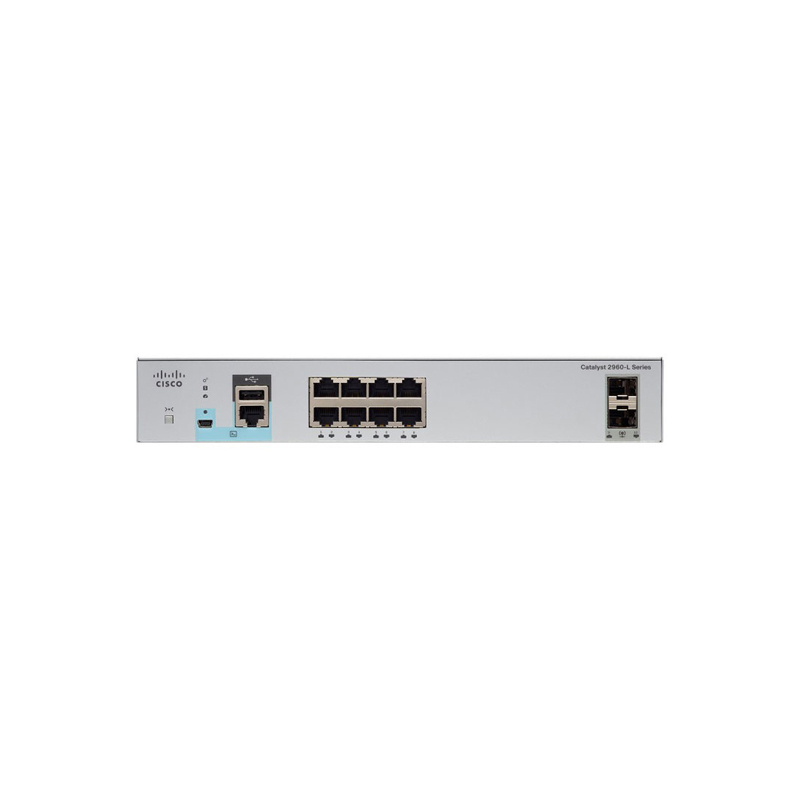

The Front Panel:

①	Mode button
②	USB mini-Type B(console)port
③	RJ-45 Console
④	8 x 10/100/1000 ports
⑤	SFP module slots
⑥	USB Type A port
⑦	System LEDs

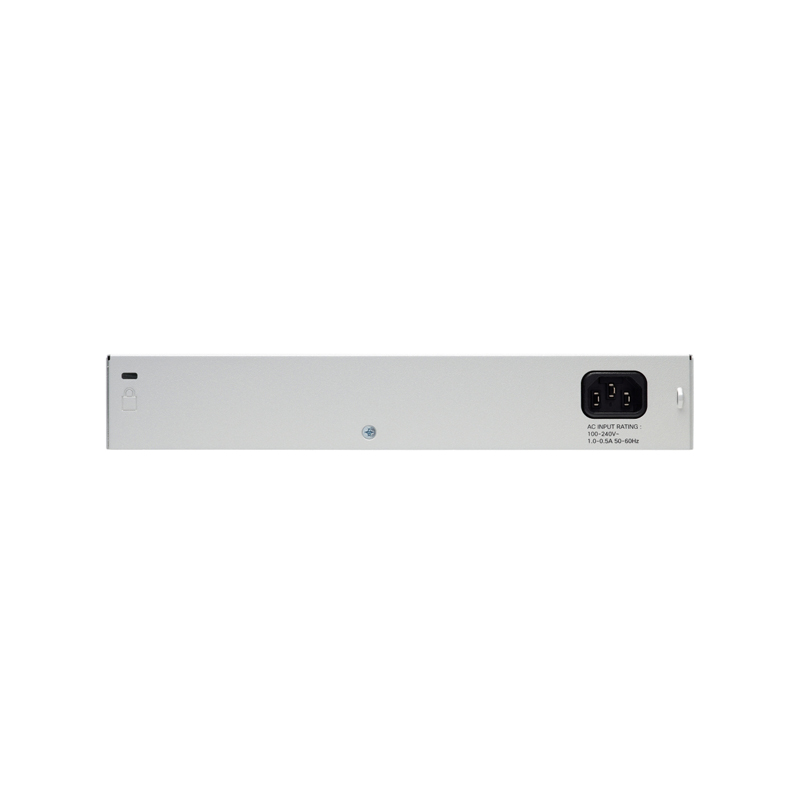

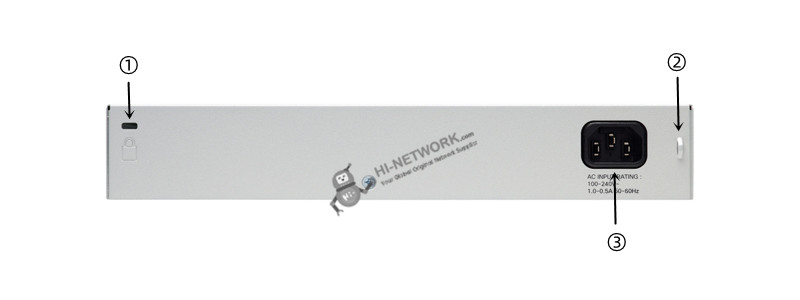

The Back Panel

①	Security Slot
②	A loop( for the optional power cord retainer)
③	An AC Power Connector

The Accessories for WS-C2960L

Recommend Elements:

Model	Description
CAB-CONSOLE-USB	Cisco CAB-CONSOLE-USB Console Cable 6 ft with USB Type A and mini-B
CAB-CONSOLE-RJ45	Cisco CAB-CONSOLE-RJ45 Console Cable 6ft with RJ45 and DB9F
CAB-ACE=	CAB-ACE= AC Power Cord (Europe), C13, CEE 7, 1.5M
CAB-ACU=	CAB-ACU= AC Power Cord (UK), C13, BS 1363, 2.5m

Compare to Similar Items:

Models	WS-C2960L-8TS-LL	WS-C2960L-8PS-LL
IOS	LAN Lite	LAN Lite
Forwarding bandwidth	10 Gbps	10 Gbps
Switching bandwidth	20 Gbps	20 Gbps
10/100/1000 Ethernet Ports	8	8 PoE+
Available PoE Power	N/A	67W
Uplink Interfaces	2 x 1G SFP	2 x 1G SFP

Get More Information

Do you have any question about the WS-C2960L-8PS-LL?

Specific Data Sheet:

10/100/1000 Ethernet Ports	8
Uplink Interfaces	2 SFP
Available PoE Power	67W
Fanless	Y
Dimensions (H x D x W)	1.73 x 8.45 x 10.56 in. (4.4 x 21.5 x 26.8 cm)
Net Weight	5.64 lb (2.56 kg)
RJ45 Ethernet	1
USB mini-B	1
USB-A port for storage and Bluetooth console	1
CPU	ARMv7 800 MHz
DRAM	512 MB
Flash memory	256 MB
Forwarding bandwidth	10 Gbps
Switching bandwidth	20 Gbps
Forwarding rate (64-byte L3 packets)	14.88 Mpps
Unicast MAC addresses	8K
Maximum active VLANs	64
VLAN IDs available	4094
Maximum STP instances	64
Maximum SPAN sessions	1
MTU-L3 packet	9198 bytes
Jumbo Ethernet frame	10,240 bytes
MTBF in hours (Data)	2,448,133
MTBF in hours (PoE)	315,044
Up to 5,000 ft	23ºF to 113ºF (–5ºC to 45ºC)
Up to 10,000 ft	23ºF to 104ºF (–5ºC to 40ºC)
Operating altitude	10,000 ft (3000m)
Operating relative humidity	5% to 90% at 40ºC
Storage temperature	–13º to 158ºF (–25º to 70ºC)
Storage altitude	15,000 ft (4500m)
Storage relative humidity	5% to 95% at 65ºC
Storage altitude	Minimum ambient temperature for cold start is 0°C (32°F)
Electrical	POE
Voltage (autoranging) 1	110 to 220V AC in
Frequency	50 to 60 Hz
Current	0.22A to 0.27A
Power rating (maximum consumption)	0.11 kVA
Power consumption (watts) 0% traffic 10% traffic 100% traffic Weighted average	19.9 22.0 22.0 21.3
Safety	UL 60950-1 Second Edition, CAN/CSA-C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS 60950-1
EMC: emissions	47CFR Part 15 (CFR 47) Class A, AS/NZS CISPR22 Class A, CISPR22 Class A, EN55022 Class A, ICES003 Class A, VCCI Class A, EN61000-3-2, EN61000-3-3, KN22 Class A, CNS13438 Class A
EMC: immunity	EN55024, CISPR24, EN300386, KN24
Environmental	Reduction of Hazardous Substances (RoHS) including Directive 2011/65/EU
Telco	Common Language Equipment Identifier (CLEI) code
U.S. government certifications	USGv6 and IPv6 Ready Logo
Ethernet interfaces	10BASE-T ports: RJ-45 connectors, 2-pair Category 3, 4, or 5 unshielded twisted-pair (UTP) cabling
	100BASE-TX ports: RJ-45 connectors, 2-pair Category 5 UTP cabling
	1000BASE-T ports: RJ-45 connectors, 4-pair Category 5 UTP cabling
	1000BASE-T SFP-based ports: RJ-45 connectors, 4-pair Category 5 UTP cabling
Indicator LEDs	Per-port status: link integrity, disabled, activity, speed, and full duplex
Indicator LEDs	System status: system, PoE, and link speed
Console cables	CAB-CONSOLE-RJ45 Console cable 6 ft. with RJ-45
Console cables	CAB-CONSOLE-USB Console cable 6 ft. with USB Type A and mini-B connectors
Power	Use the supplied AC power cord to connect the AC power connector to an AC power outlet
