Uplink Interfaces

2 SFP

Available PoE Power

120W

Fanless

Y

Dimensions (H x D x W)

1.73 x 9.45 x 10.56 in. (4.4 x 24 x 26.8 cm)

Net Weight

5.73 lb (2.6 kg)

RJ45 Ethernet

1

USB mini-B

1

USB-A port for storage and Bluetooth console

1

CPU

ARMv7 800 MHz

DRAM

512 MB

Flash memory

256 MB

Forwarding bandwidth

18 Gbps

Switching bandwidth

36 Gbps

Forwarding rate (64-byte L3 packets)

26.78 Mpps

Unicast MAC addresses

8K

Maximum active VLANs

64

VLAN IDs available

4094

Maximum STP instances

64

Maximum SPAN sessions

1

MTU-L3 packet

9198 bytes

Jumbo Ethernet frame

10,240 bytes

MTBF in hours (Data)

2,416,689

MTBF in hours (PoE)

313,496

Up to 5,000 ft

23ºF to 113ºF (–5ºC to 45ºC)

Up to 10,000 ft

23ºF to 104ºF (–5ºC to 40ºC)

Operating altitude

10,000 ft (3000m)

Operating relative humidity

5% to 90% at 40ºC

Storage temperature

–13º to 158ºF (–25º to 70ºC)

Storage altitude

15,000 ft (4500m)

Storage relative humidity

5% to 95% at 65ºC

Storage altitude

Minimum ambient temperature for cold start is 0°C (32°F)

Electrical

PoE

Voltage (autoranging) 1

110 to 220V AC in

Frequency

50 to 60 Hz

Current

0.24A to 0.28A

Power rating (maximum consumption)

0.19 kVA

Power consumption (watts)

0% traffic

10% traffic

100% traffic

Weighted average

21.9

27.1

27.1

25.4

Safety

UL 60950-1 Second Edition, CAN/CSA-C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS 60950-1

EMC: emissions

47CFR Part 15 (CFR 47) Class A, AS/NZS CISPR22 Class A, CISPR22 Class A, EN55022 Class A, ICES003 Class A, VCCI Class A, EN61000-3-2, EN61000-3-3, KN22 Class A, CNS13438 Class A

EMC: immunity

EN55024, CISPR24, EN300386, KN24

Environmental

Reduction of Hazardous Substances (RoHS) including Directive 2011/65/EU

Telco

Common Language Equipment Identifier (CLEI) code

U.S. government certifications

USGv6 and IPv6 Ready Logo

Ethernet interfaces

10BASE-T ports: RJ-45 connectors, 2-pair Category 3, 4, or 5 unshielded twisted-pair (UTP) cabling

100BASE-TX ports: RJ-45 connectors, 2-pair Category 5 UTP cabling

1000BASE-T ports: RJ-45 connectors, 4-pair Category 5 UTP cabling

1000BASE-T SFP-based ports: RJ-45 connectors, 4-pair Category 5 UTP cabling

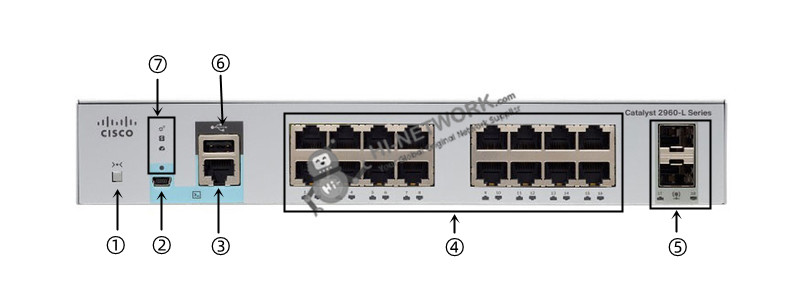

Indicator LEDs

Per-port status: link integrity, disabled, activity, speed, and full duplex

System status: system, PoE, and link speed

Console cables

CAB-CONSOLE-RJ45 Console cable 6 ft. with RJ-45

CAB-CONSOLE-USB Console cable 6 ft. with USB Type A and mini-B connectors

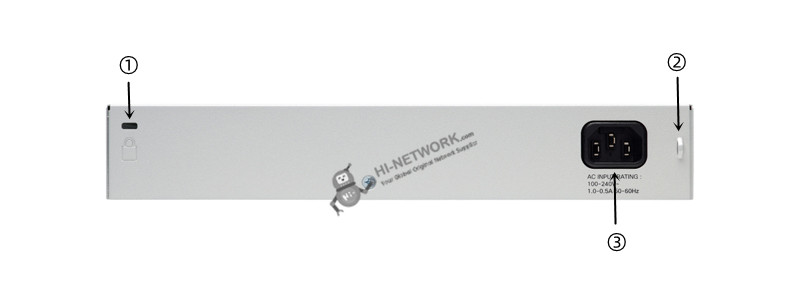

Power

Use the supplied AC power cord to connect the AC power connector to an AC power outlet
