Enclosure type

Rack-mountable – 1U

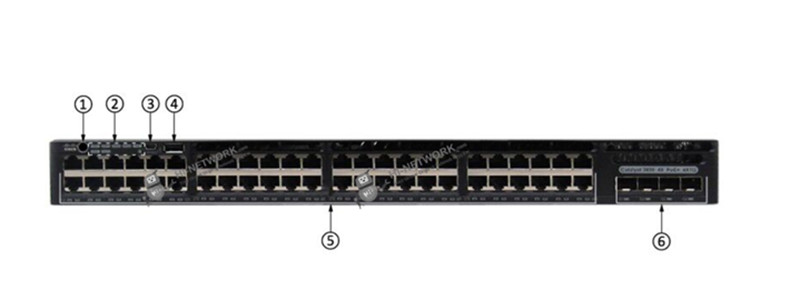

Ports

48 x 10/100/1000 (POE+) + 2 x 10G SFP

Network management Interface

Ethernet management port: RJ-45 connectors, 4-pair Cat-5 UTP cabling
Management console port: RJ-45-to-DB9 cable for PC connections

Available PoE Power

775W

Switching Capacity

176 Gbps

Maximum stacking number

9

Stack Bandwidth

160 Gbps

Forwarding Performance

104.16Mpps

FNF entries

Disabled (IP base license required)

Maximum VLANs IDs

255

Maximum VLANs IDs

32K

CPU

Multicore CPU

RAM

4 G

Flash Memory

2 G

Number of AP per switch/stack

50

Number of wireless clients per switch/stack

1000

Total number of WLANs per switch

64

Wireless bandwidth per switch

up to 40 Gbps

Supported Aironet AP series

3700, 3600, 3500, 2600, 1600, 1260, 1140, 1040

Console ports

USB (Type-B), Ethernet (RJ-45)

Expansion Slot(s)

power redundant slot

Accessory & Rack Moubt Kits

(1)ACC-KIT-T1: Accessory kit
(2)RACK-KIT-T1: Rack mount kit
(3)4PT-KIT-T1:Extension rails and brackets for four-point mounting

Stacking module & cable

(1)C3650-STACK-KIT: Stack Module
(2)STACK-T2-50CM: StackWise-160 stacking cable with a 0.5 m length
(3)STACK-T2-1M: StackWise-160 stacking cable with a 1.0 m length
(4)STACK-T2-3M: StackWise-160 stacking cable with a 3.0 m length

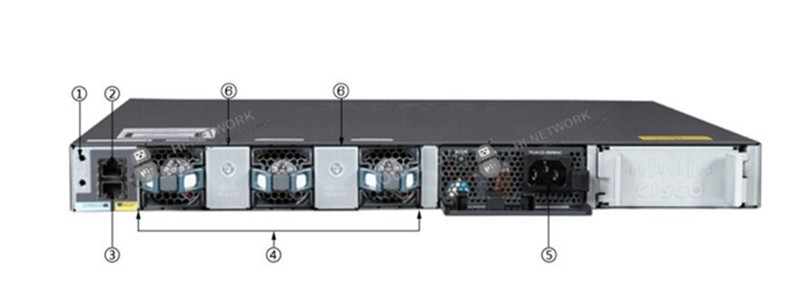

Power supply

PWR-C2-1025WAC

Power Device

Power supply – redundant – plug-in module

Power Redundancy

optional

Voltage range (Auto)

100V-240V

Power Consumption of standalone (in Watts)

109.4 (max)

Width

17.5 Inches (44.5 cm)

Depth

19.125 Inches (48.6 cm)

Height

1.73 Inches (4.4 cm)

Shipping Weight

17.49 Kg

Rack Mounting Kit

optional

MTBF in hours

383,760

Compliant Standards

●IEEE 802.1D Spanning Tree Protoco

● IEEE 802.1p CoS Prioritization

● IEEE 802.1Q VLAN

● IEEE 802.1s

● IEEE 802.1w

● IEEE 802.1X

● IEEE 802.1X-Rev

●IEEE 802.11

● IEEE 802.1ab (LLDP)

● IEEE 802.3ad

● IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports

● IEEE 802.3 10BASE-T

● IEEE 802.3u 100BASE-TX

● IEEE 802.3ab 1000BASE-T

● IEEE 802.3z 1000BASE-X

● RMON I and II standards

● SNMP v1, v2c, and v3

System software

IOS LAN Base (Upgradable)

EnergyWise license

ENERGY-MGMT, ENERGY-MGT-100-K9

Access Point Licenses

●L-LIC-CT3650-UPG: Primary upgrade license SKU for Cisco 3650 wireless controller (e-delivery) ●L-LIC-CTIOS-1A: 1 access point adder license for Cisco IOS Software based wireless controller (e-delivery)

●L-LIC-CTIOS-1A: 1 access point adder license for Cisco IOS Software based wireless controller (e-delivery)

●LIC-CTIOS-1A: 1 access point adder license for the Cisco IOS Software based wireless controller (paper license)

Features

●EEM ● RPS Support ● IP service-level agreements (SLAs) ● Advanced IP unicast routing protocols

● Jumbo Frames ● VLANS ●Voice Vlan ●VTPv2 ●CDPv2 ●LLDP

● 802.3ad LACP and PAgP ● PVST/PVST+ ● 802.1W/802.1S ●Port Fast/Uplink Fast ●Dynamic Trunking Protocol (DTP) ● port CoS Trust and Override

● Trusted Boundary ● ACL Classification ●ingress Policing ● Auto QoS ● Per VLAN policies ● 802.1p queues

● Scheduling ● Priority Queuing ● Configure CoS Priority Queues ●Configure CoS Priority Queues ● Configure Queue Weights ● Configure Buffers and Thresholds ●Class & Policy Maps

● Modify CoS and DSCP Mapping ● Weighted Tail Drop ● IGMPv1,v2,v3 and MLDv1, v2 ● DHCP server

● DSCP transparency ● HSRP, VRRP, BLGP ● RIPv1, v2 EIGRP, PIM OSPF, OSPFv3, EIGRPv6, BGPv4, ISISv4

● VRF-lite ● PIM-SM/DM, PIM sparse-dense mode, SSM ● Flexible Netflow

Advanced Network security

●Port security ● DHCP snooping ●Dynamic ARP inspection (DAI) ● IP source guard ●The Unicast Reverse Path Forwarding (uRPF)

● Bidirectional data support on a SPAN ● User authentication

● Private VLAN ●Router and VLAN ACLs ● complete identity and security

● Multidomain authentication ● MAC address notification

● IGMP filtering ● Cisco security VLAN ACL

● Secure Shell (SSH) Protocol, Kerberos, and Simple Network Management Protocol Version 3 (SNMPv3)

● Port-based ACLs ● TrustSec SXP ● IEEE 802.1ae

● TACACS+ and RADIUS authentication ● Cisco standard and extended IP security router ACLs

● Bridge protocol data unit (BPDU) Guard

● Spanning Tree Root Guard (STRG) ● Wireless end-to-end security

Technical Support and Services

● Cisco SMARTnet Service ● Cisco Smart Foundation Service

● Cisco SP Base Service ● Cisco Focused Technical Support Services

Operating temperature up to 5000 ft (1500 m)

23ºF to 113ºF (-5ºC to +45ºC)

Operating temperature up to 10,000 ft (3000 m)

23ºF to 104ºF (-5ºC to +40ºC)

Short-term exception at sealevel with single fan failure

23ºF to 113ºF (-5ºC to +45ºC)

Short-term exception up to 5000 feet (1500 m)

23ºF to 122ºF (-5ºC to 50ºC)

Short-term exception up to 10,000 feet (3000 m)

23ºF to 113ºF (-5ºC to 45ºC)

Operating temperature up to 6000 ft (1800 m)

23ºF to 113ºF (-5ºC to +45ºC)

Operating temperature up to 10,000 ft (3000 m)

23ºF to 104ºF (-5ºC to +40ºC)

Operating temperature up to 13,000 ft (4000m)

23ºF to 95ºF (-5ºC to 35ºC)

Short-term exception up to 6,000 feet (1800 m)

23ºF to 131ºF (-5ºC to +55ºC

Short-term exception up to 10,000 feet (3000 m)

23ºF to 122ºF (-5ºC to +50ºC

Short-term exception up to 13,000 feet (4000 m)

23ºF to 113ºF (-5ºC to +45ºC)

Short-term exception at sealevel with single fan failure

23ºF to 113ºF (-5ºC to +45º)

Storage environment

-40ºF to 160ºF (-40ºC to 70ºC)

Operating altitude

Up to 16,400 Feet (Up to 5000m)

Storage altitude

Up to 16,400 Feet (Up to 5000m)

Operating relative humidity

5% to 96% noncondensing

Storage relative humidity 5

5% to 96% noncondensing
