GPBD HUAWEI GPON OLT MA5608T MA5680T MA5683T MA5603T Interface Board 8 PON Ports Card With Class C+/C++/ B+ SFP Module

226.63
/5.0
Q/A
20
Detail: HUAWEI OLT GPBD Board MA5608T MA5683T MA5680T
Model: GPBD
Condition:
Related:
Warranty:
1 YEAR WARRANTY
100% Money-back
Free After-Sales Service
Shipping:
Air Shipping to United States
, Most Customers Receive during 5-7 Days
?
If you finish the payment today,
your order will arrive within the
estimated delivery time.
Ships to:
4
2-7 Days US$
Payment:
  • Pay by wire transfer.
  • Pay with your paypal.
  • Pay with your Visa credit card.
  • Pay with your Mastercard credit card.
  • Pay with your Discover Card.
  • Pay by Western Union.
More
Quantity
- +
add to Cart quick quote
Follow us:
Tags
add to Cart quick quote
  • Description
  • Specification
  • Reviews
  • Q&A
  • Warranty
  • Download

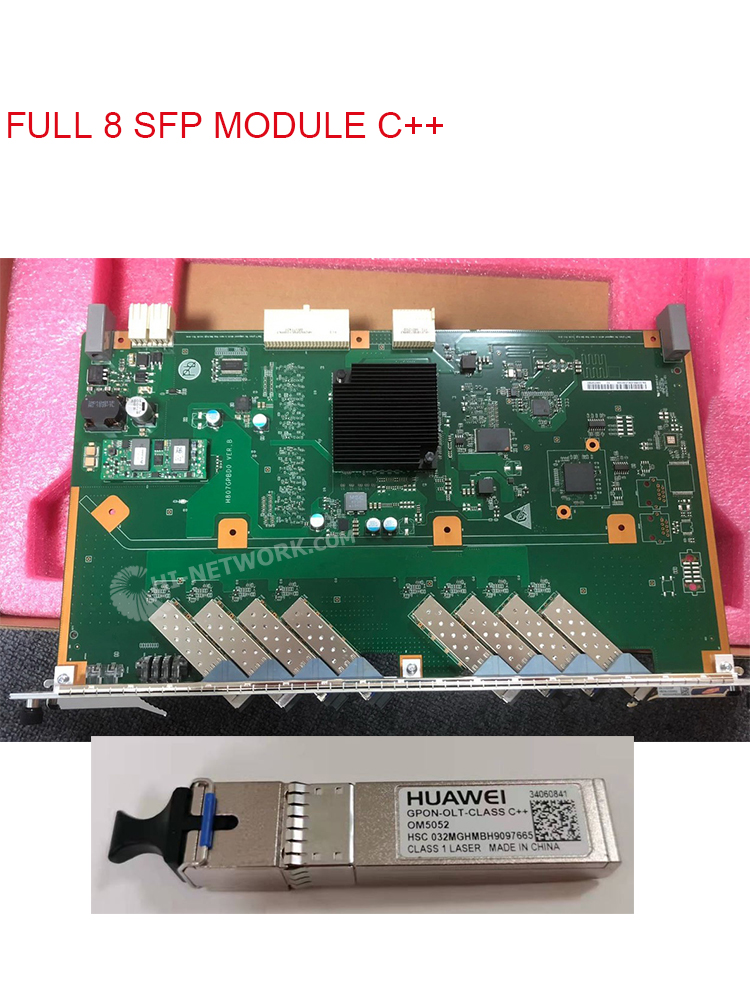

Original 8 PON Ports GPBD Interface Board Mainboard

Model: H802GPBD, H805GPBD, H806GPBD, H807GPBD

with FULL SFP Modules Class C++ C+ B+

Compatible for HUAWEI GPON OLT MA5680T MA5683T MA5603T MA5608T


Condition: REMOVE FROM MACHINE


Specification and GPBD Features:

 ●The control module completes the function of loading, running control and management of the board.

 ●The switch module implements aggregation of eight GPON port signals.

 ●The interface module implements the conversion between GPON optical signals and Ethernet packets.

 ●The power module provides the working power for each function module in the board.

 ●The clock module provides the working clock for each function module in the board.


Support split ratio 1:128

Transmit Speed: 2.49Gbit/s, Receive Speed: 1.24Gbit/s

Interface Type: SC/PC

Max Transmit Distance: 20KM

Transmit Wavelength: 1490nm, Receive Wavelength: 1310nm

Standards Compliance: ITU-T G.984.1, ITU-T G.984.2, ITU-T G.984.3, ITU-T G.984.4

C+ SFP Module Optical Power: 3 dBm~7 dBm, Receiver Sensitivity: -32 dBm


If you need other board model, please feel free to contact us.


GPBD EPBD EPSD XELDXEHD XEUD GPFD GPBD EPBD

GPBH GPHF EPHF GPUF GPBC EPBD EPBC EPBH GPBD

XELD XEHD EPBD EPSD GPFD GPBD EPBD GPBH GPHF

EPHF GPUF GPFD GPHF GPUF EPFD

GPLF GPSF GPFD GPHF GPLF GPSF GPUF GPHF GPUF

GPLF GPSF CGHF GPHF GPSF GPLF GPUF GPFD CGID

Buy Huawei, Cisco, Zte, Hpe, Dell, Fortinet Network Equipment Online In China At Low Price - Hi-Network.com


Huawei 8-GPON Port Interface Card with B+ SFP module

Apply to Huawei MA5683T, MA5680T, MA5608T OLT system

Available at 4 versions: H802GPBD, H805GPBD, H806GPBD, H807GPBD

Support split ratio 1:64

Transmit Speed: 2.49Gbit/s, Receive Speed: 1.24Gbit/s

Interface Type: SC/PC

Max Transmit Distance: 20KM

Transmit Wavelength: 1490nm, Receive Wavelength: 1310nm
