Huawei Switch S5720-32P-EI-AC (02350BDY)

USD

4.8 4.8/5.0 Reviews Q/A 16 sold/Mon
Detail:	S5720-32P-EI-AC(24 Ethernet 10/100/1000 ports,8 Gig SFP,AC 110/220V,front access)
Model:	S5720-32P-EI-AC (02350BDY)
Condition:	Factory Sealed New
Related:	Huawei Switch S5720-32X-EI-AC (02359586) Huawei Switch S5720-32X-EI-DC (02350NHC)
Warranty:	3 Years-Warranty 100% Money-back Free After-Sales Service
Shipping:	Air Shipping to United States , Most Customers Receive during 5-7 Days ? If you finish the payment today, your order will arrive within the estimated delivery time.
Ships to: 7.7	2-7 Days US$
Payment:	Pay by wire transfer. Pay with your paypal. Pay with your Visa credit card. Pay with your Mastercard credit card. Pay with your Discover Card. Pay by Western Union. More

Description
Specification
Reviews
Q&A
Warranty
Download

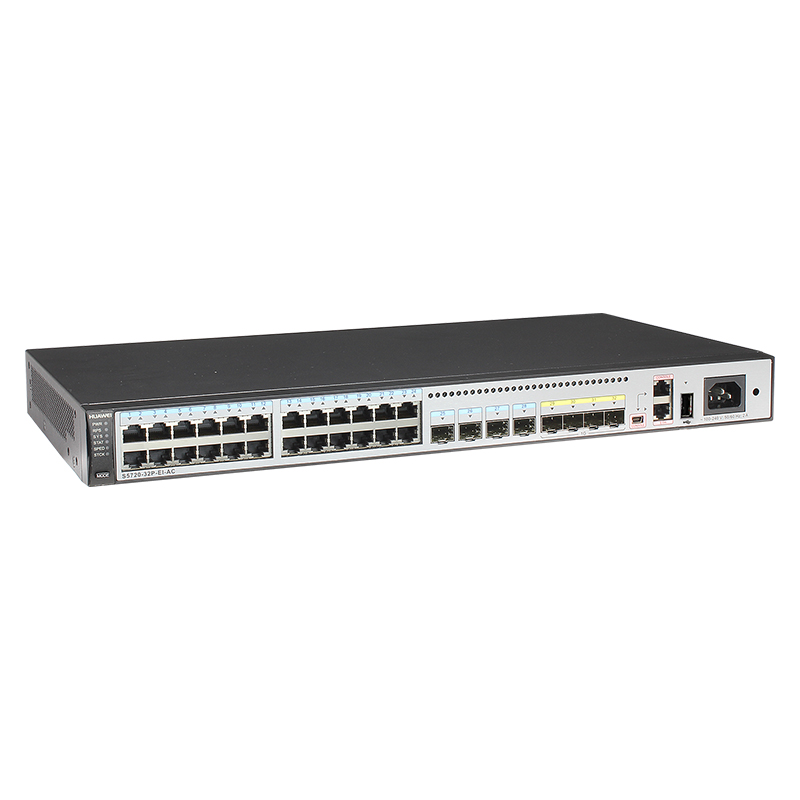

Huawei Switch S5720-32P-EI-AC (02350BDY)

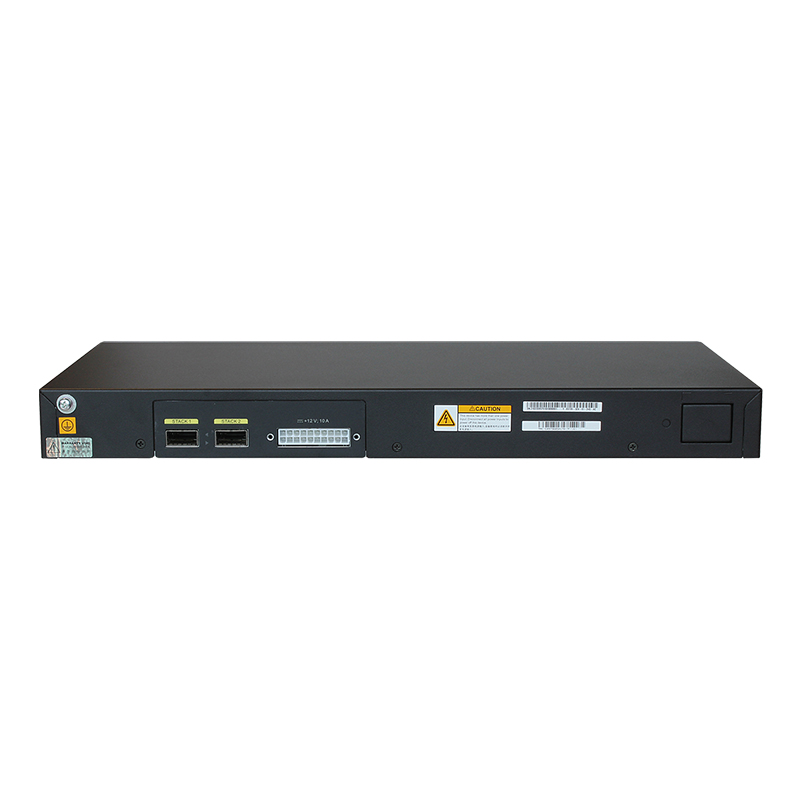

Huawei S5720-32P-EI-AC supports twenty-four Ethernet 10/100/1000 ports and eight Gig SFP. There are two QSFP+ stack optical ports on the back panel.

Quick Specification

Model	S5720-32P-EI-AC
Part Number	02350BDY
Memory (RAM)	2 GB
Flash	512 MB in total. To view the available flash memory size, run the display version command.
PoE	Not supported
Weight with packaging [kg(lb)]	4.5 kg (9.92 lb)
Dimensions (H x W x D)	Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 224.9 mm (1.72 in. x 17.4 in. x 8.85 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 237.3 mm (1.72 in. x 17.4 in. x 9.34 in.)

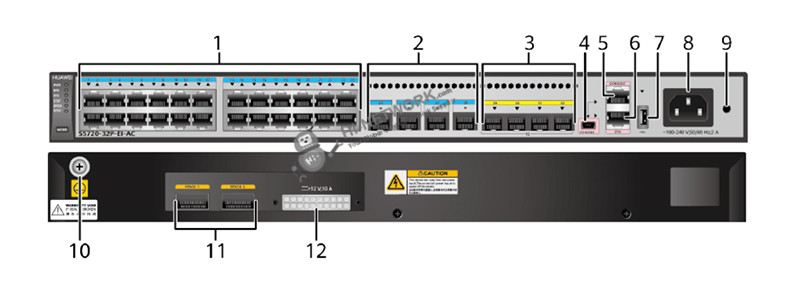

Appearance:

s5700-32p-ei-ac-datasheet

①	Twenty-four 10/100/1000BASE-T ports
②	Four 100/1000BASE-X ports
③	Four 1000BASE-X ports
④	One mini USB port
⑤	One console port
⑥	One ETH management port
⑦	One USB port
⑧	AC socket
⑨	Jack for AC power cable locking strap
⑩	Ground screw
⑪	Two QSFP+ stack optical ports
⑫	RPS socket

The Accessories for S5720-32P-EI-AC

Recommended Elements:

Model	Description
GE-SFP Optical Transceiver
SFP-1000BaseT	Electrical Transceiver, SFP, GE, Electrical Interface Module(100m,RJ45)
eSFP-GE-SX-MM850	Optical Transceiver, eSFP, GE, Multi-mode Module(850nm,0.55km,LC)
SFP-GE-LX-SM1310	Optical Transceiver, eSFP, GE, Single-mode Module(1310nm,10km,LC)
S-SFP-GE-LH40-SM1310	Optical Transceiver, eSFP, GE, Single-mode Module(1310nm,40km,LC)
S-SFP-GE-LH40-SM1550	Optical Transceiver, eSFP, GE, Single-mode Module(1550nm,40km,LC)
40GE optical transceiver
QSFP-40G-iSR4	40GBase-iSR4 Optical Transceiver, QSFP+, 40G, Multi-mode (850nm,0.15km,MPO) (Connect to four SFP+ Optical Transceiver)

Compare to Similar Items:

Models	S5720-36PC-EI-AC	S5720-32P-EI-AC
Downlink Ports	28 × Ethernet 10/100/1000 ports 4 of which are dual-purpose 10/100/1000 or SFP	24 x 10/100/1,000 Base-T Ethernet ports
Uplink Ports	4 × Gig SFP	4 x 100/1,000 Base-X SFP ports, and 4 x 1,000 Base-X SFP ports
Power Supply	AC Power Supply	AC Power Supply
Interface Slots	1	None

Get more information

Do you have any question about the S5720-32P-EI-AC 02350BDY?

Specific Data Sheet:

Part Number	02350BDY
Model	S5720-32P-EI-AC
Memory (RAM)	2 GB
Flash	512 MB in total. To view the available flash memory size, run the display version command.
Mean time between failures (MTBF)	80.32 years
Mean time to repair (MTTR)	2
Availability	> 0.99999
Service port surge protection	Common mode: ±6 kV
Power supply surge protection	±6 kV in differential mode, ±6 kV in common mode
Dimensions (H x W x D)	Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 224.9 mm (1.72 in. x 17.4 in. x 8.85 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 237.3 mm (1.72 in. x 17.4 in. x 9.34 in.)
Weight (with packaging)	4.5 kg (9.92 lb)
Stack ports	Two fixed QSFP+ stack ports on the rear card
RTC	Supported
RPS	Supported
PoE	Not supported
Rated voltage range	100 V AC to 240 V AC, 50/60 Hz
Maximum voltage range	90 V AC to 264 V AC, 47 Hz to 63 Hz
Maximum power consumption (100% throughput, full speed of fans)	50.7 W
Typical power consumption (30% of traffic load) · Tested according to ATIS standard · EEE enabled No PoE power consumption	39.75 W
Operating temperature	0°C to 45°C (32°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.)
Storage temperature	-40°C to +70°C (-40°F to +158°F)
Noise under normal temperature (27°C, sound power)	< 49.3 dB(A)
Relative humidity	5% to 95%, noncondensing
Operating altitude	0-5000 m (0-16404 ft.)
Certification	EMC certification Safety certification Manufacturing certification
