Huawei Switch S3700-52P-PWR-EI (02352373)


Huawei S3700 Enterprise Switches are made for resilient 100 Mbit/s Fast Ethernet L3 switching in large data centers, or as core switches in small to medium-sized enterprise campus IT environments. S3700-52P-PWR-EI is an Enhanced model of S3700 series, offering 48 Ethernet 10/100 PoE+ ports.


Quick Specification

Model

S3700-52P-PWR-EI

Part Number

02352373

Downlink Ports

48 x Ethernet 10/100 PoE+ ports

Uplink Ports

2 x 1000BASE-X

2 x 100/1000BASE-X

Forwarding Performance

13.2 Mpps

Switching Capacity

64 Gbit/s

Stacking

Supported

Dimensions (W x D x H)

44.2 cm x 42 cm x 4.36 cm

Weight (Kg)

7.2 Kg

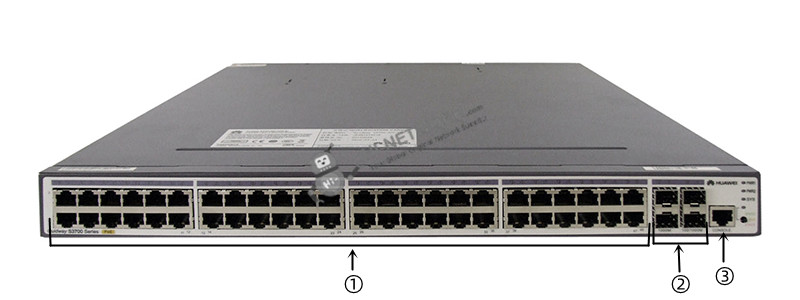

The Front Panel:

s3700-52p-pwr-ei-frontdatasheet



48 x Ethernet 10/100 PoE+ ports



4 x Gig SFP



One Console interface (RJ45)

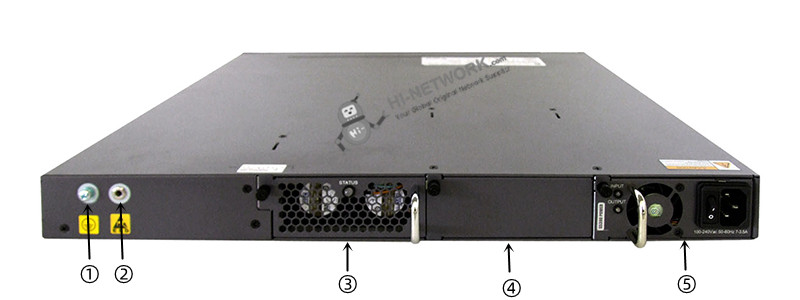

The Back Panel:

s3700-52p-pwr-ei-backdatasheet

Ground screw

ESD jack

Fan module

Power supply unit slot 2

Power supply unit slot 1


The Accessories for S3700-52P-PWR-EI

Recommended Optical Transceivers:


Models

Description

FE-SFP Optical Transceiver

SFP-FE-SX-MM1310

Optical Transceiver,SFP,100M/155M,Multi-mode Module(1310nm,2km,LC)

eSFP-FE-LX-SM1310

Optical Transceiver,eSFP,100M/155M,Single-mode Module(1310nm,15km,LC)

S-SFP-FE-LH40-SM1310

Optical Transceiver, eSFP, FE, Single-mode Module(1310nm,40km,LC)

GE-SFP Optical Transceiver

eSFP-GE-SX-MM850

Optical Transceiver, eSFP, GE, Multi-mode Module(850nm,0.55km,LC)

SFP-GE-LX-SM1310

Optical Transceiver, eSFP, GE, Single-mode Module(1310nm,10km,LC)

S-SFP-GE-LH40-SM1310

Optical Transceiver, eSFP, GE, Single-mode Module(1310nm,40km,LC)

S-SFP-GE-LH40-SM1550

Optical Transceiver, eSFP, GE, Single-mode Module(1550nm,40km,LC)


Compare To Similar Items:


Models

S3700-52P-PWR-SI

S3700-52P-PWR-EI

Downlink Ports

Forty-eight 10/100 Base-TX ports

Forty-eight 10/100 Base-TX ports

Uplink Ports

two 100/1,000 Base-X SFP ports

two 1,000 Base-X SFP ports

two 100/1,000 Base-X SFP ports

two 1,000 Base-X SFP ports

PoE Support

Supported

Supported

Model Version

Standard

Enhanced


Get more information

Do you have any question about the S3700-52P-PWR-EI 02352373?

Contact us now via[email protected]






Specific Data Sheet:

Part Number

S3700-52P-PWR-EI

Model

02352373

Form Factor

Fixed, Stackable

Switch Port

48 FE PoE, 2 GE Combo and 2 GE SFP ports

Power Over Ethernet (PoE)

PoE Switch

Forwarding performance

13.2 Mpps

MAC address table

IEEE 802.1d compliance

16 K MAC address entries

MAC address learning and aging

Static, dynamic, and blackhole MAC address entries

Packet filtering based on source MAC addresses

VLAN

4K VLANs

Reliability

RRPP ring topology and RRPP multi-instance

Smart Link tree topology and Smart Link multi-instance, providing the millisecond-level protection switchover

SEP

STP, RSTP, and MSTP

BPDU protection, root protection, and loop protection

IP routing

Static routing, RIPv1, RIPv2, and ECMP OSPF, IS-IS, and BGP

IPv6 features

Neighbor Discovery (ND)

Path MTU (PMTU)

IPv6 ping, IPv6 tracert, and IPv6 Telnet

ACLs based on the source IPv6 address, destination IPv6 address, Layer 4 ports, or protocol type

MLD v1/v2 snooping

6 to 4 tunnel, ISATAP tunnel, and manually configured tunnel

Multicast

IGMP v1/v2/v3 snooping and IGMP fast leave

Multicast forwarding in a VLAN and multicast replication between VLANs

Multicast load balancing among member ports of a trunk

Controllable multicast

Port-based multicast traffic statistics

QoS/ACL

Rate limiting on packets sent and received by an interface

Packet redirection

Port-based traffic policing and two-rate three-color CAR

Eight queues on each port

WRR, DRR, SP, WRR+SP, and DRR+SP queue scheduling algorithms

Re-marking of the 802.1p priority and DSCP priority

Packet filtering at Layers 2 through 4, filtering out invalid frames based on the source MAC address, destination

MAC address, source IP address, destination IP address, port number, protocol type, and VLAN ID

Rate limiting in each queue and traffic shaping on ports

Security

User privilege management and password protection

DoS attack defense, ARP attack defense, and ICMP attack defense

Binding of the IP address, MAC address, interface, and VLAN

Port isolation, port security, and sticky MAC

Blackhole MAC address entries

Limit on the number of learned MAC addresses

802.1x authentication and limit on the number of users on an interface

AAA authentication, RADIUS authentication, HWTACACS authentication, and NAC

SSH v2.0

Hypertext Transfer Protocol Secure (HTTPS)

CPU defense

Blacklist and whitelist

Power Supply Specifications

Power Device

Power supply - PoE( 740W )

Voltage Required

AC 120/240 V ( 50/60 Hz )

Dimensions / Weight / Miscellaneous

Width

44.2cm

Depth

43.6cm

Height

22.0cm

Weight

4.3kg

System Software

Software Version

Enhanced Version

Manufacturer Warranty

Service & Support

1 year warranty
