Huawei Switch S2720-28TP-EI (98010680)

559
4.9
4.9/5.0
Q/A
1 sold/Mon
Detail: S2720-28TP-EI(16 Ethernet 10/100 ports,8 Ethernet 10/100/1000,2 Gig SFP and 2 dual-purpose 10/100/1000 or SFP,AC 110/220V)
Model: S2720-28TP-EI (98010680)
Condition: Factory Sealed New
Related: Huawei Switch S2720-12TP-EI (98010731) Huawei Switch S2720-52TP-EI (98010673) Huawei Switch S2720-28TP-PWR-EI (98010678) Huawei Switch S2720-28TP-PWR-EI-L (98010677)
Warranty:
3 Years-Warranty
100% Money-back
Free After-Sales Service
Shipping:
Air Shipping to United States
, Most Customers Receive during 5-7 Days
?
If you finish the payment today,
your order will arrive within the
estimated delivery time.
Ships to:
9.0
2-7 Days US$
Payment:
  • Pay by wire transfer.
  • Pay with your paypal.
  • Pay with your Visa credit card.
  • Pay with your Mastercard credit card.
  • Pay with your Discover Card.
  • Pay by Western Union.
More
Quantity
- +
add to Cart quick quote
add to Cart quick quote
  • Description
  • Specification
  • Reviews
  • Q&A
  • Warranty
  • Download

Huawei Switch S2720-28TP-EI (98010680)


The S2720-EI is a next-generation access switch that provides flexible 100M, GE access ports and GE uplink ports. Building on next-generation, high-performance hardware and the Huawei Versatile Routing Platform (VRP), the S2720-EI supports intelligent Stack (iStack), flexible Ethernet networking, and diversified security control. It provides customers with a green, easy-to-manage, easy-to-expand, and cost-effective 100M to the desktop solution.


Quick Specification:

Model

S2720-28TP -EI

Part Number

98010680

Memory (RAM)

512 MB

Flash

512 MB in total. To view the available flash memory size, run the display version command.

PoE

Not supported

Dimensions (H x W x D)

Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 224.8 mm (1.72 in. x 17.4 in. x 8.85 in.)

Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 233.8 mm (1.72 in. x 17.4 in. x 9.21 in.)

Weight (including package)

4 kg (8.82 lb)

The Front Panel:

s2720-28tp-ei-front-datasheet



Sixteen 10/100BASE-TX ports



Eight 10/100/1000BASE-T ports



Two combo ports (10/100/1000BASE-T + 100/1000BASE-X)



Two 1000BASE-X ports



PNP button



One console port

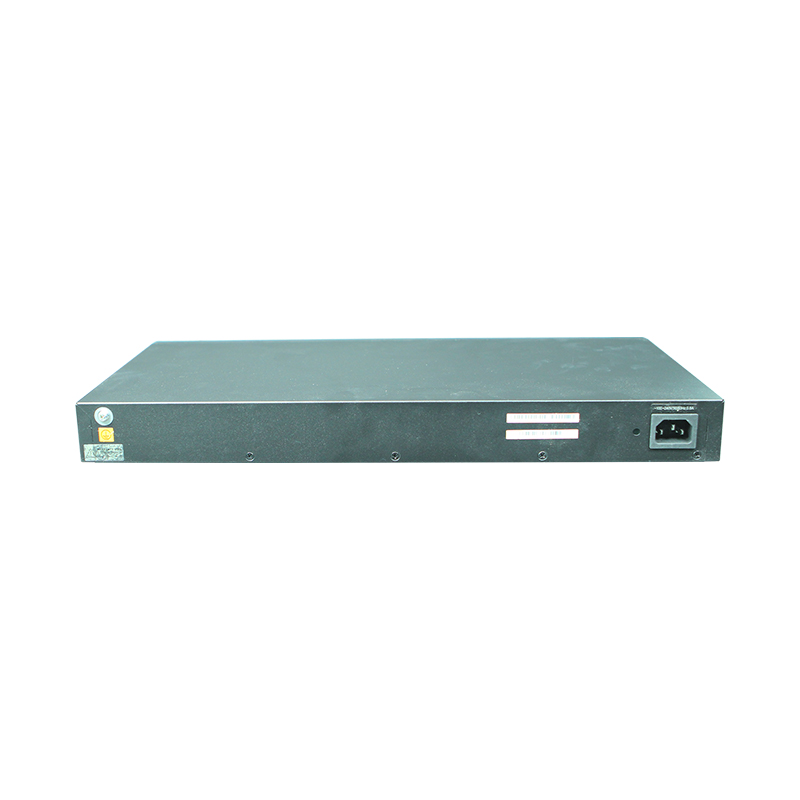

The Back Panel:

s2720-28tp-ei-back-datasheet


Ground screw

Jack reserved for AC power cable locking strap

AC socket



Compare to Similar Items:

Models

S2720-12TP-EI

S2720-12TP-PWR-EI

S2720-28TP-PWR-EI-L

S2720-28TP-EI

S2720-28TP-PWR-EI

S2720-52TP-EI

S2720-52TP-PWR-EI

Switching Capacity

68 Gbit/s

68 Gbit/s

336 Gbit/s

Forwarding Performance

12.6 Mpps

20.4 Mpps

34.8 Mpps

Fixed Ports

Downlink: 4 x 10/100 Base-TX Ethernet ports; 4 x GE ports

Uplink: 4 x GE ports

Downlink: 16 x 10/100 Base-TX Ethernet ports; 8 x GE ports

Uplink: 4 x GE ports

Downlink: 32 x 10/100 Base-TX Ethernet ports; 16 x GE ports

Uplink: 4 x GE ports

MAC Address Table

16K MAC address entries

Configurable aging time of MAC addresses

Blackhole MAC address entries

Limit on the number of MAC addresses   learned on a port

VLAN Features

4K VLANs

VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and interfaces

Port-based QinQ

IP Routing

Static routing

RIP, RIPng, and OSPF

Interoperability

VLAN-based Spanning Tree (VBST) (interoperating with PVST, PVST+, and RPVST)

Link-type Negotiation Protocol (LNP) (similar to DTP)

VLAN Central Management Protocol (VCMP) (similar to VTP)

Get More Information

Do you have any question about the S2720-28TP-EI 98010680?

Contact us now via[email protected]

Specific Data Sheet:


Part Number

98010680

Model

S2720-28TP-EI

Memory (RAM)

512 MB

Flash

512 MB in total. To view the available flash memory size, run the display version command.

Mean time between failures (MTBF)

49 years

Mean time to repair (MTTR)

2 hours

Availability

> 0.99999

Service port surge protection

Common mode: ±7 kV

Power supply surge protection

±6 kV in differential mode, ± 6 kV in common mode

Dimensions (H x W x D)

Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 224.8 mm (1.72 in. x 17.4 in. x 8.85 in.)

Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 233.8 mm (1.72 in. x 17.4 in. x 9.21 in.)

Weight (including package)

4 kg (8.82 lb)

Stack ports

Two 1000BASE-X ports

RTC

Not supported

RPS

Not supported

PoE

Not supported

Rated voltage range

100 V AC to 240 V AC, 50/60 Hz

Maximum voltage range

90 V AC to 264 V AC, 47 Hz to 63 Hz

Maximum power consumption (100% throughput)

20.1 W

Typical power consumption (30% of traffic load)

·         Tested according to ATIS standard

·         EEE enabled

·         No PoE power consumption

15.2 W

Operating temperature

0°C to 45°C (32°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.)

Short-term operating temperature

-5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5906 ft.)

Storage temperature

-40°C to +70°C (-40°F to +158°F)

Noise under normal temperature (27°C, sound power)

Noise-free (no fans)

Relative humidity

5% to 95%, noncondensing

Operating altitude

0-5000 m (0-16404 ft.)

Certification

EMC certification

Safety certification

Manufacturing certification
