| Detail: | S5731S-S48T4X Bundle(48*10/100/1000BASE-T ports, 4*10GE SFP+ ports, 1*AC power) |
| Model: | S5731S-S48T4X-A (02353AJC/02353AJC-003) |
| Condition: | Factory Sealed New |
| Related: | Huawei CloudEngine Switch S5731S-S48P4X-A (02353AJJ/-001/-003) Huawei CloudEngine Switch S5731S-S24P4X-A (02353AHY/-001/-003) Huawei CloudEngine Switch S5731S-S24T4X-A (02353AHV/02353AHV-001) |
| Warranty: |
3 Years-Warranty
100% Money-back
Free After-Sales Service
|
| Shipping: |
Air Shipping to
United States
, Most Customers Receive during 5-7 Days
?
If you finish the payment today,
your order will arrive within the estimated delivery time. |
| Ships to:
16.0
|
2-7 Days
US$
|
| Payment: |
More
|
The Huawei CloudEngine S5731S-S series switches are standard gigabit access switches tailored for the channel distribution market, with all-GE electrical downlink ports and fixed 10 GE uplink ports. CloudEngine S5731S-S series switches are next-generation gigabit access switches. Built on Huawei's unified Versatile Routing Platform (VRP), CloudEngine S5731S-S switches provide enhanced Layer 3 features, simple O&M, Intelligent Stack (iStack), flexible Ethernet networking, and mature IPv6 features. These feature-rich switches are widely used in scenarios such as enterprise campus access and aggregation, as well as data center access.
Model | S5731S-S48T4X-A |
Part Number | 02353AJC/02353AJC-003 |
Memory (RAM) | 2 GB |
Flash memory | 1 GB in total. To view the available flash memory size, run the display version command. |
PoE | Not supported |
Dimensions (H x W x D) | Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.5 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 43.6 mm x 442.0 mm x 448.0 mm (1.72 in. x 17.4 in. x 17.7 in.) |
Weight (with packaging) | 9.5 kg (20.94 lb) |
① | Forty-eight 10/100/1000BASE-T ports |
② | Four 10GE SFP+ ports |
③ | One console port |
④ | One ETH management port |
⑤ | One USB port |
⑥ | One PNP button |

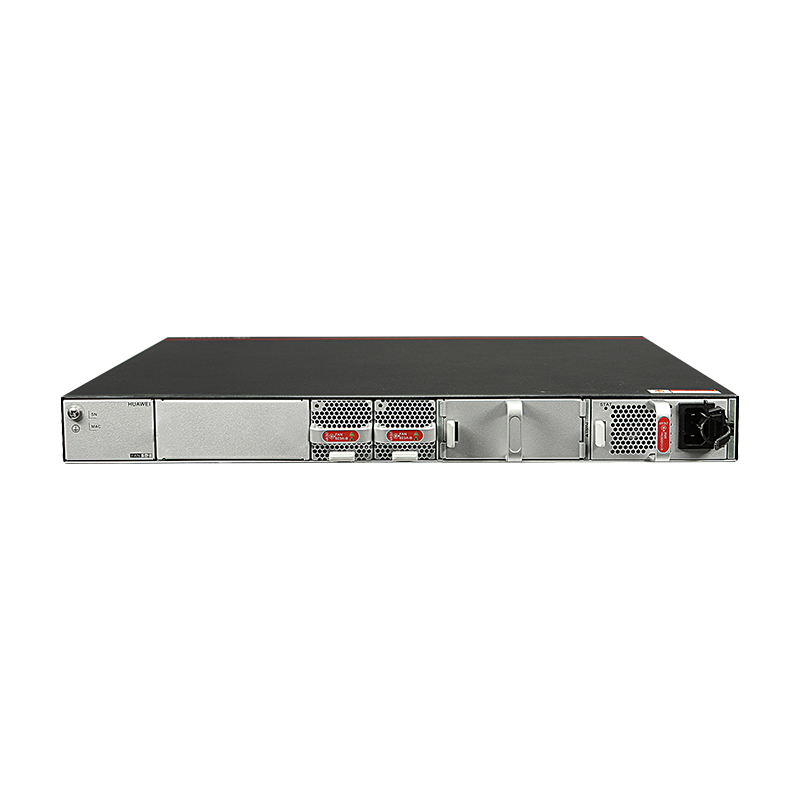

⑦ | Ground screw |
⑧ | Fan module slot 1 |
⑨ | Fan module slot 2 |
⑩ | Power module slot 1 |
⑪ | Power module slot 2 |
Models | Descriptions |
PAC600S12-CB | 600W AC Power Module(Back to Front, Power panel side exhaust) |
Optical Transceiver,eSFP,GE,Multi-mode Module(850nm,0.55km,LC) | |
Optical Transceiver,eSFP,GE,Single-mode Module(1550nm,40km,LC) | |
Optical Transceiver,eSFP,GE,Single-mode Module(1310nm,10km,LC) | |
SFP-GE-ZBXU1 | Optical Transceiver,eSFP,GE,BiDi Single-mode Module(1490nm(Tx)/1570nm(Rx),80km,LC) |
Optical Transceiver,eSFP,GE,BIDI Single-mode Module(TX1490/RX1310,10km,LC) | |
SFP-GE-ZBXD1 | Optical Transceiver,eSFP,GE,BIDI Single-mode Module(1570nm(Tx)/1490nm(Rx),80km,LC) |
Optical Transceiver,eSFP,GE,BIDI Single-mode Module(TX1310/RX1490,40km,LC) | |
Optical Transceiver,eSFP,GE,BIDI Single-mode Module(TX1310/RX1490,10km,LC) | |
Optical Transceiver,eSFP,GE,BIDI Single-mode Module(TX1490/RX1310,40km,LC) | |
1000Base,BIDI Optical Transceiver,SFP,GE,Single-mode Module(TX1490nm/RX1310nm,10km,SC) | |
Optical Transceiver,SFP+,10G,Single-mode Module(1310nm,1.4km,LC) | |
10GBase-USR Optical Transceiver,SFP+,10G,Multi-mode Module(850nm,0.1km,LC) | |
Electrical Transceiver,SFP,GE,Electrical Interface Module(100m,RJ45) | |
Optical Transceiver,SFP+,10G,Multi-mode Module(850nm,0.3km,LC) | |
Optical Transceiver,SFP+,10G,Single-mode Module(1310nm,10km,LC) | |
10GBase,BIDI Optical Transceiver,SFP+,10G,Single-mode Module(TX1270nm/RX1330nm,10km,LC) | |
SFP-10G-ER-1310 | Optical Transceiver,SFP+,10G,Single-mode Module(1310nm,40km,LC) |
SFP-10G-ER-SM1330-BIDI | Optical Transceiver,SFP+,10G,BIDI Single-mode Module(TX 1330nm/RX 1270nm,40km,LC) |
10GBase,BIDI Optical Transceiver,SFP+,10G,Single-mode Module(TX1330nm/RX1270nm,10km,LC) | |
10GBase-ZR Optical Transceiver,SFP+,10G,Single-mode Module(1550nm,80km,LC) | |
Optical Transceiver,SFP+,10G,Single-mode Module(1550nm,40km,LC) |
Product Code | ||||
Memory (RAM) | 4 GB | 4 GB | 4 GB | 4 GB |
Flash | 1 GB in total. To view the available flash memory size, run the display version command. | 1 GB in total. To view the available flash memory size, run the display version command. | 1 GB in total. To view the available flash memory size, run the display version command. | 1 GB in total. To view the available flash memory size, run the display version command. |
Mean time between failures (MTBF) | 57.21 years | 57.73 years | 54.96 years | 55.31 years |
Stack ports | 10GE SFP+ ports on the front panel | 10GE SFP+ ports on the front panel | 10GE SFP+ ports on the front panel | 10GE SFP+ ports on the front panel |
RTC | Supported | Supported | Supported | Supported |
RPS | Not supported | Not supported | Not supported | Not supported |
PoE | Supported | Not supported | Supported | Not supported |
Maximum power consumption (100% throughput, full speed of fans) | • Not providing the PoE function: 121 W • 100% PoE loads: 977 W (PoE: 720 W) | 114 W | • Not providing the PoE function: 132 W • 100% PoE loads: 1750 W (PoE: 1440 W) | 124 W |
Typical power consumption (30% of traffic load, tested according to ATIS standard) | 95 W | 88 W | 108 W | 101 W |
Do you have any question about the S5731S-S48T4X-A 02353AJC/02353AJC-003?
Contact us now via [email protected]
Part Number | 02353AJC/02353AJC-003 |
Model | S5731S-S48T4X-A |
Memory (RAM) | 2 GB |
Flash | 1 GB in total. To view the available flash memory size, run the display version command. |
Mean time between failures (MTBF) | 55.31 years |
Mean time to repair (MTTR) | 2 hours |
Availability | > 0.99999 |
Service port surge protection | Common mode: ±6 kV |
Power supply surge protection | Using AC power modules: ±6 kV in differential mode, ±6 kV in common mode Using DC power modules: ±2 kV in differential mode, ±4 kV in common mode |
Dimensions (H x W x D) | Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.5 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 43.6 mm x 442.0 mm x 448.0 mm (1.72 in. x 17.4 in. x 17.7 in.) |
Weight (with packaging) | 9.5 kg (20.94 lb) |
Stack ports | 10GE SFP+ ports on the front panel |
RTC | Supported |
RPS | Not supported |
PoE | Not supported |
Rated voltage range | AC input: 100 V AC to 240 V AC, 50/60 Hz High-Voltage DC input: 240 V DC DC input: -48 V DC to -60 V DC |
Maximum voltage range | AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz High-Voltage DC input: 190 V DC to 290 V DC DC input: -38.4 V DC to -72 V DC |
Maximum power consumption (100% throughput, full speed of fans) | 124 W |
Typical power consumption (30% of traffic load, tested according to ATIS standard) | 101 W |
Operating temperature | -5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.) |
Storage temperature | -40°C to +70°C (-40°F to +158°F) |
Noise under normal temperature (27°C, sound power) | < 57.5 dB(A) |
Relative humidity | 5% to 95%, noncondensing |
Operating altitude | 0-5000 m (0-16404 ft.) |
Certification | EMC certification Safety certification Manufacturing certification |
