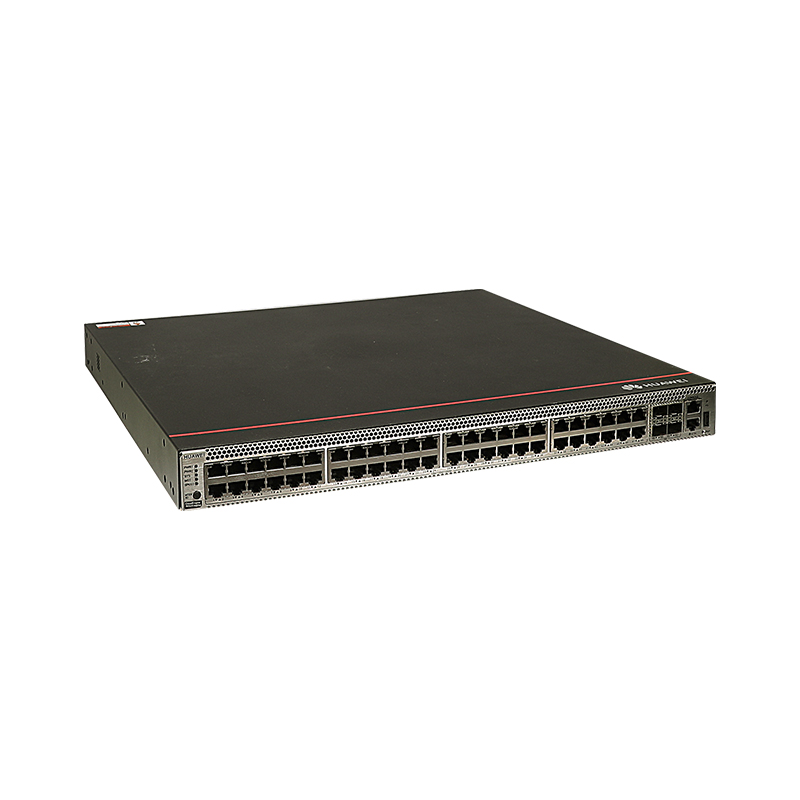

Huawei CloudEngine Switch S5731S-H48T4XC-A (02352YRF/-003/-005)

The CloudEngine S5731-H series switches are the next-generation intelligent gigabit fixed switches developed by Huawei. The CloudEngine S5731-H builds on Huawei's unified Versatile Routing Platform (VRP) and boasts various IDN features.

Quick Specification:

Model	S5731S-H48T4XC-A
Part Number	02352YRF/02352YRF -003/02352YRF-005
Memory (RAM)	4 GB
Flash memory	1 GB in total. To view the available flash memory size, run the display version command.
PoE	Not supported
Dimensions without packaging (H x W x D) [mm(in.)]	Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.40 in. x 16.54 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 448.0 mm (1.72 in. x 17.40 in. x 17.64 in.)
Dimensions with packaging (H x W x D) [mm(in.)]	185 mm x 650 mm x 550 mm (7.28 in. x 25.59 in. x 21.65 in.)
Weight without packaging [kg(lb)]	6.2 (13.67)
Weight with packaging [kg(lb)]	9.5

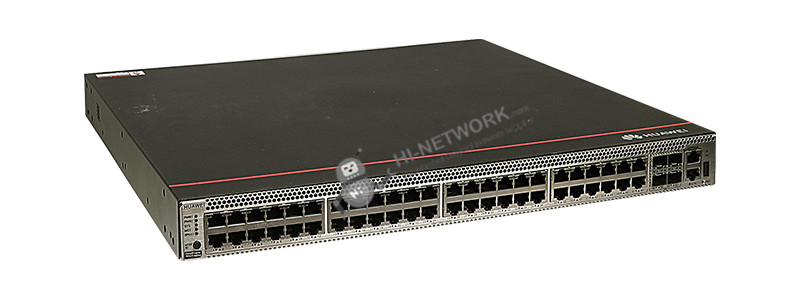

The Front Panel:

s5731s-h48t4xc-a-front-datasheet

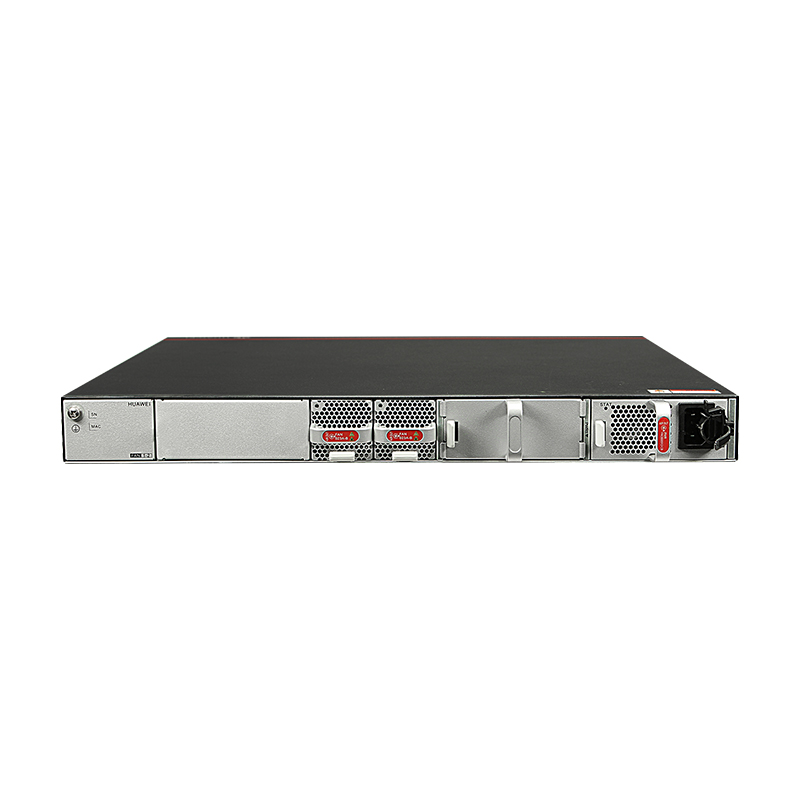

The Back Panel:

s5731s-h48t4xc-a-back-datasheet

The Accessories for S5731S-H48T4XC-A

Recommended elements for the S5731S-H48T4XC-A:

Models	Descriptions
PAC600S12-CB	600W AC Power Module(Back to Front, Power panel side exhaust)
ES5D21Q02Q00	2-port 40GE QSFP+ interface card
ES5D21X08T00	8-port 10GE Base-T interface card
eSFP-GE-SX-MM850	Optical Transceiver,eSFP,GE,Multi-mode Module(850nm,0.55km,LC)
S-SFP-GE-LH40-SM1550	Optical Transceiver,eSFP,GE,Single-mode Module(1550nm,40km,LC)
SFP-GE-LX-SM1310	Optical Transceiver,eSFP,GE,Single-mode Module(1310nm,10km,LC)
SFP-GE-ZBXU1	Optical Transceiver,eSFP,GE,BiDi Single-mode Module(1490nm(Tx)/1570nm(Rx),80km,LC)
LE2MGSC40DE0	Optical Transceiver,eSFP,GE,BIDI Single-mode Module(TX1310/RX1490,40km,LC)
LE2MGSC40ED0	Optical Transceiver,eSFP,GE,BIDI Single-mode Module(TX1490/RX1310,40km,LC)
SFP-GE-LX-SM1310-BIDI	Optical Transceiver,eSFP,GE,BIDI Single-mode Module(TX1310/RX1490,10km,LC)
SFP-10G-iLR	Optical Transceiver,SFP+,10G,Single-mode Module(1310nm,1.4km,LC)
CWDM-SFPGE-1611	CWDM Optical Transceiver,eSFP,2.5G,Single-mode Module(1611nm,80km,LC)
SFP-10G-USR	10GBase-USR Optical Transceiver,SFP+,10G,Multi-mode Module(850nm,0.1km,LC)
OMXD30000	Optical Transceiver,SFP+,10G,Multi-mode Module(850nm,0.3km,LC)
SFP-1000BaseT	Electrical Transceiver,SFP,GE,Electrical Interface Module(100m,RJ45)
OSX010000	Optical Transceiver,SFP+,10G,Single-mode Module(1310nm,10km,LC)

Compare to Similar Items:

Product Code	S5731S-H24T4XC-A	S5731S-H48T4XC-A
Memory (RAM)	4 GB	4 GB
Flash	1 GB in total. To view the available flash memory size, run the display version command.	1 GB in total. To view the available flash memory size, run the display version command.
Mean time between failures (MTBF)	57.73 years	55.31 years
Mean time to repair (MTTR)	2 hours	2 hours
Availability	> 0.99999	> 0.99999
Service port surge protection	Common mode: ±6 kV	Common mode: ±6 kV
Stack ports	10GE SFP+ ports on the front panel, or ports on the rear card	10GE SFP+ ports on the front panel, or ports on the rear card
RTC	Supported	Supported
RPS	Not supported	Not supported
PoE	Not supported	Not supported
Maximum power consumption (100% throughput, full speed of fans)	114 W (without card)	124 W (without card)
Typical power consumption (30% of traffic load, tested according to ATIS standard)	88 W (without card)	101 W (without card)
